Installation Instructions
B290
Airis Wall Sconce 20-6460 Page 3 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
28295
To Assemble & Install Screen Option (Figures 4 & 5)
Component Parts
C Fixture
I
Brass Screw
J Top Ring
L Retaining Ring
M Mounting Bracket
N Cap Screw (2)
P Mesh Screen
1. Slide retaining ring (L) over mesh screen (P) aligning
holes with holes in mesh screen.
2. Slip cap screw (N) thru hole in retaining ring (L) (both
sides).
3. Align mounting bracket (M) with holes in retaining
ring (L).
4. Thread cap screws (N) into mounting bracket (M) and
tighten (both sides).
5. Slide mesh screen (P) into top ring (J) and align tab on
mounting bracket (M) with the mounting bracket
window in the fixture (C).
6. When mesh screen (P) is tight against fixture (C)
tighten brass screw (I) from the bottom of the fixture.
See Figure 5.
7. Restore electricity at the main breaker.
(continued)

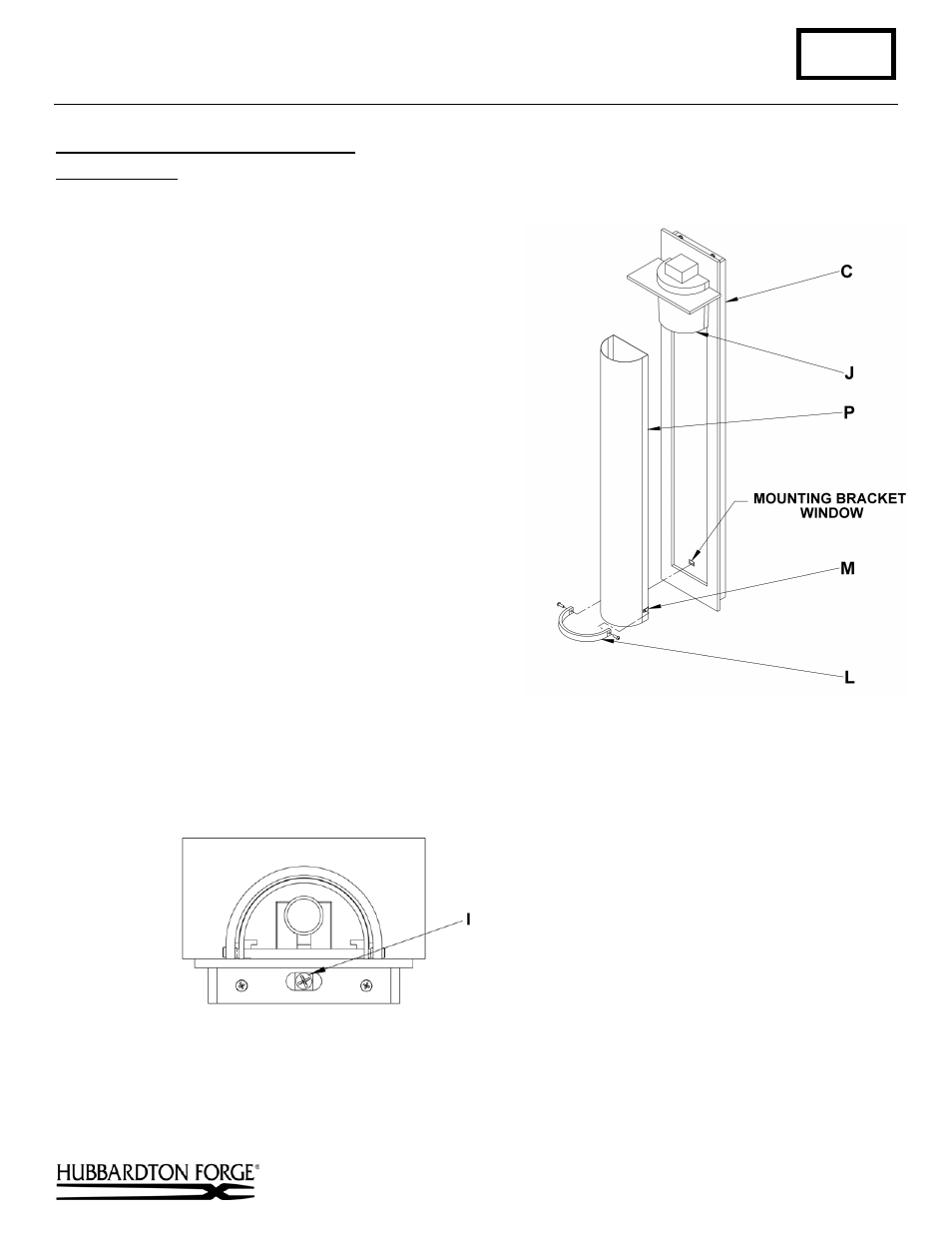

(Figure 5)
(Figure 4)
