Installation Instructions
B290
Airis Wall Sconce 20-6460 Page 2 of 4
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735
28295
To Assemble & Install Glass Option (Figures 2 & 3)
Component Parts
C Fixture
I
Brass Screw
J Top Ring
K Glass
L
Retaining Ring
M Mounting Bracket
N Cap Screw (2)
1. Slide retaining ring (L) over glass (K) aligning holes with
slots in glass.
2. Slip cap screw (N) thru hole in retaining ring (L) (both sides).
3. Align mounting bracket (M) with holes in retaining ring (L).
4. Thread cap screws (N) into mounting bracket (M) and
tighten.
5. Slide glass (K) into top ring (J) and align tab on mounting
bracket (M) with the mounting bracket window in the
fixture (C).
6. When glass (K) is tight against fixture (C) tighten brass
screw (I) from the bottom of the fixture. See Figure 3.
7. Restore electricity at the main breaker.
(continued)

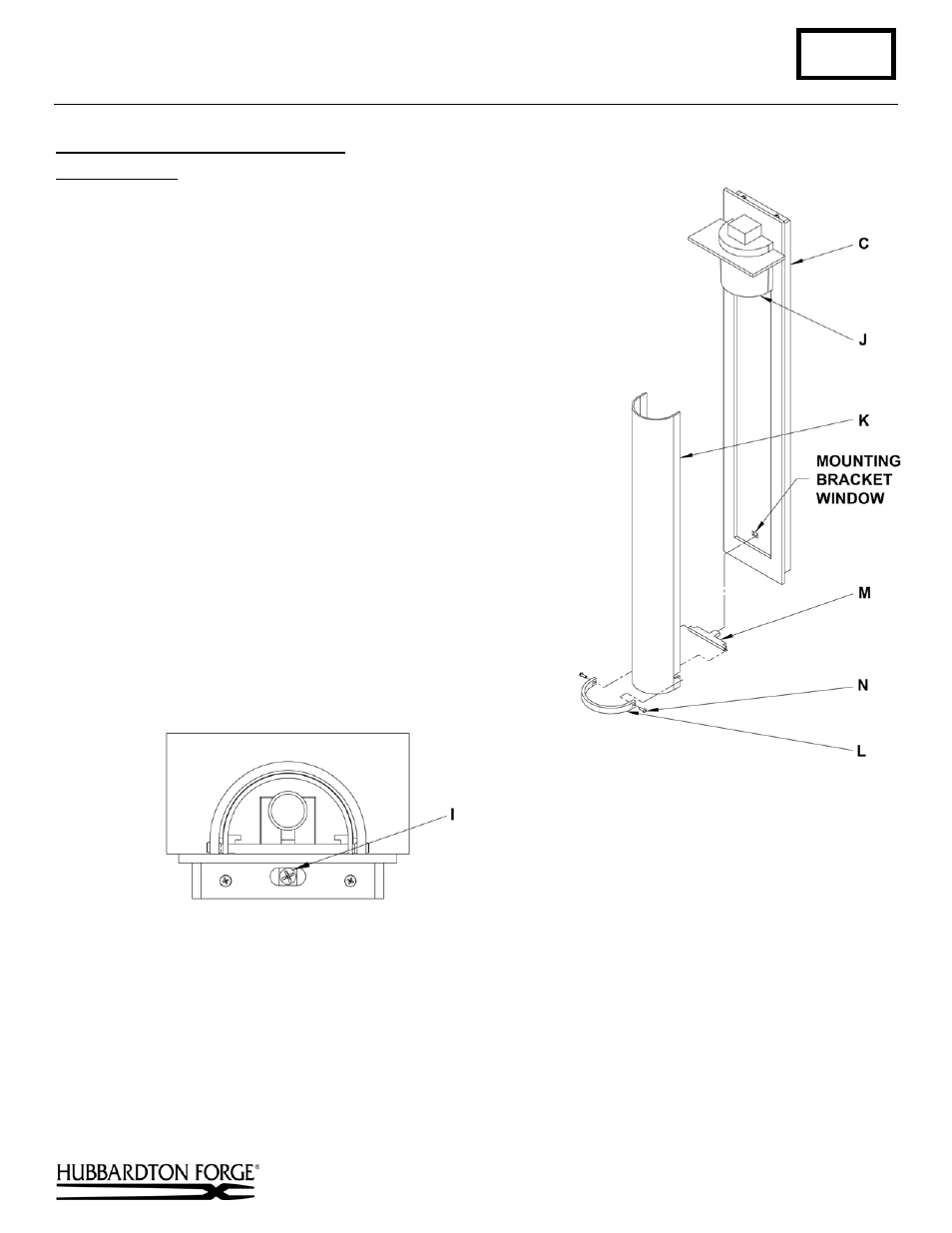

(Figure 2)
(Figure 3)
