To Install Forged Plate Option (Figure 5)
Component Parts
C Fixture
H Screw
I
Top Ring
O Retainer (two types are supplied; flat one is used for plate)
P Retainer Set Screw
Q Forged Plate Assembly
Note: Forged plate is for Indoor use only.
1. Install forged plate assembly (Q) into slot of retainer (O). See
Figure 6 for correct orientation of plate.
2. Make sure forged plate assembly (O) is centered with retainer
and tighten set screw (P) from back.
3. Slip ring at the top for the forged plate assembly (Q) so it rests
inside the top ring (I).
4. Raise both pieces so the top ring (I) engages with the upper
area of the fixture (C).
5. Insert retainer (O) through the window area of the fixture (C).
6. Tighten screw (H) to raise retainer (O) until top ring (I) is
tight. Be careful not to over tighten.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.

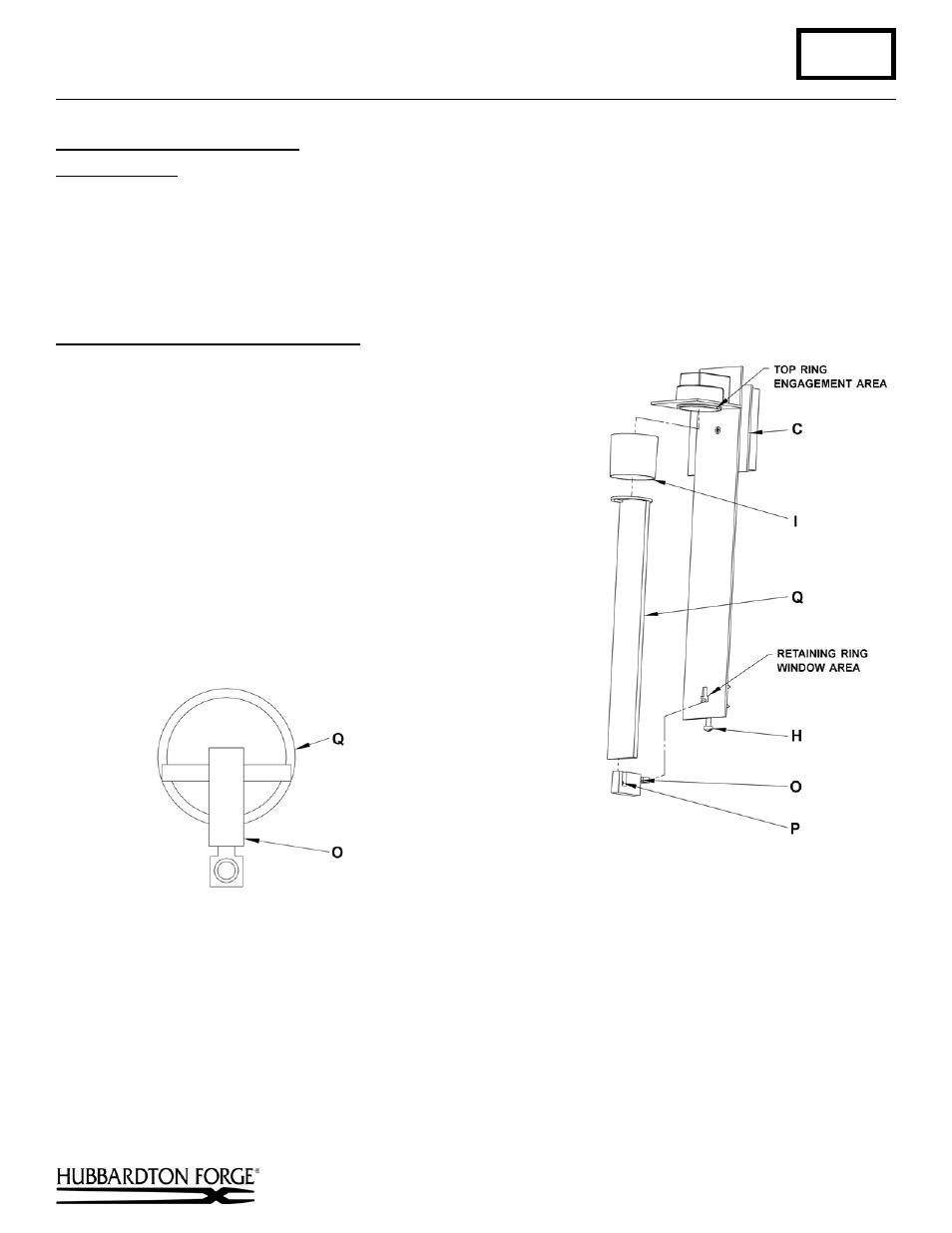

(Figure 5)
