Installation Instructions
B289
Airis Sconce 20-6450 Page 2 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 28294

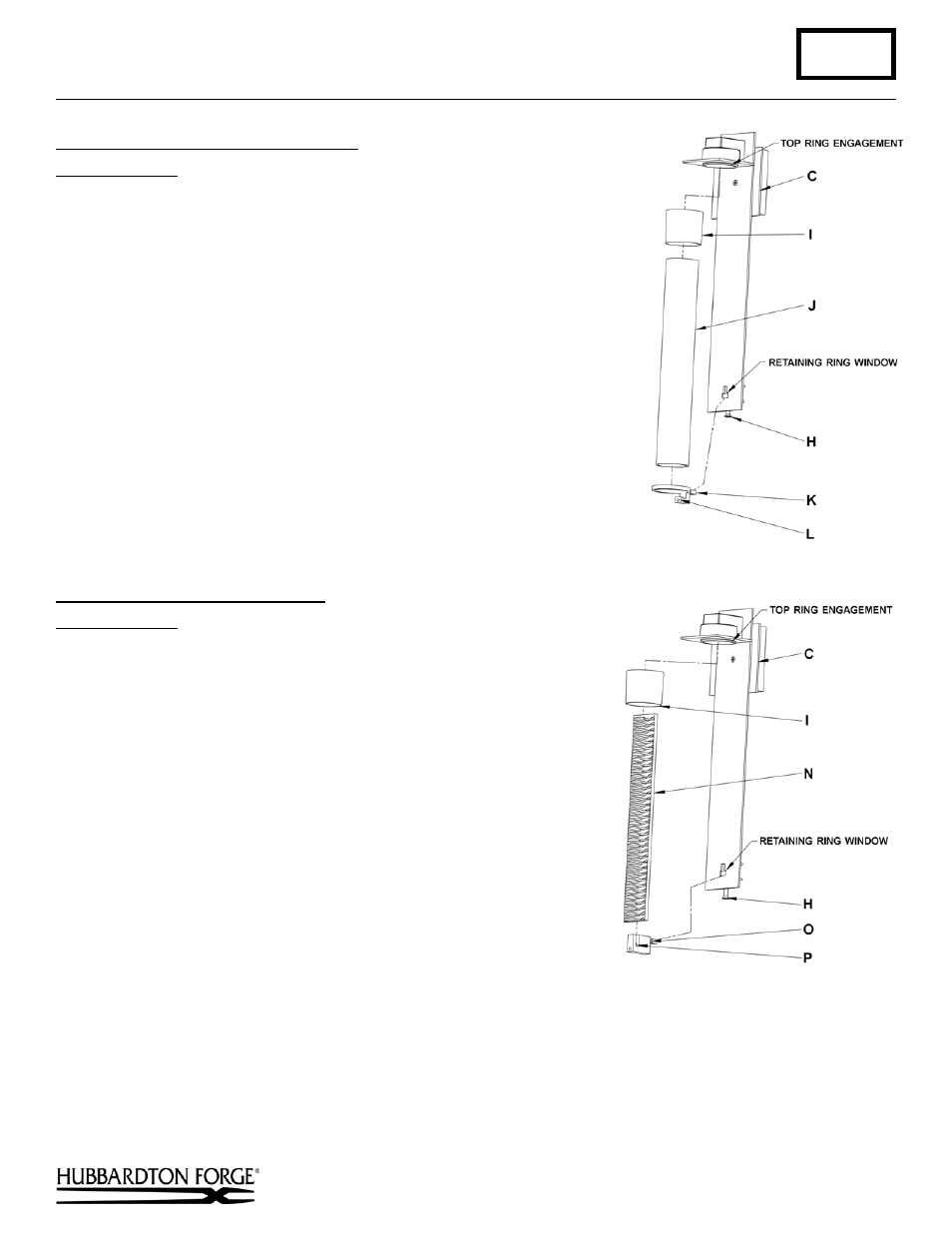

To Install Glass or Mesh Tube Option (Figure 3)
Component Parts
C Fixture
H Screw
I
Top Ring
J Glass or Mesh Tube
K Retaining Ring (two types are supplied; round one is used for
glass/mesh tube)
L Set Screw
1. Slip top ring (I) over top of glass/mesh tube (J).
2. Raise both pieces so the top ring (I) engages with the upper area of the
fixture (C).
3. Slip retaining ring (K) onto bottom of glass/mesh tube (J) and insert
tab through the window area of the fixture (C).
4. Tighten screw (H) to raise retaining ring (K) until it is tight against
bottom of glass/mesh tube (J). It may be necessary to adjust the set
screw (L) while tightening the brass screw (H) to level. Be careful not
to over tighten.
To Install Aluminum Plate Option (Figure 4)
Component Parts
C Fixture
H Screw
I
Top Ring
N Aluminum Plate
O Retainer (two types are supplied; flat one is used for plate)
P Retainer Set Screw
1. Install aluminum plate (N) into slot of retainer (O).
2. Make sure aluminum plate (O) is centered with retainer and
tighten set screw (P) from back.
3. Slip aluminum plate (N) inside top ring (I) so it rests as far to the
back as it can.
4. Raise both pieces so the top ring (I) engages with the upper area
of the fixture (C).
5. Insert retainer (O) through the window area of the fixture (C).
6. Tighten screw (H) to raise retainer (O) until top ring (I) is tight.
Be careful not to over tighten.
(continued)
(Figure 3)
(Figure 4)
