Installation Instructions
B219
Axis Outdoor Sconce 30-6401 & 30-6403 Page 3 of 3
Hand-Forged, Vermont-Made Lighting and Accessories
154 Route 30 South, Castleton, Vermont 05735 26360 Rev A

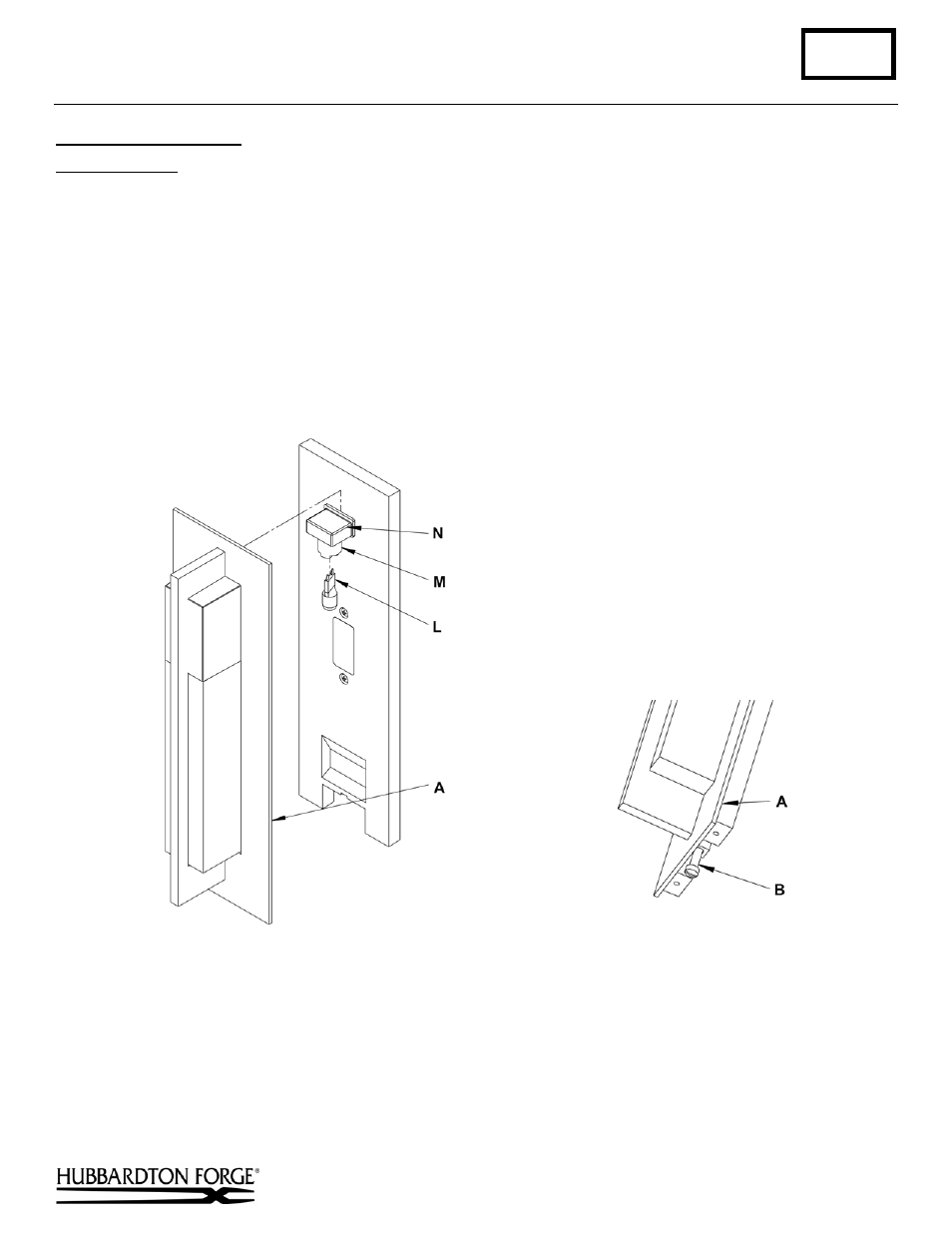

To Install Fixture Front (Figures 8 & 9)
Component Parts
A Fixture Front
B Screw
L Bulb
(Included)
M Socket
N Socket
Housing
1. Install light bulb (L) into socket (M). Be careful not to touch bulb with bare hands; oil from the hands will
dramatically reduce bulb life.
2. Slip fixture front (A) onto socket housing (N).
3. Tighten screw (B) to lock fixture front (A) in place. Be careful not to over tighten (Figure 9).
4. Restore electricity at the main breaker.
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased
this product. We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
(Figure 8) (Figure 9)
