Hubbardton Forge 205960 User Manual
B307, Installation instructions

H U B B A R D T O N F O R G E . C O M
hand-forged, vermont-made lighting and accessories
154 RT. 30 SOUTH
•
CASTLETON, VERMONT 05735
All designs and images ©1989-2013 Hubbardton Forge
®
. All rights reserved.
30072 Rev -
Installation Instructions
If you need further assistance, or find that you are missing any parts, please contact the dealer from which you purchased this product.
We hope you enjoy your fixture!
* Hubbardton Forge will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
Please Note: This fixture is designed to be mounted on a standard wall
surface and may not be suitable for all applications. If installing in a non-
wood frame application, we recommend consulting a qualified builder
or electrician.
To Prepare Fixture

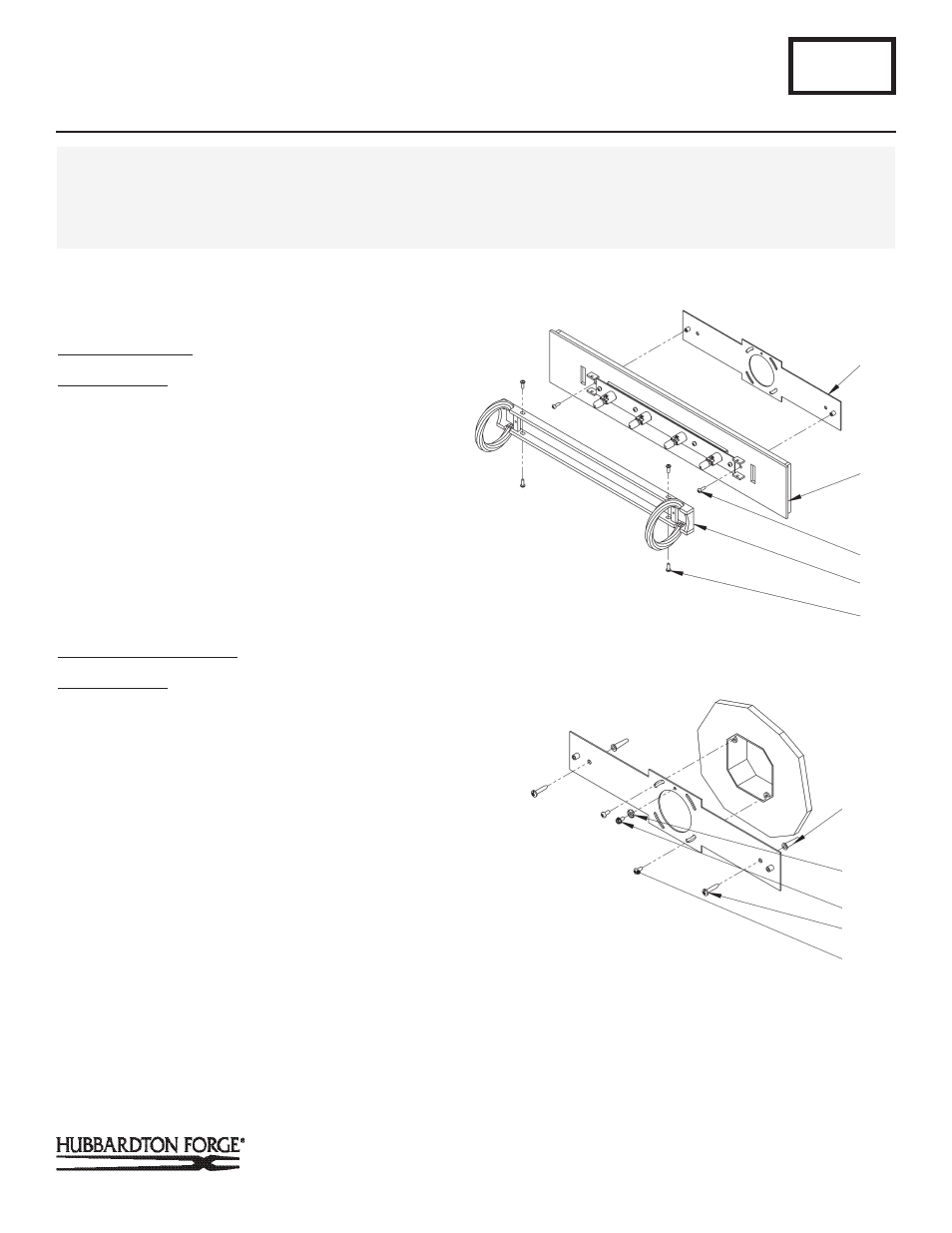

(Figure 1)
Component Parts
A Decorative Front
B Fixture Body
C Wall Mount Bracket
D #8 Black Pan Head Screws (6)
L #8 Pan Head Screws w/ lock washer
1. Carefully unpack the fixture from the carton.
2. Remove pan head screws (D) from Fixture Body (B) and
remove decorative front (A). Set aside for later use.
3. Remove pan head screws (L) from fixture body and remove
wall mount bracket. Set aside for later use.
To Mount Fixture to Wall
(Figures 2 & 3)
Component Parts
B Fixture Body
C Wall Mount Bracket
E Anchors (2)
F # 10 Screws (2)
G Green Ground Screw
H Cupped Washer
CAUTION: BE SURE POWER IS OFF AT THE MAIN BREAKER BOX
PRIOR TO INSTALLATION.
1. Center the wall mount bracket (C) over the electrical box
being sure to hold it plum and level. With a pencil, mark the
location of all mounting holes in the wall mount bracket on
the wall behind.
IMPORTANT: Wall mount bracket must be secured to a solidly
mounted electrical box and/or a framing member in at least
two locations. Do not depend on drywall anchors alone to
support this fixture. If in doubt, contact a qualified electrician.
B307
Cavo Sconce 205960
Page 1 of 3
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH AND
PROPERTY DAMAGE. We recommend installation by a licensed electrician. This product must be installed in accordance with
applicable installation code(s), by a person familiar with the construction and operation of the product and the hazards involved.*
Caution: Do not exceed maximum wattage noted on fixture. Use only recommended bulbs with fixture.
(Figure 1)
(Continued)
(Figure 2)
E
C
B
L
A
D
H
G
F
MACHINE
SCREWS
(NOT
PROVIDED)
