3. Plug the power cord into the AC power connector on the back of the

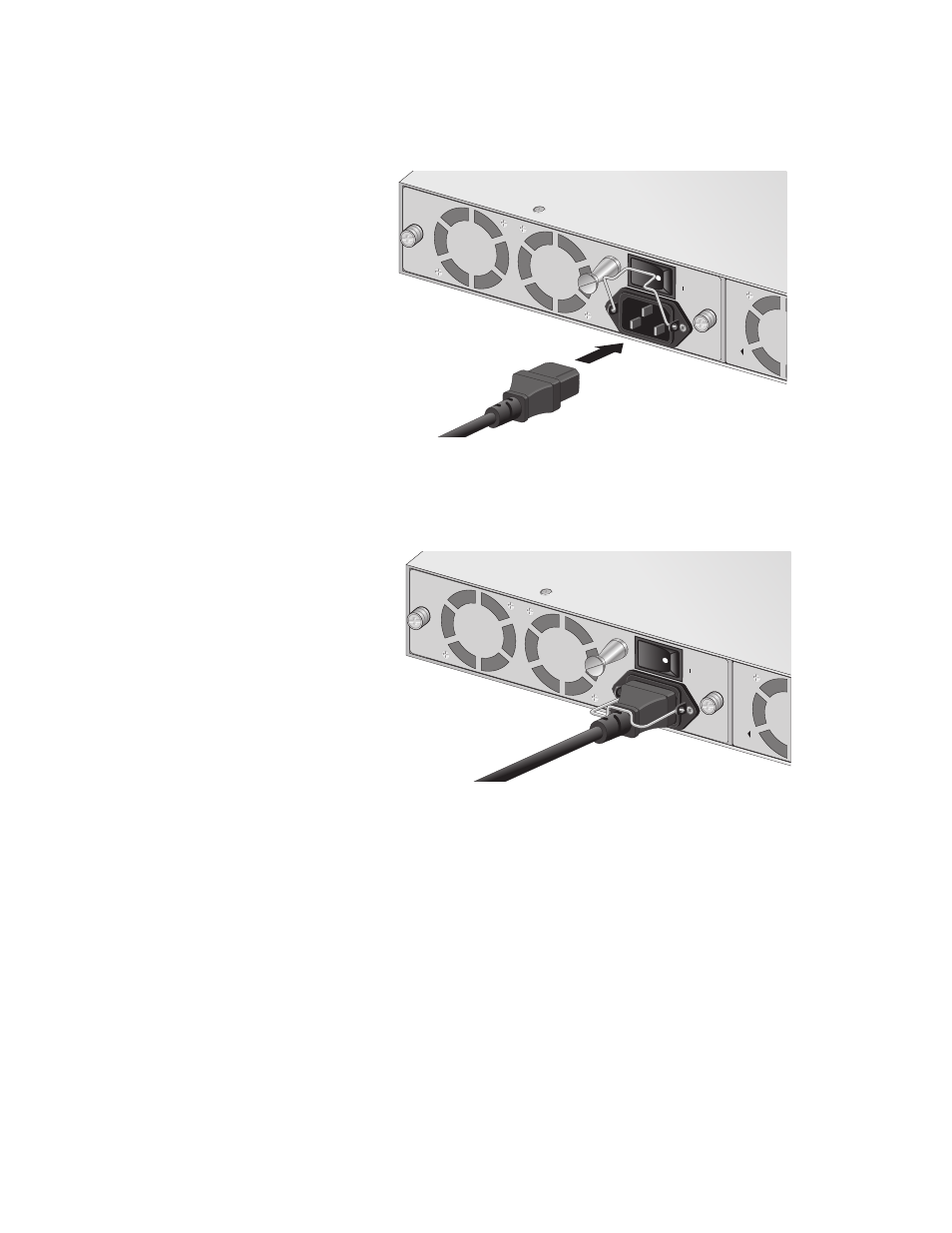

chassis, as shown in Figure 37.
Figure 37. Plugging in the AC Power Cord
4. Secure the cord by lowering the power cord retaining clip, as shown in
Figure 38.
Figure 38. Securing the Power Cord with the Retaining Clip
5. Plug the other end of the power cord into a wall outlet.
