AT-LX3800U Multi-Service Transport System Installation and Maintenance Guide
57
Cabling the Chassis
Perform the following procedures to connect the fiber optic cables to the
tributary ports of the line cards and the line (WDM) ports of a device.
Connecting the
Fiber Optic
Cables to a Line
Card
To connect a fiber optic cable to a line card, perform the following
procedure:
1. Remove the dust plug from the SFP in the line card, as shown in
Figure 27.

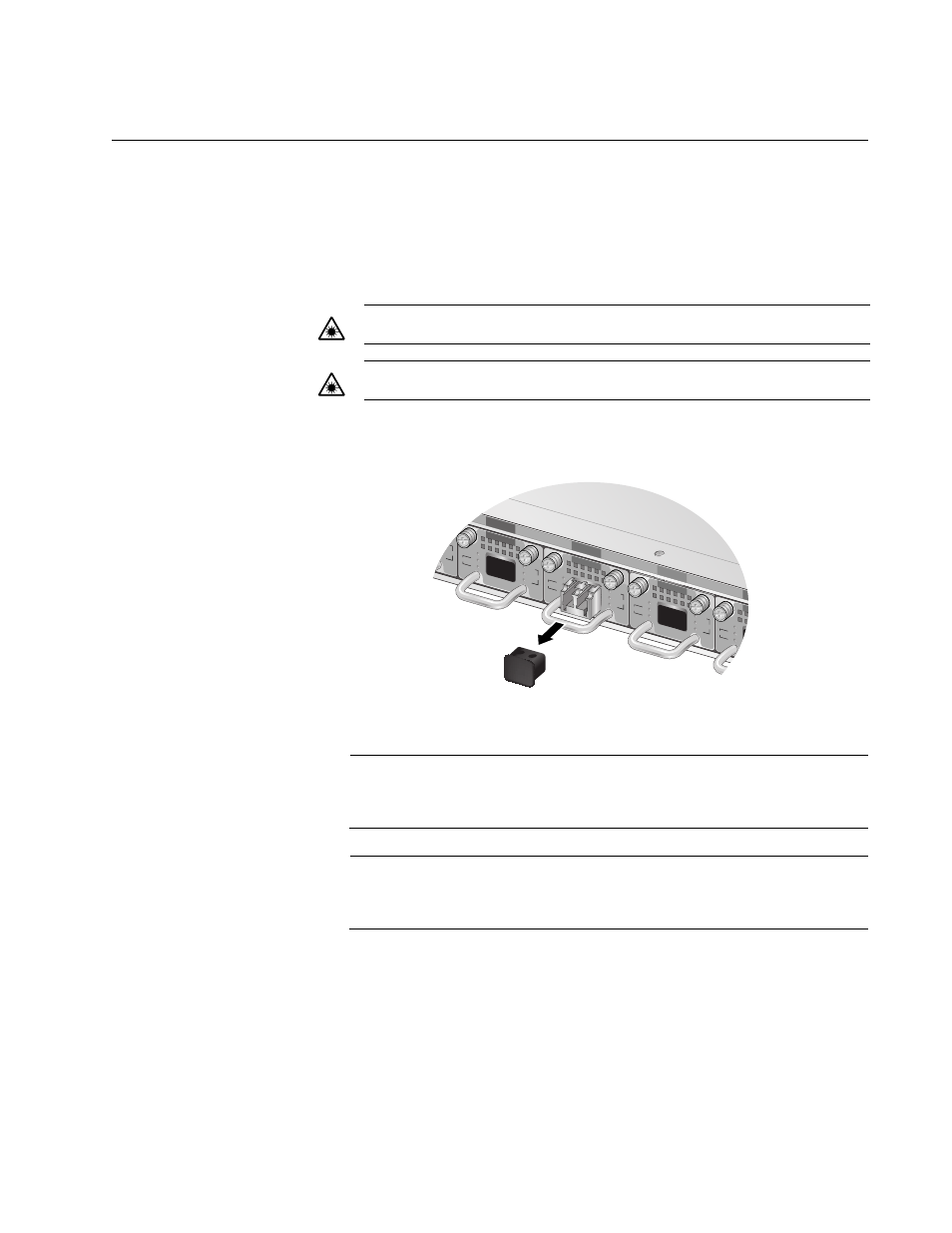

Figure 31. Removing the Dust Plug from the SFP
Note
For information about the proper cable type, refer to the installation
instructions you received with your SFP.
Note
Before you install the cable in SFP, verify that the optical power input
to the SFP is within the SFP transceiver’s dynamic range.
Warning: Class 1 Laser product.
1
Warning: Do not stare into the laser beam.
2
3
4
5
SFP
SYNC
TX
RX
LINE
RDY
TX
RX
TRIB
AT-LX3811/3
SFP
SYNC
TX
RX
LINE
RDY
TX
RX
TRIB
AT-LX3811/4
TRIB
SYNC
TX
RX
LINE
SFP
SYNC
TX
RX
LINE
RDY
TX
RX
TRIB
AT-LX3811/5
RDY
TX
RX
TRIB
AT
