Install the Chassis Install the Control Module
1-19
Telesyn x400 - Installation Guide (Installation of ATI 9400)

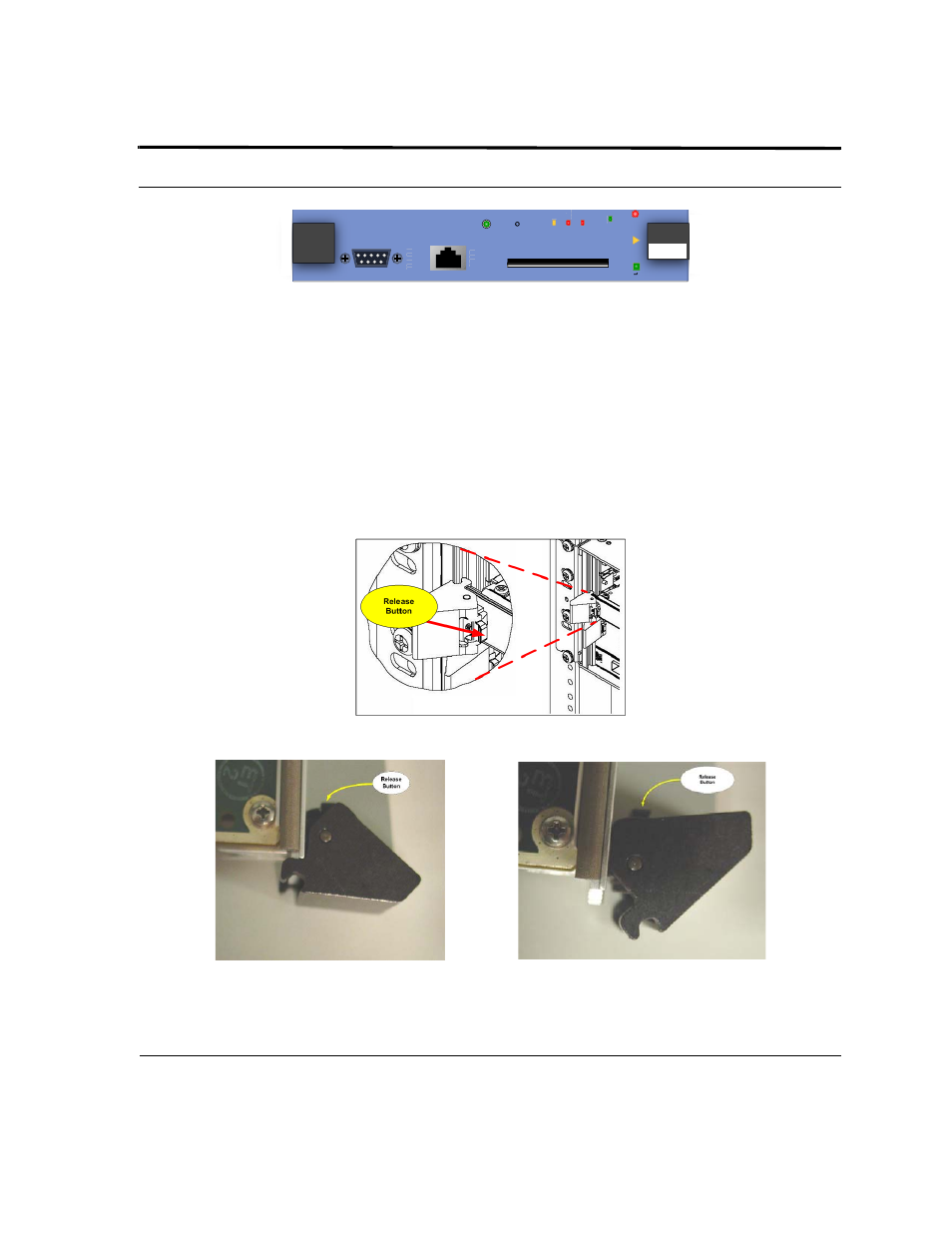

FIGURE 1-13 CFC24 Faceplate
3. Press the release button on the inside of the latches and push the latches out. (Refer to Figure 1-14.)
4. Locate the double slot (2 and 4) where the card is to be inserted.
5. While holding the latches/faceplate, slowly with a firm pressure push the card into the double slot until the
latches begin to engage the locking rail.
Note: A firm pressure is required to seat the card. The lock-latch does not assist in seating the card.
6. Close the latches until they lock into place.
FIGURE 1-14 Latch in the Out Position (Release Button has been Engaged)
FIGURE 1-15 Detail of the lock-latch in locked and then opened position
AC
T
CRIT AJOR INOR
CFC 24 TN-400-ATN-400-A
PULL
FAUL
T
INSRV
ACO'L
T
SW
ACT
CONSOLE
MGMT
