IX5-28GPX Installation Guide
99
4. Remove the dust cover from the transceiver, as shown in Figure 57 on
page 99.

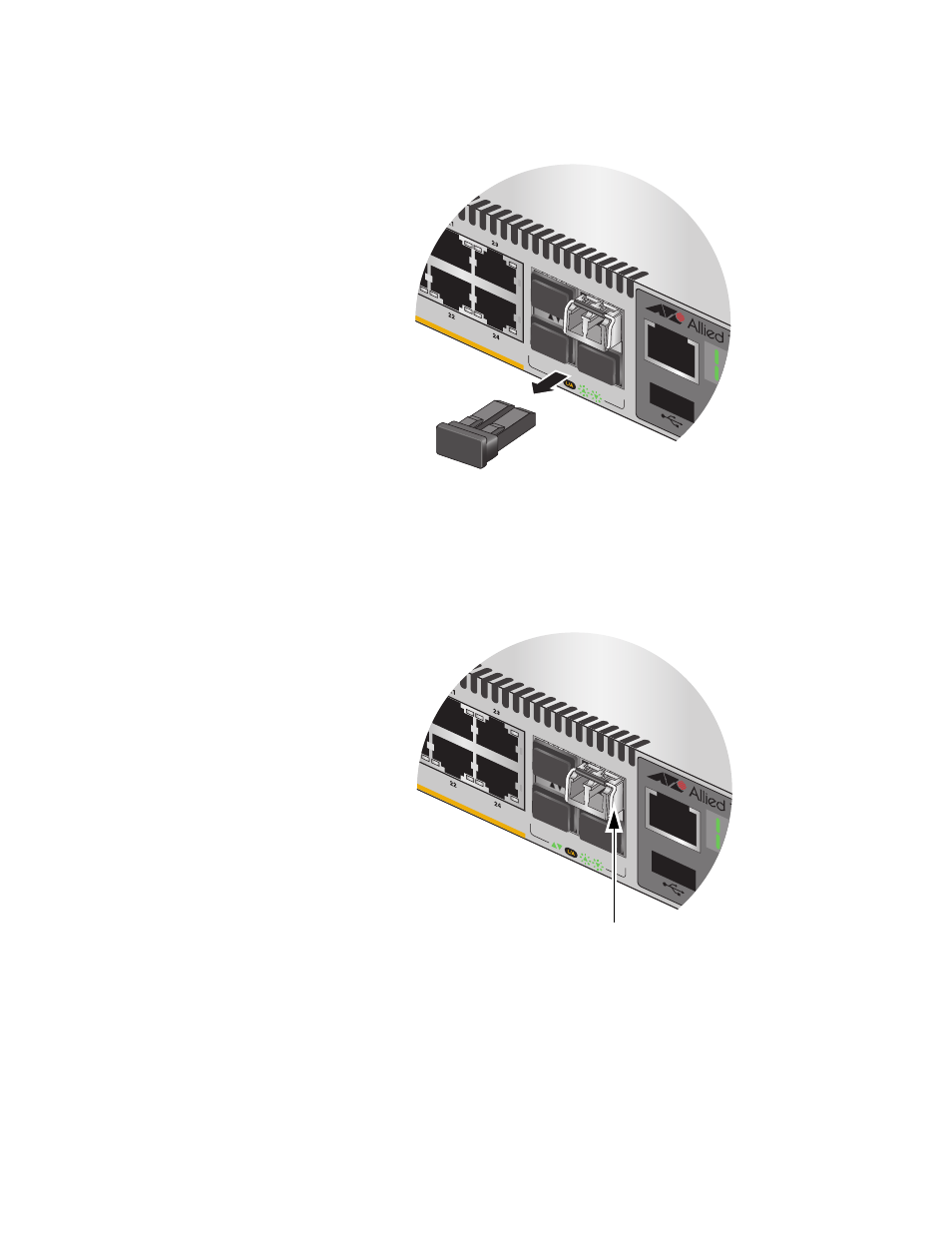

Figure 57. Removing the Dust Cover from a Stacking Transceiver
5. Verify the position of the handle on the transceiver. If the transceiver is
in the S1 slot, the handle should be in the upright position, as shown in
Figure 58. If the transceiver is in the S2 slot, the handle should be in
the down position.
Figure 58. Positioning the Handle in the Upright Position
S2/2
8
S1
/27
26
25
CON
SO
LE
SFP+
2689
S2/2
8
S1
/27
26
25
CON
SO
LE
SFP+
2690
SFP Handle
