Figure 53: removing the dust plug from the s2 slot – Allied Telesis AT-IX5-28GPX User Manual
Page 95
IX5-28GPX Installation Guide
95
5. Remove the dust cover from the S2 slot in the next switch in the stack
as shown in Figure 53 on page 95.
Note
The cable must crossover to different slots on the switches. The
stack will not work if you connect two S1 or S2 slots together.

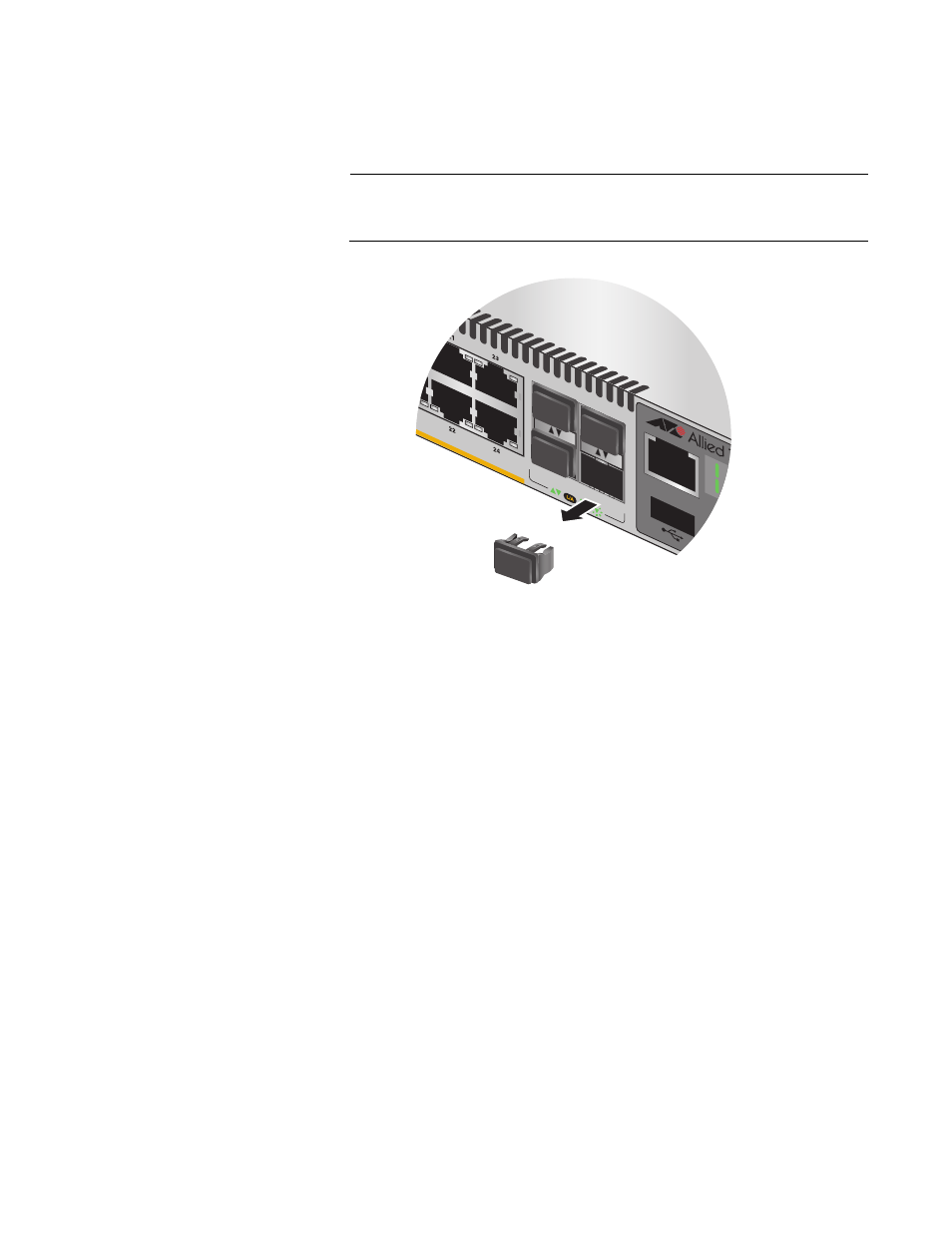

Figure 53. Removing the Dust Plug from the S2 Slot
6. Remove the dust cover from the connector on the other end of the
transceiver.
S2/2
8
S1
/27
26
25
CON
SO
LE
SFP+
2684
