Chapter 7: Cabling the Stacking Ports
98
3. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 56 on page 98.

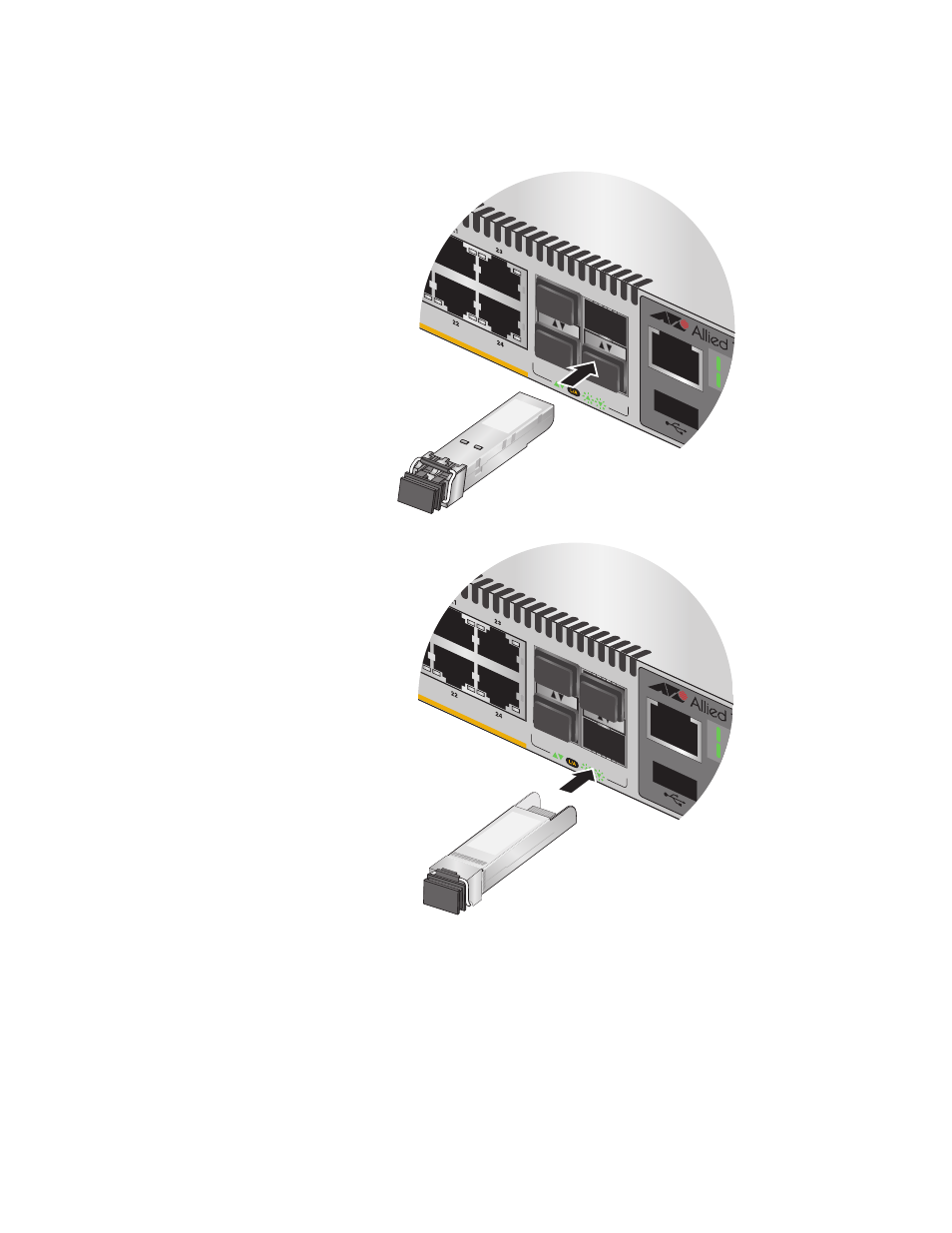

Figure 56. Installing the AT-StackOP/0.3 or AT-StackOP/9.0 Transceiver
