Page 94
Chapter 7: Cabling the Stacking Ports
94
4. Position the transceiver with the release tab on top and slide the
transceiver into the slot, as shown in Figure 52 on page 94.

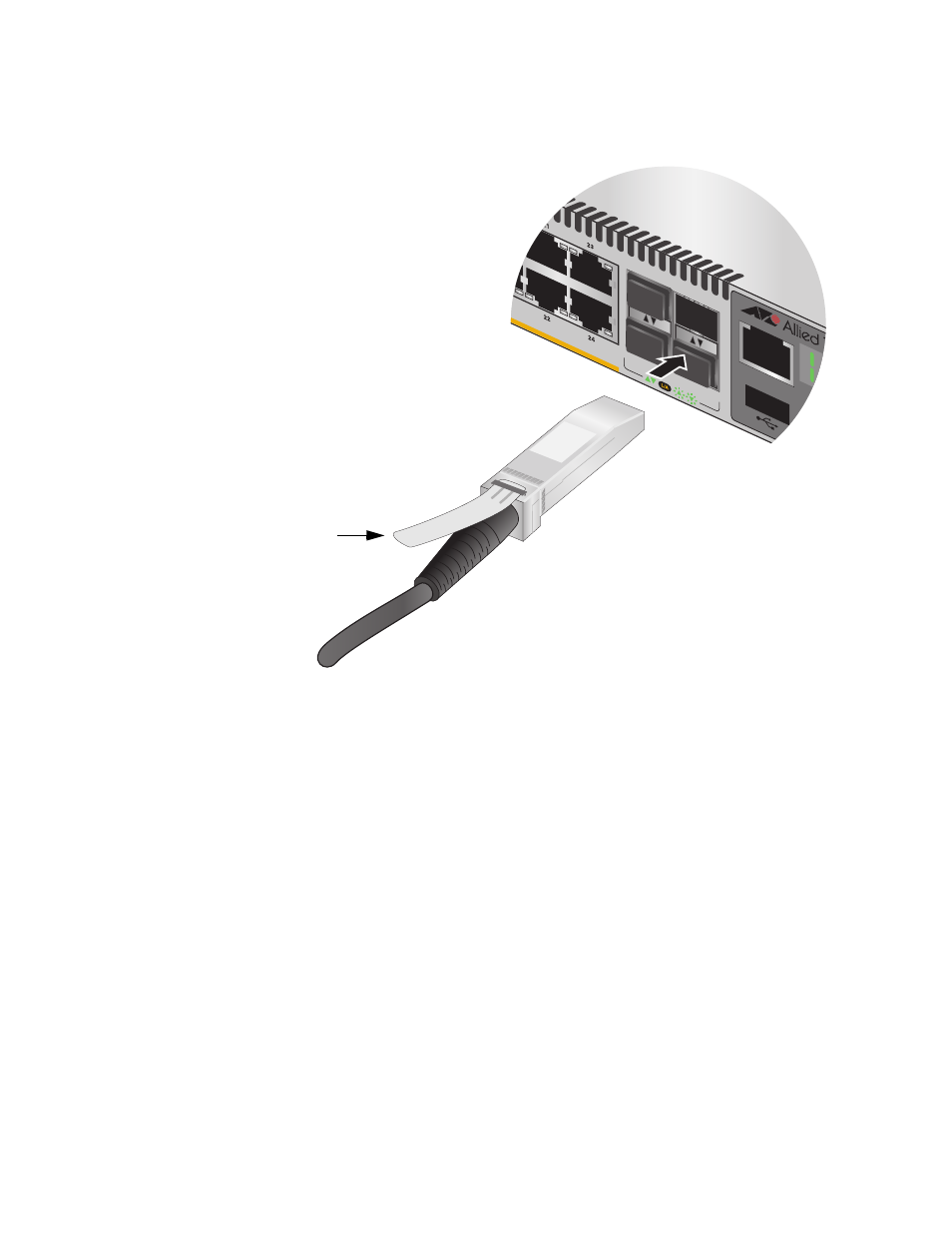

Figure 52. Installing the AT-StackXS/1.0 Transceiver in Slot S1
S2/2
8
S1
/27
26
25
CON
SO
LE
SFP+
2683
Release tab
