Adjustments

M414038

CE Marked Models

The loading door switch is factory adjusted to turn
off tumbler when the door is opened a maximum
of 3 inches (76.2 mm). If adjustment is needed, refer to
Figure 24 and follow these steps.

1. Start tumbler, following the operating

instructions which accompanied it.

2. Slowly open loading door. Cylinder and heating

system should stop when door is open 3 inches
(76.2 mm) maximum.

3. Slowly close loading door while depressing start

switch or pad. Tumbler should start before
loading door is 0.5 inch (13 mm) from fully
closed.

4. If opening the loading door 3 inches (76.2 mm)

maximum does not stop tumbler, adjust switch.

a. Loosen lower screw on switch coupler (use

2 mm hex wrench).

b. Align screw slot with alignment marks on

switch top (switch should be closed, or on).

c. Start tumbler.

d. Prop door open 2.5 inches (63.5 mm).

e. Slowly rotate switch coupler

counterclockwise (viewed from above switch)
until tumbler stops.

f. Tighten lower screw on switch coupler.

g. Return to step 1 to verify loading door switch

operation.

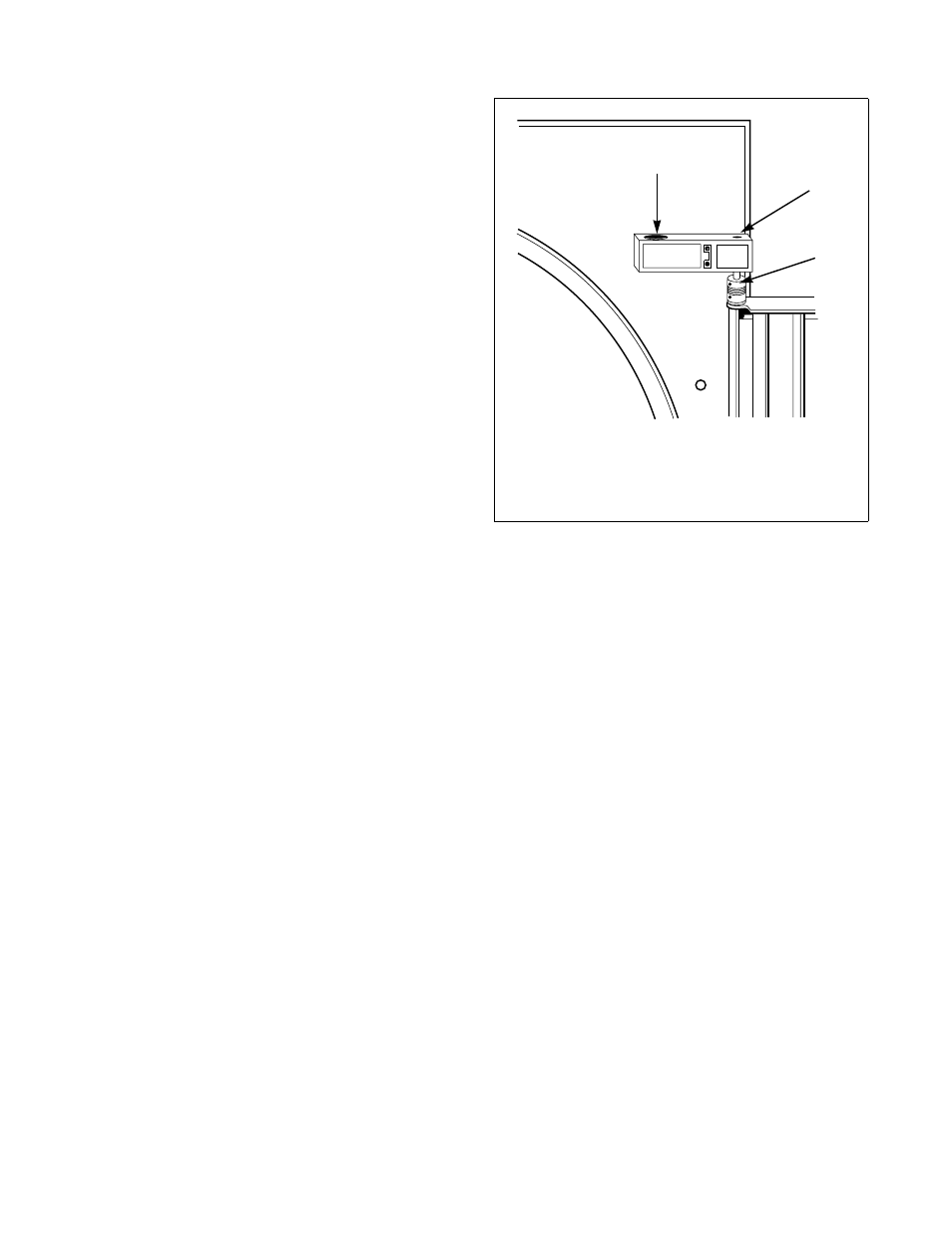

Figure 24

T495I

Loading Door Switch

Screw Slot

Switch Coupler
