Steam Requirements
43
M414038
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
120 Pound Tumblers

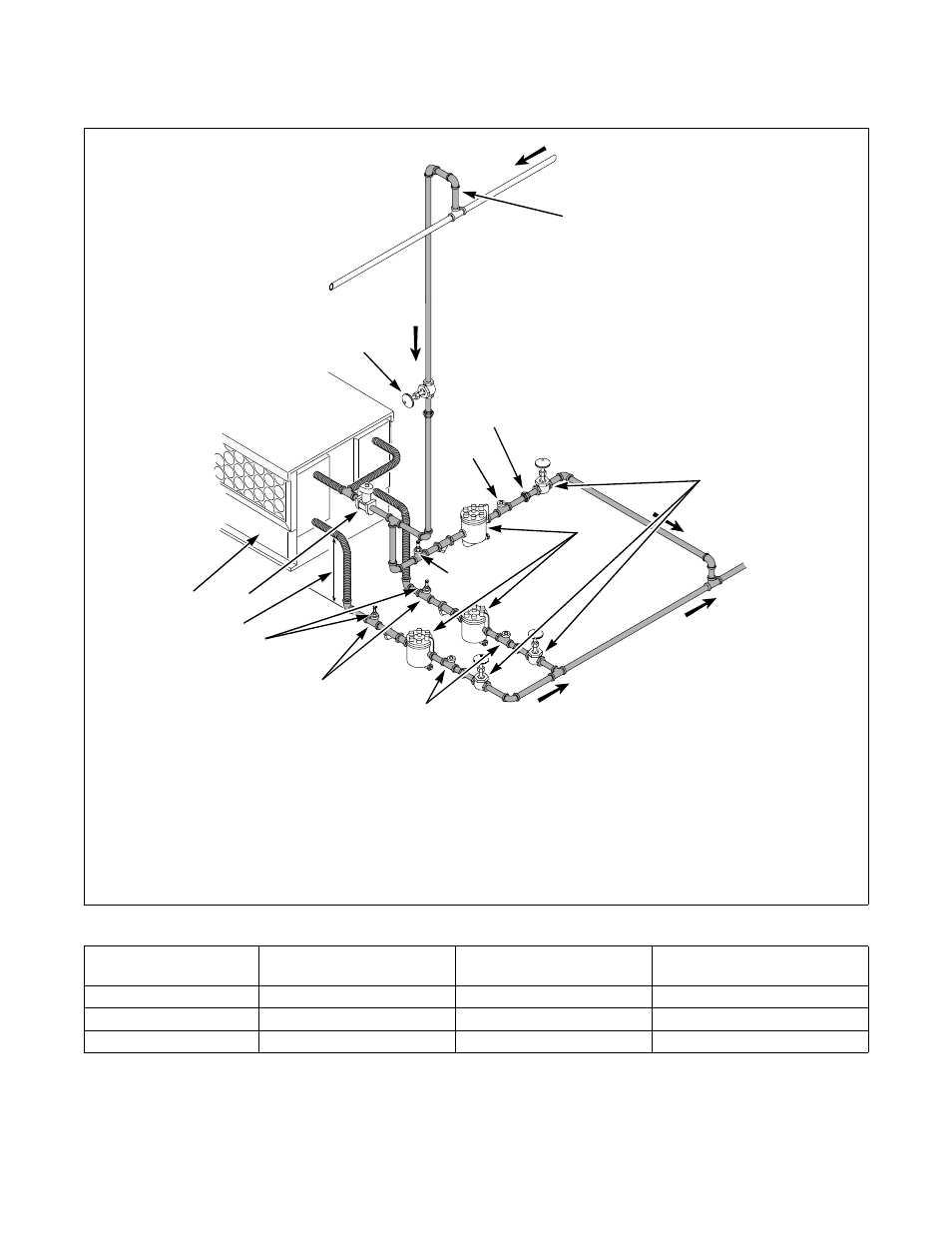

Figure 16
T221I
NOTE: Sizing of pipe diameters is shown for steam at rated pressure of 120 psi. Pipe diameter needs to be increased
accordingly if pressure is less than 125 psi (refer to Table 8). Piping must also be sized accordingly for length of runs
and number of elbows.
1
Risers 12 in. (305 mm)
6
18 in. Drop (457 mm)
2
Shut-Off Valve
7
Solenoid Valve (Supplied with machine)
3
Check Valve
8
Steam Bonnet
4
Condensate Return Line from Supply Line
9
Union
5
Vacuum Breaker
10
Trap with Built-In Strainer
T221I
SUPPLY
2
9
3
5
4
8
2
10
3
RETURN
7
1
5
6
Model
Steam Pressure
(psi)
Minimum Pipe Diameter
Steam Trap Size
(Pounds Condensate/Hour)
120CSH
120 – 125
1 in. (25 mm)
345
120CSH
60 – 120
1 in. (25 mm)
345
120CSH
35 – 60
1.25 in. (32 mm)
345
Table 8
