Exhaust Requirements
M414038 34 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

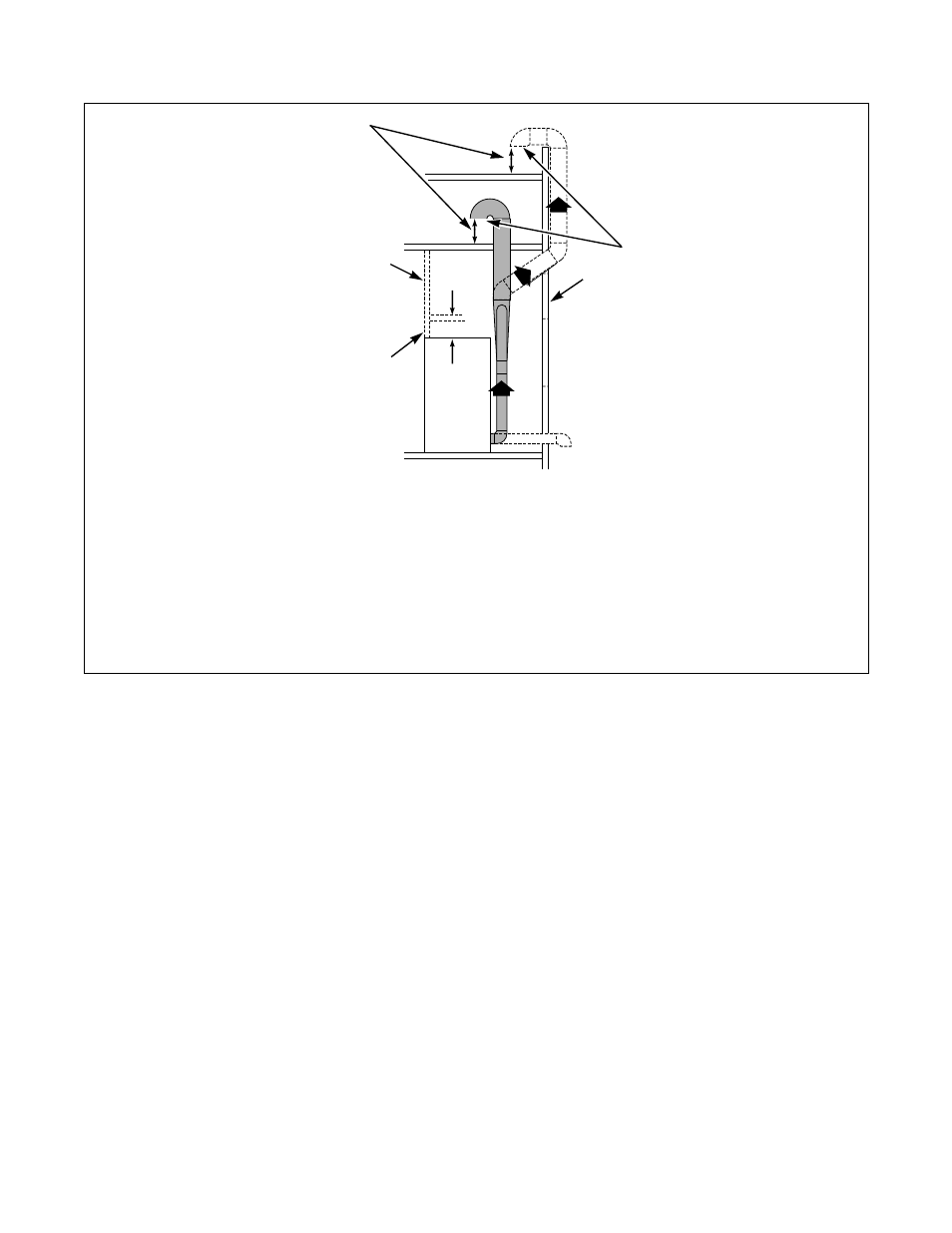

Figure 12
T493I
Consult your local building code for regulations which may also apply.
NOTE: Inside of duct shall be smooth. Do not use sheet metal screws to join sections.
1 NOTE: Do not install wire mesh or screen in this opening as lint will build up and prevent proper
discharge of air from tumblers.
2 Wall
3 Removable Strip of Panel in Framing Wall to Permit Removal of Tumbler from Framing Wall
4 Partition or Bulkhead
5 Minimum Distance Between Opening and Roof: 36 in. (914 mm)
1
2
4
CEILING
3
5
