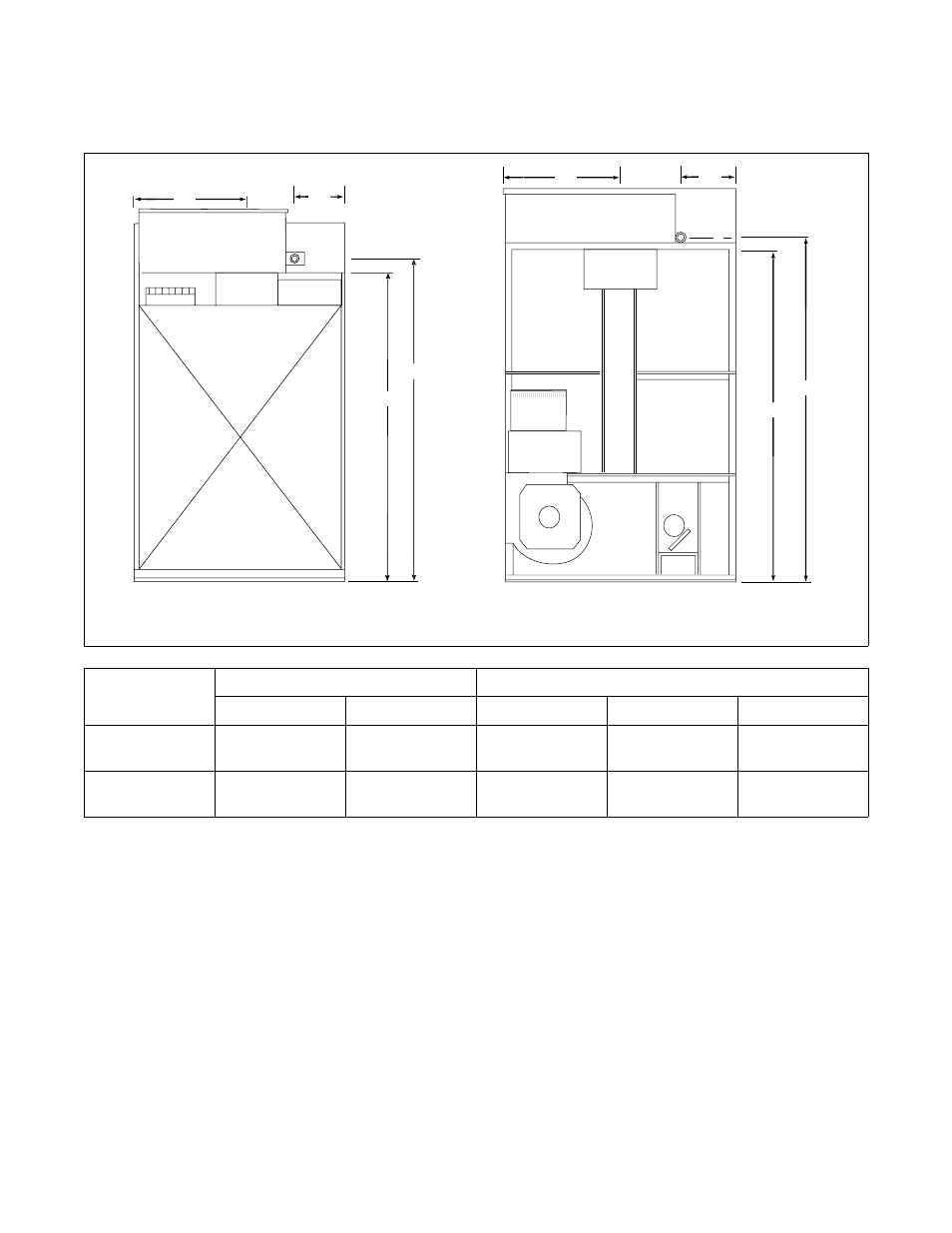

Electric and Gas Connection
Locations for FG Models
T362I
Models
Electrical Connection
Gas Connection
A
B
C
D
Diameter
120FG
24 in.
(610 mm)
70.125 in.
(1781 mm)
13 in.
(330 mm)
70.25 in.
(1784 mm)
0.75 in. (19 mm)
NPT
170FG
27 in.
(686 mm)
75 in.
(1905 mm)
14.5 in.
(368 mm)
77.375 in.
(1965 mm)
1 in. (25 mm)
NPT
T362i
A
C
C
A
B
D
B
D
120FG
170FG
