Specifications and Dimensions
13 M414038 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

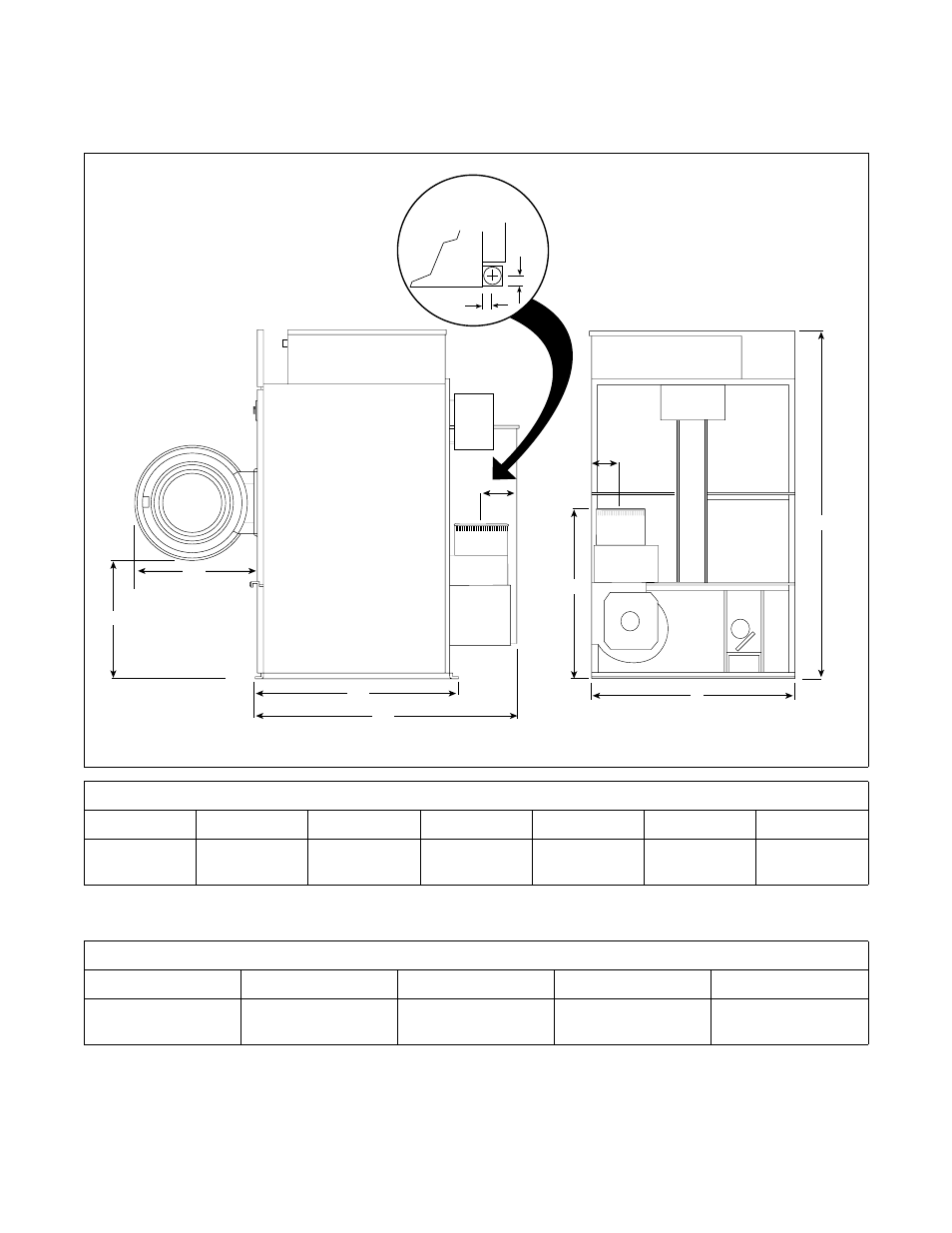

170 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
T364I
A
B
C
D
W
F
E
Y
X
V
Y
TOP VIEW
OF EXHAUST
DUCT
Cabinet Dimensions
Models A B C D E F
170FG/CSH 31.3125 in.
(795 mm)
30.5 in.
(775 mm)
51.75 in.
(1314 mm)
66.125 in.
(1680 mm)
53.125 in.
(1349 mm)
94 in.
(2388 mm)
Exhaust Outlet Dimensions and Locations
Models V W X Y
170FG/CSH 42.375 in.
(1076 mm)
6.75 in.
(171 mm)
7 in.
(178 mm)
8.75 in.
(222 mm)
