Specifications and Dimensions
M414038 12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

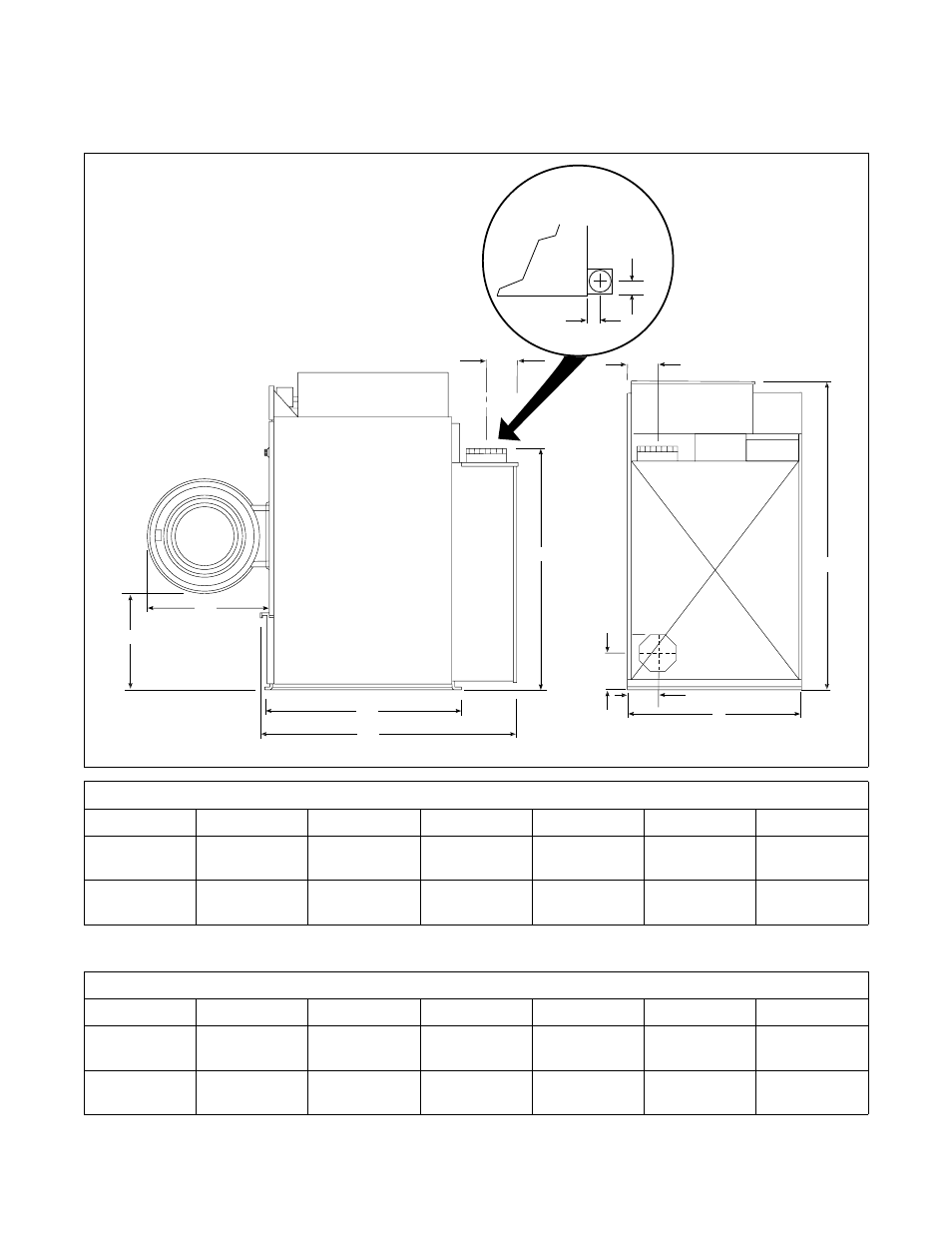

120 Pound Tumbler Dimensions and
Exhaust Outlet Locations
Refer to Position and Level the Tumbler to temporarily reduce the heights of these models.
T365I
T365i
A
B
C
D
U
V
X
F
E
Z
Y
X
W
TOP VIEW
OF EXHAUST
DUCT
Cabinet Dimensions
Models A B C D E F
120FG 31.3125 in.
(795 mm)
30.5 in.
(775 mm)
48.625 in.
(1235 mm)
65 in.
(1235 mm)
46.5 in.
(1181 mm)
85.5 in.
(2172 mm)
120CSH 31.3125 in.
(795 mm)
30.5 in.
(775 mm)
48.625 in.
(1235 mm)
65 in.
(1235 mm)
46.5 in.
(1181 mm)
83.5 in.
(2121 mm)
Exhaust Outlet Dimensions and Locations
Models U V W X Y Z
120FG 63.5 in.
(1613 mm)
8.5 in.
(216 mm)
7.5 in.
(190 mm)
8 in.
(203 mm)
8.75 in.
(222 mm)
8.125 in.
(206 mm)
120CSH 60.75 in.
(1543 mm)
8.5 in.
(216 mm)
7.5 in.
(190 mm)
8 in.
(203 mm)
8.75 in.
(222 mm)
8.125 in.
(206 mm)
