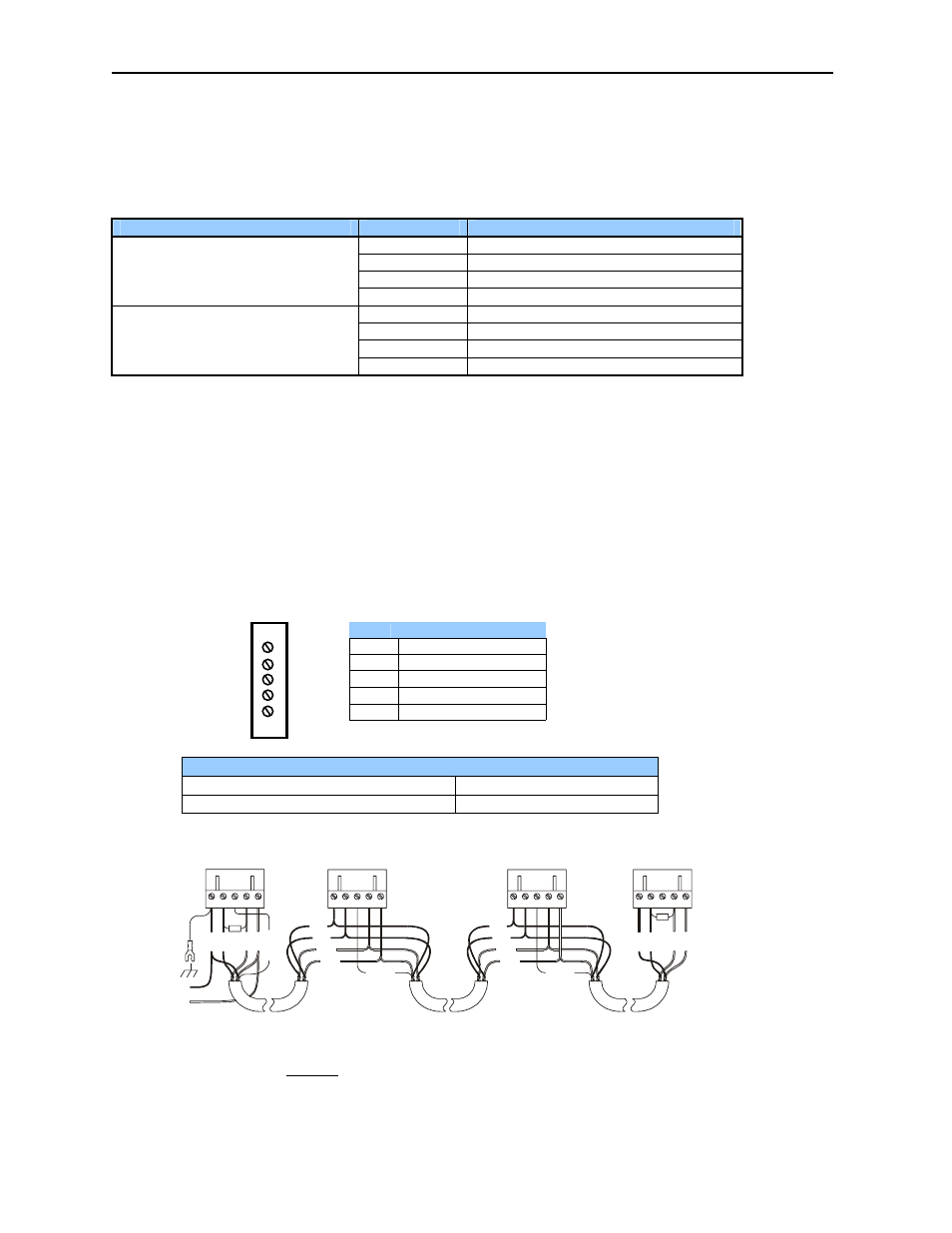

8 LEDS
SmartStix I/O Modules provide diagnostic and status LED indicators.
a. Diagnostic LED Indicators
Diagnostic LED State Meaning
Solid Red RAM or ROM test failed
Blinking Red I/O test failed
Blinking Green Module is in power-up state
MS
(indicates fault status of the Module )
Solid Green Module is running normally
Solid Red Network Ack or Dup ID test failed
Blinking Red Network ID test failed
Blinking Green Module is in Life Expectancy default state
NS
(indicates fault status of the Network)
Solid Green Network is running normally
b. Status LED Indicators
The Power Status LED illuminates Red when power is applied to the module. There are I/O Status LED
indicators for each of the Digital I/O points, which illuminate Red when an I/O point is ON.
9 NETWORK
CABLE
For detailed wiring information, refer to Chapter Two in the Control Station Hardware Manual
(MAN0227). A handy checklist is provided that covers panel box layout requirements and minimum
clearances.
Pin Description
RED 1 V+
WHT 2 CAN_H
SHD 3 Shield
BLU 4 CAN_L
BLK 5 V-
Recommended Cable
Thick: (Max Distance = 500m) Belden 3082A
Thin: (Max Distance = 100m) Belden 3084A
CAN Wiring
Note: 12 - 24VDC must be supplied to the network.
