PAGE 2 27 FEB 2007 MAN0561-02
Vibration
Occasional Vibration
Frequency Acceleration Amplitude
Sweep
Count
10
≤ f < 57 Hz - 0.075 mm
57
≤ f ≤ 150
Hz
9.8 m/s 2 {1G} -
10 times in each direction for X,Y,Z
Continuous Vibration
Frequency Acceleration Amplitude
Sweep
Count
10
≤ f <
57 Hz
- 0.035 mm
57
≤ f ≤
150 Hz
4.9 m/s
2
{0.5G}
-
10 times in each direction for X,Y,Z
Shocks
Maximum shock acceleration 147 m/s 2 {15G}
Duration Time 11 ms.
Pulse Wave Half sine wave pulse (3 times in each of X, Y, Z directions)
Noise Immunity
Square wave impulse noise
AC: ± 1,500VDC
DC: ± 900VDC
Electrostatic Discharge Voltage: 4kV (contact discharge)
Radiated electromagnetic
field
27 – 500MHz, 10V/m
Severity
level
All power
modules
Digital
I/Os
(Ue
≥24V)
Digital I/Os
(Ue < 24 V)
Analog I/Os
Communication I/Os
Fast Transient
Burst Noise
Voltage 2 kV 1 kV 0.25 kV

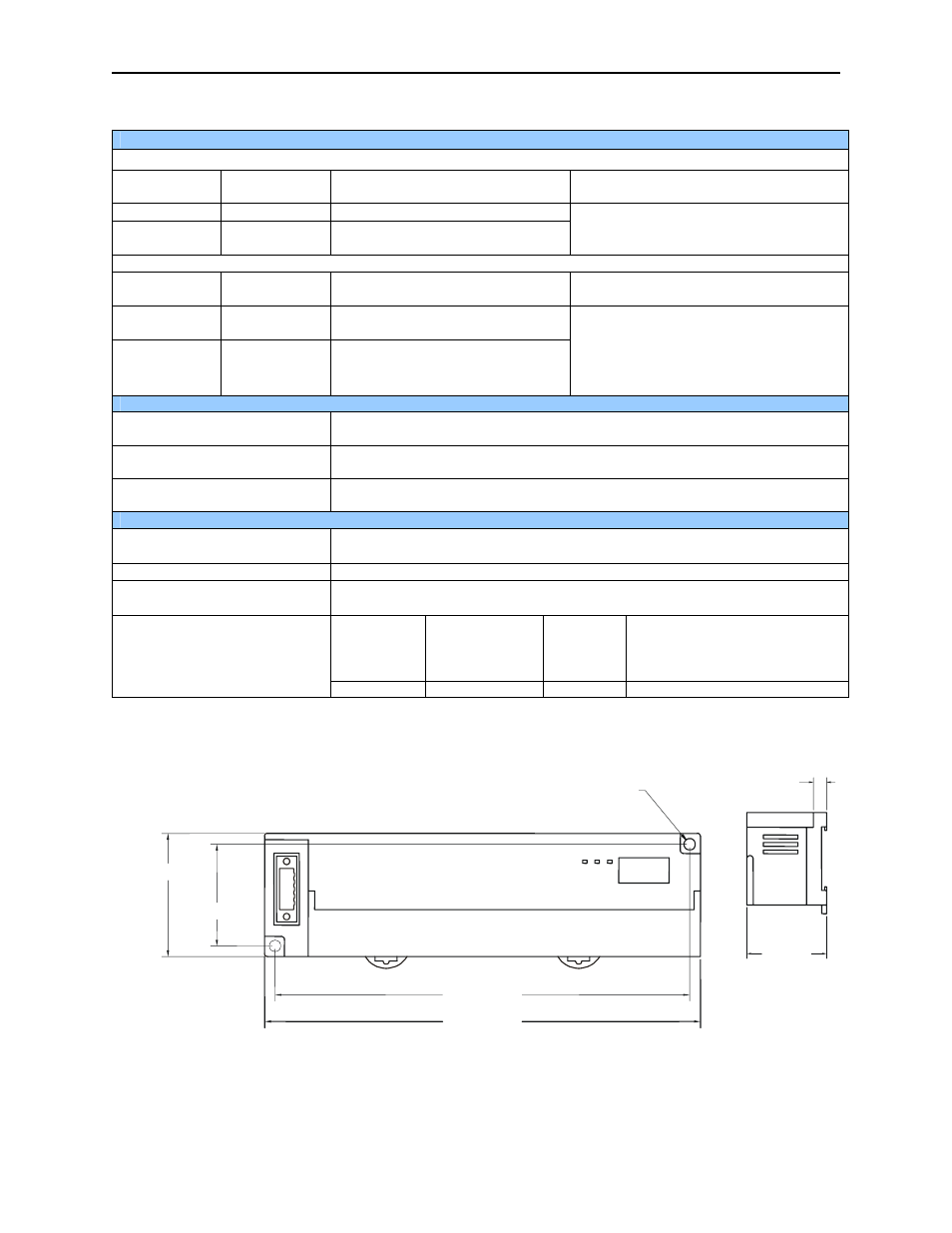

2 DIMENSIONS
1.97 [49.9mm]
6.95 [176.5mm]
6.61 [167.9mm]
1.62 [41.1mm]
0.18 [4.6mm]
1.87
[47.5mm]
0.31
[7.9mm]
HExx9-With
Removable
Terminal
