Summers Disk-Chisel - Manual (Page 77)

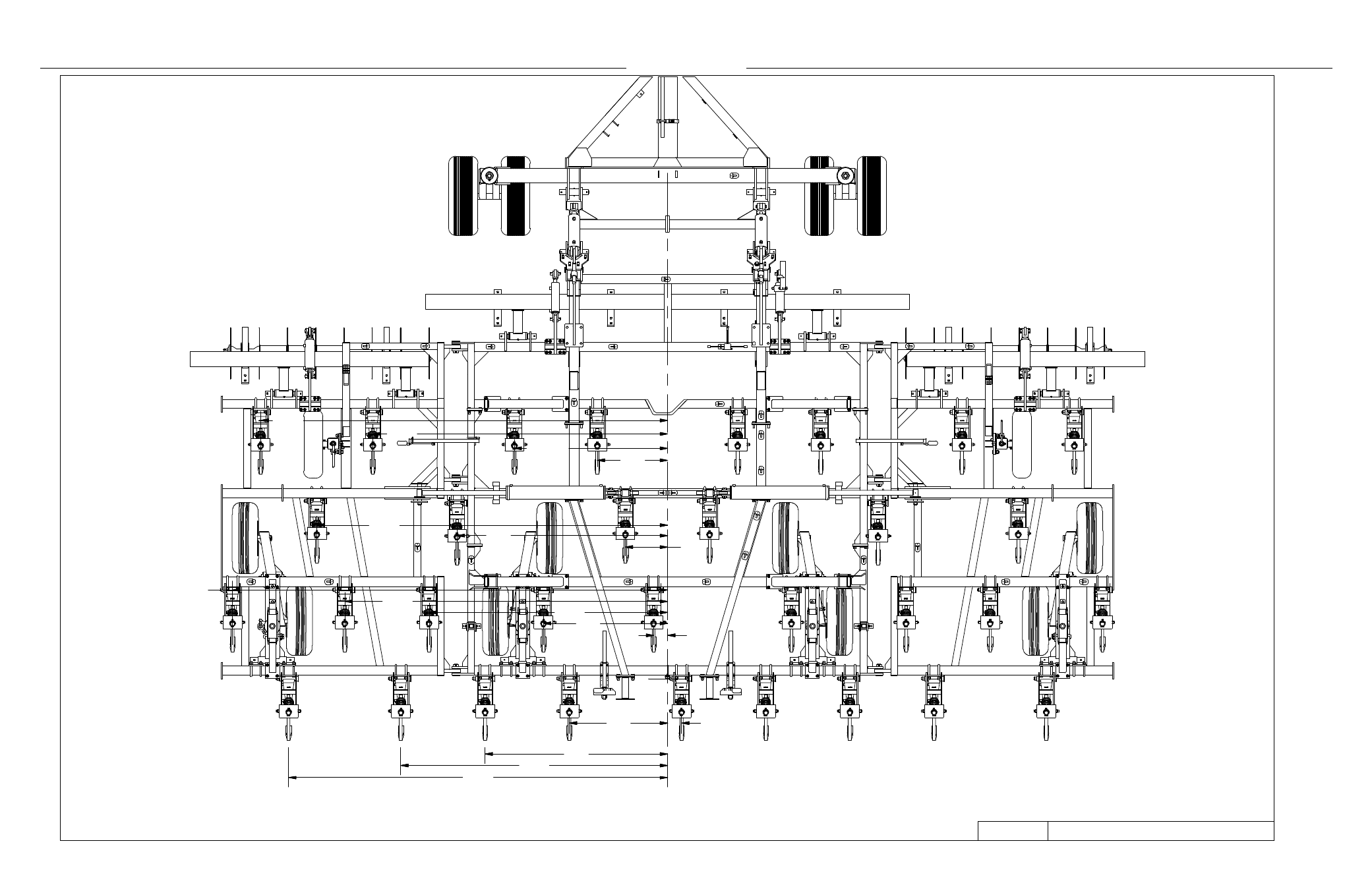

32' SHANK LAYOUT 8/30/2012 9CC3212.iam/
32' SHANK LAYOUT
   
 

    
   
   

 
   
    

--

: SUGGESTED TWISTED SPIKE LAYOUT
30"
65 1/2"
126"
174"
18"
90"
150"
6"
53"
102"
138"
186"
6" 42"
78"
114"
162"
SECTION 2 – INSTALLATION OF SHANKS AND COULTER GANGS SECTION 2 – INSTALLATION OF SHANKS AND COULTER GANGS
2-65
