DETAIL A
A

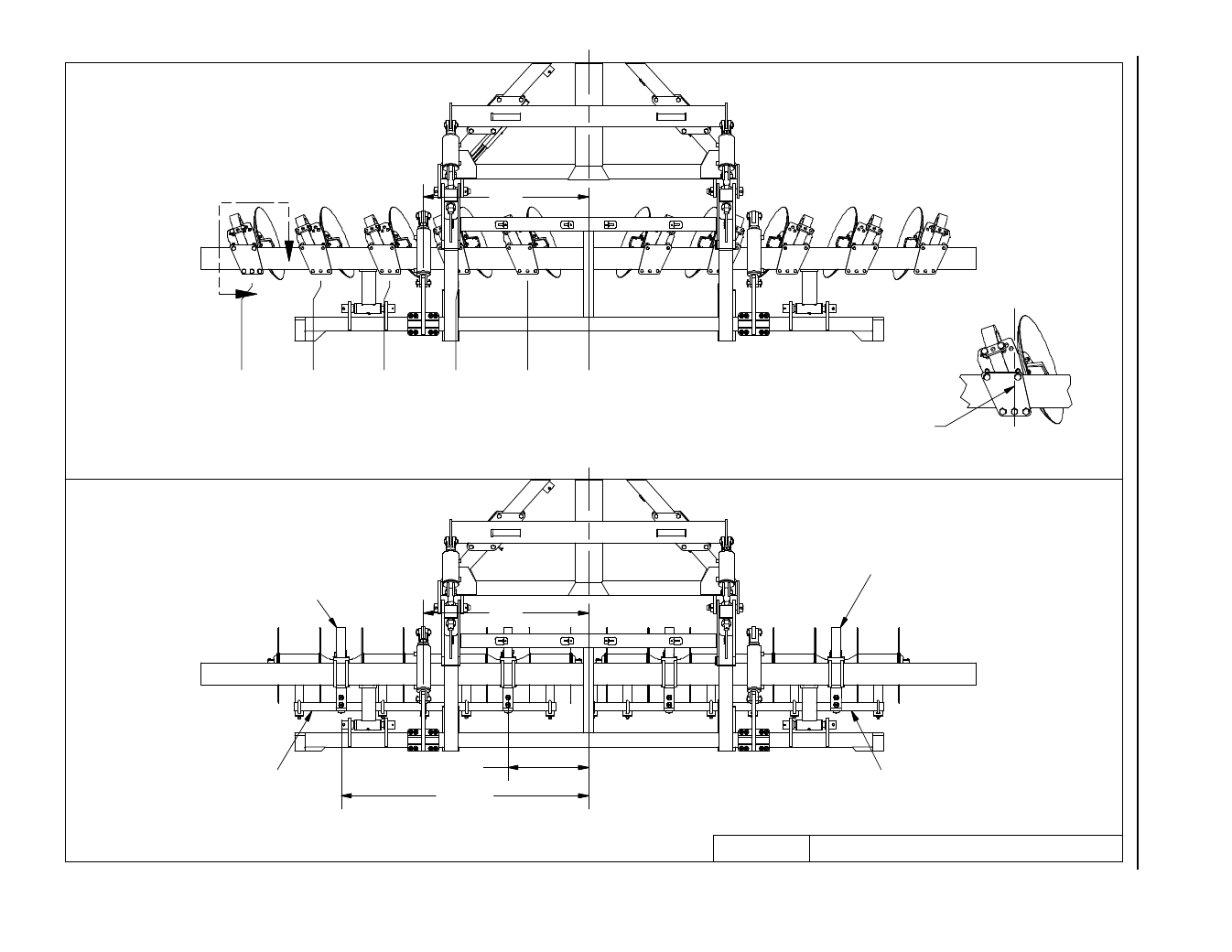

16' GANG LAYOUT 8/29/2012 9DC1612H.iam/
23 1/2"
71 3/4"
48"
8CC2280F
8CC2280F
8J3286 8J3276
48"
0" 17 3/4" 37 3/4" 57 3/4" 77 3/4" 97 3/4"
WHEN LOCATING BLADE, USE CENTER
HOLE ON REAR OF BRACKET, AS
SHOWN. DIMENSION SHOWN IS FROM
CENTERLINE OF MACHINE TO THIS HOLE.
16' DISK-CHISEL
16' COULTER-CHISEL
SECTION 2 – INST
ALLA
TION OF SHANKS
AND COUL
TER GANGS
2-56
