Summers Disk-Chisel - Manual (Page 61)

DSK-CHSL/CLTR-CHSL GANG HYD 10/15/2013

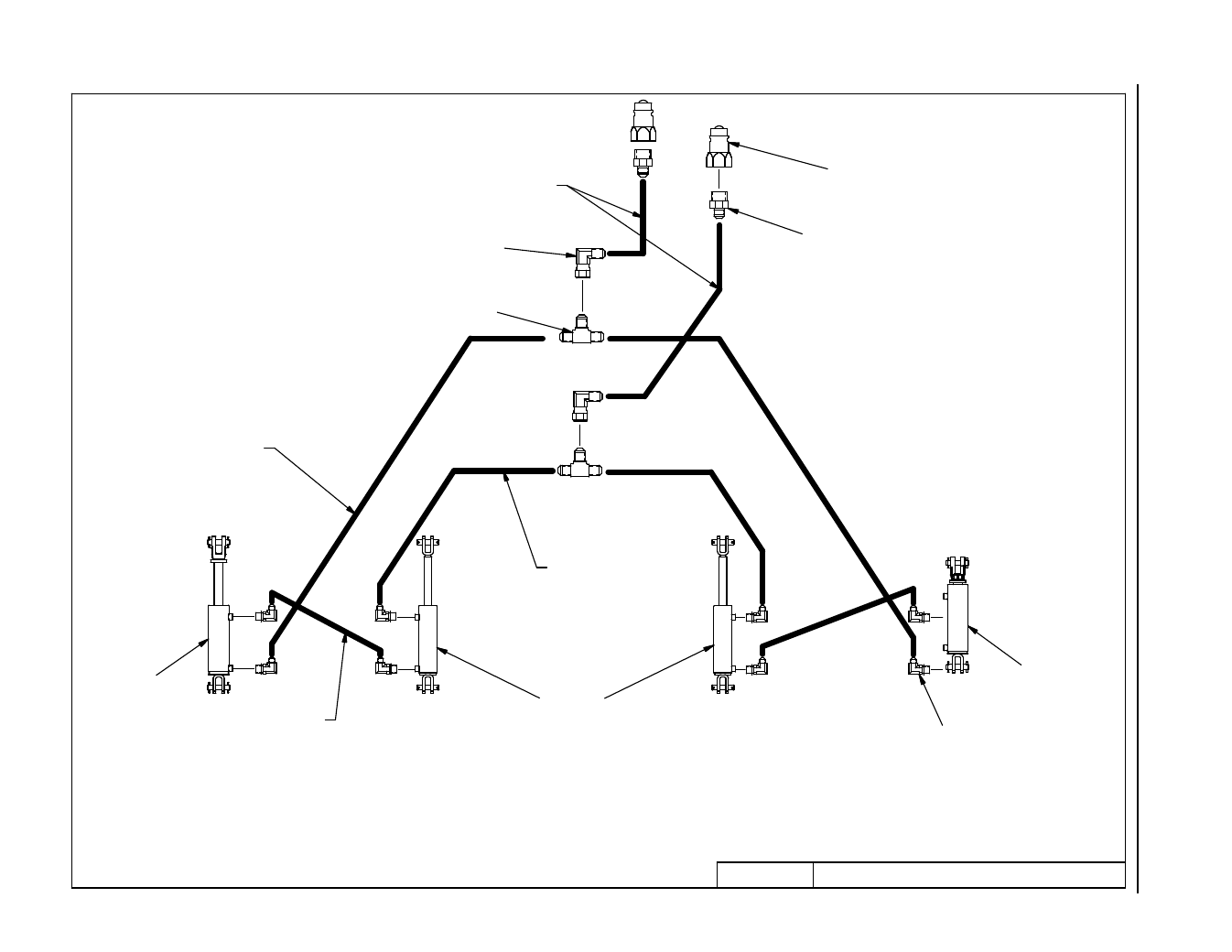

GANG DEPTH CONTROL HYDRAULICS
32'-36' MACHINE
8N3312 (2X)
3/8" X 312"
8N3180 (2X)
3/8" X 180"
8N3136 (2X)
3/8" X 136"
8N3096 (2X)
3/8" X 96"
8J5300
#6 JIC(M) TEE
8J5700
#6 JIC(F-SW) X #6 JIC(M) 90° ADP
8J5510
3/4" ORB X #6 JIC(M)
8D3212
3/4" ORB TIP ISO
8K8435
8K8435
8K8430
8J6010
3/4-16ORB X #6JIC(M) 90° ADP
3.5 X 8"
MASTER 3 X 8"
SLAVE
3.5 X 8"
MASTER
NOTE: REPHASE CYLINDERS BY FULLY EXTENDING WITH BLADES CONTACTING GROUND
2-49
SECTION 2 – HYDRAULIC SET
-UP
(32’
& 36’)
