DETAIL A
A

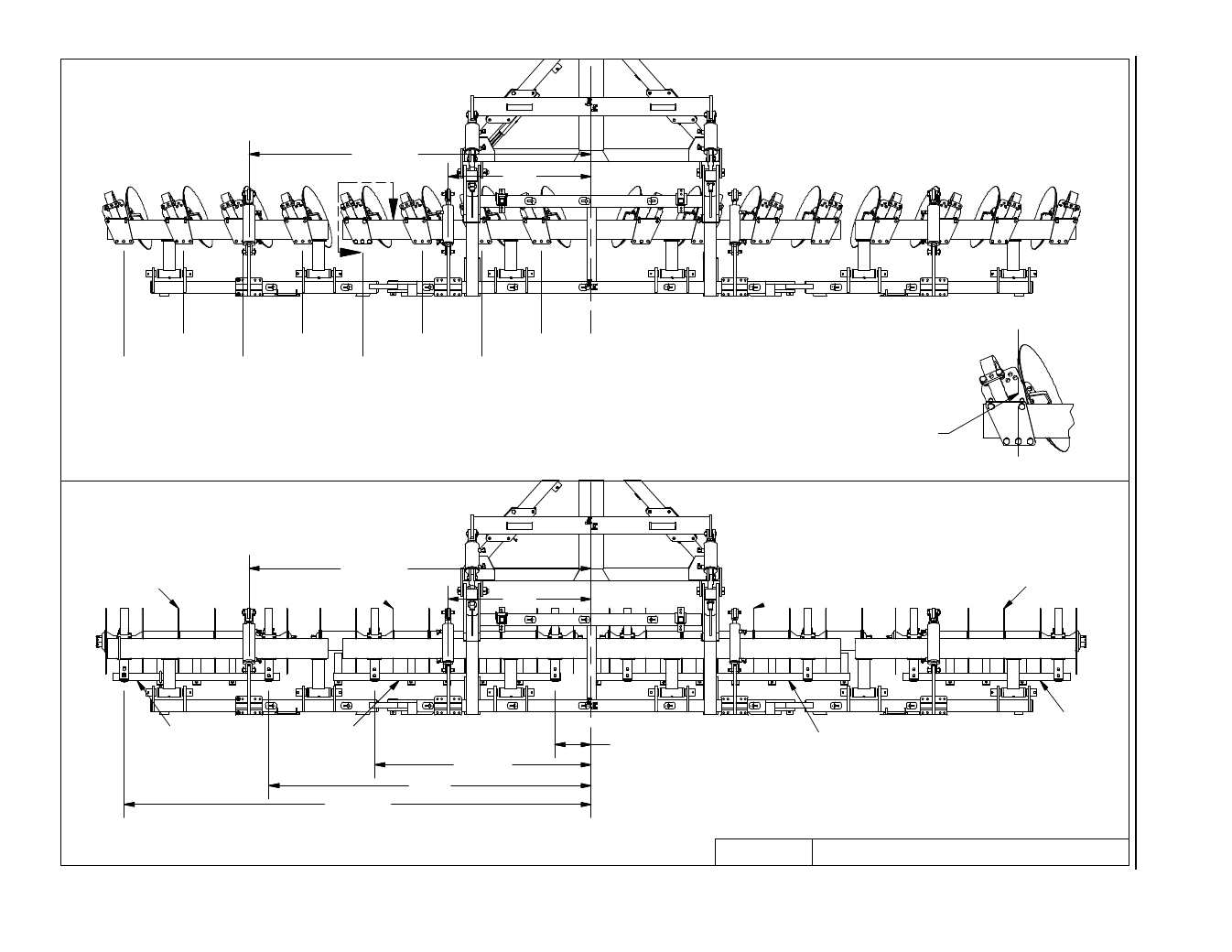

28' GANG LAYOUT 8/30/2012 9DC2812H.iam/
28' DISK-CHISEL
28' COULTER-CHISEL
48"
114 3/4"
12"
72 1/2"
108"
156 1/2"
8CC2261F
8CC2282F 8CC2281F
8CC2261F
8J3256
8J3286
8J3276 8J3256
WHEN LOCATING BLADE, USE CENTER
HOLE ON REAR OF BRACKET, AS
SHOWN. DIMENSION SHOWN IS FROM
CENTERLINE OF MACHINE TO THIS HOLE.
48"
114 3/4"
0" 16 3/4" 56 3/4" 96 3/4" 136 3/4"
0" 36 3/4" 76 3/4" 116 3/4" 156 3/4"
SECTION 2 – INST
ALLA
TION OF SHANKS
AND COUL
TER GANGS
2-64
