Summers Disk-Chisel - Manual (Page 53)

DSK-CHSL/CLTR-CHSL GANG HYD 10/15/2013
8N3150 (2X)
3/8" X 150"
8N3124 (2X)
3/8" X 124"
8N3096 (2X)
3/8" X 96"
8N3312 (2X)
3/8" X 312"
8N3312 (2X)
3/8" X 312"

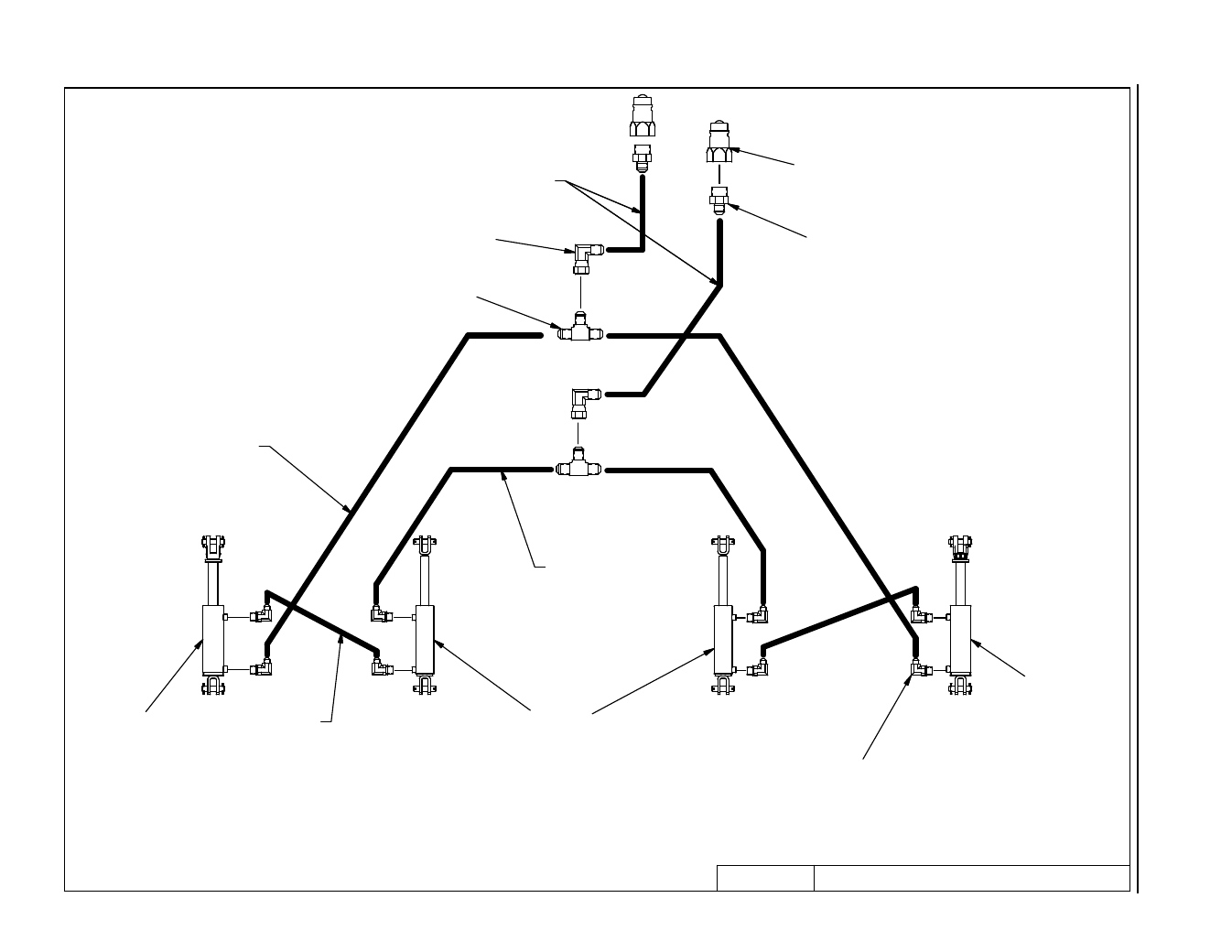

GANG DEPTH CONTROL HYDRAULICS
24'-28' MACHINE
8K8435 8K8430
8J6010
3/4-16ORB X #6JIC(M) 90° ADP
8K8435
8J5300
#6 JIC(M) TEE
8J5700
#6 JIC(F-SW) X #6 JIC(M) 90° ADP
8J5510
3/4" ORB X #6 JIC(M)
8D3212
3/4" ORB TIP ISO
NOTE: REPHASE CYLINDERS BY FULLY EXTENDING WITH BLADES CONTACTING GROUND
3.5 X 8"
MASTER
3.5 X 8"
MASTER
3 X 8"
SLAVE
SECTION 2 – HYDRAULIC SET
-UP
(24’
- 28’)
2-41
