Summers Disk-Chisel - Manual (Page 46)

16-20' GNG DPTH HYD 7/13/2012 9CC2012H.iam/
16' & 20' COULTER-CHISEL

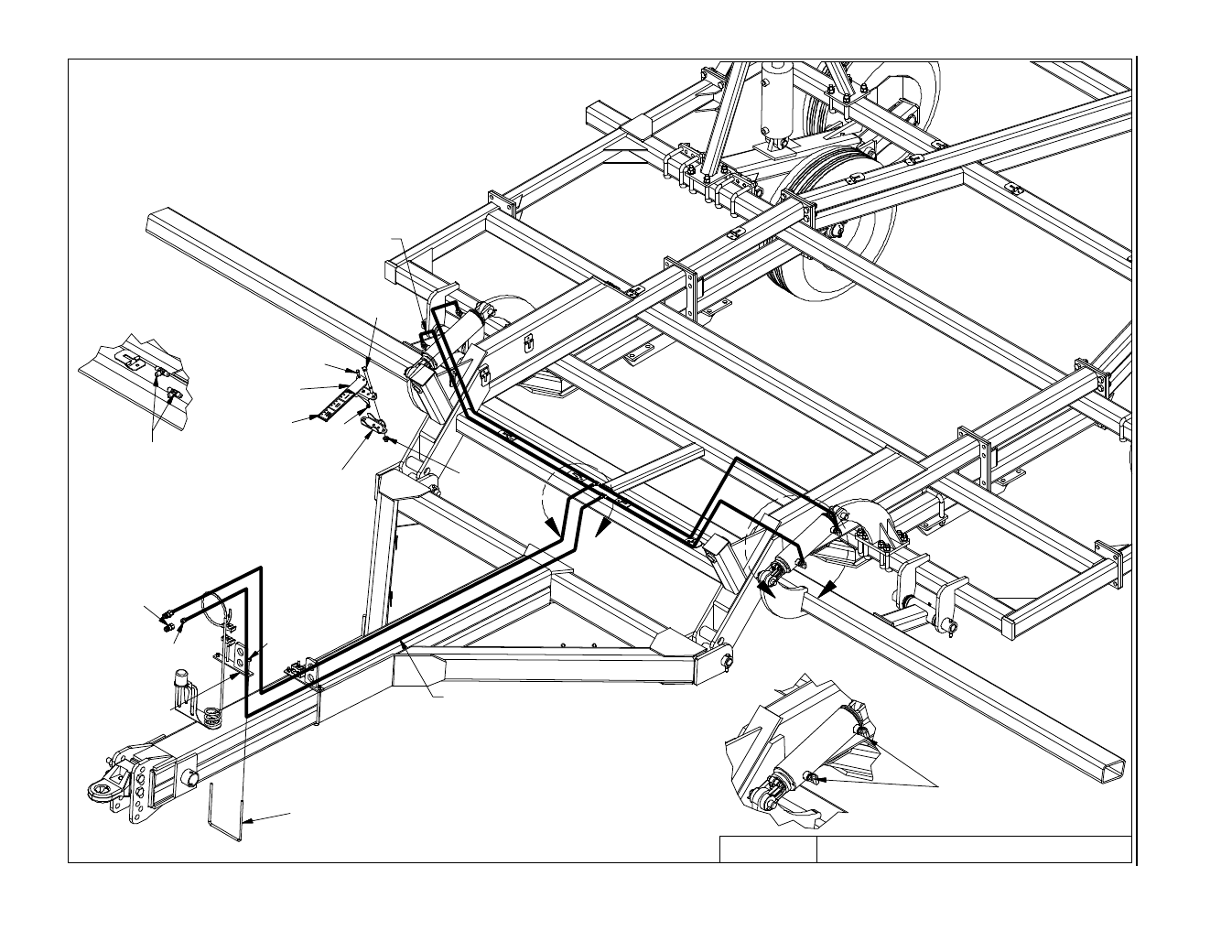

GANG DEPTH CONTROL HYDRAULICS
8J5300
#6 JIC(M) TEE
8J5510
3/4" ORB X #6 JIC(M)
8D3212
3/4" ORB TIP ISO
8C1710
3/8 X 8 X 9"
8CC0600
8X0202
3/8" LN
8J6010
3/4-16ORB X #6JIC(M) 90° ADP
8N3312
2X
8N3070
4X
8CC0805
8X0001
3/8 X 3/4"
8X0082
1/2" X 6-1/2"
8CC0800
8X0203
3/8" FN
8X0246
1/2" FN
8Z0365
2-34
SECTION 2 – HYDRAULIC SET
-UP
(16’
& 20’)
