Summers Disk-Chisel - Manual (Page 43)

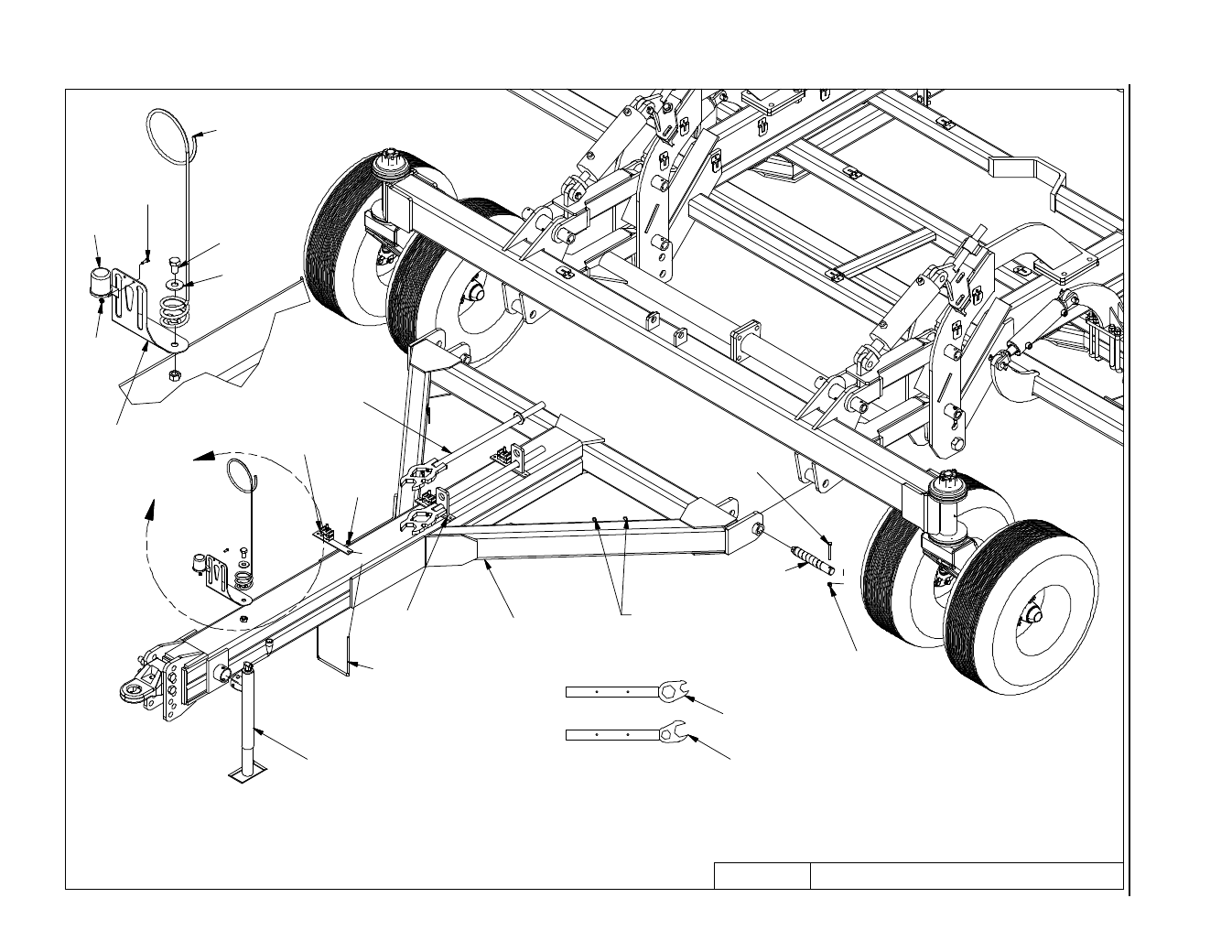

DETAIL A
A
HITCH 8/17/2012 9CC3212.iam/
8D8500
8X0110
3/4 X 1.25"
8X0318
3/4" FW
8D8490
8X0223
1/4" FN
8X0000
1/4 X 3/4"
8K8067
8D8522
8C1710
3/8 X 8 X 9"
8X0203
3/8" FN
8W1398
8X0234
7/16" LNUT
8X0044
7/16" X 3-1/2"
8K1640
8CC4000 32' - 36'
8T4000 40' ONLY
8K3002
8CC0600
8T0606
8T0608
NOTE:
8K3002 WRENCHES AND 8CC0600 WRENCH HOLDERS USED ON
COULTER-CHISELS ONLY.
8T0606 AND 8T0608 WRENCHES USED ON DISK-CHISELS ONLY
WRENCH HOLDER STUDS
2-31
SECTION 2 – SET
-UP
OF 32’-40’
CASTER WHEELS & HITCH
