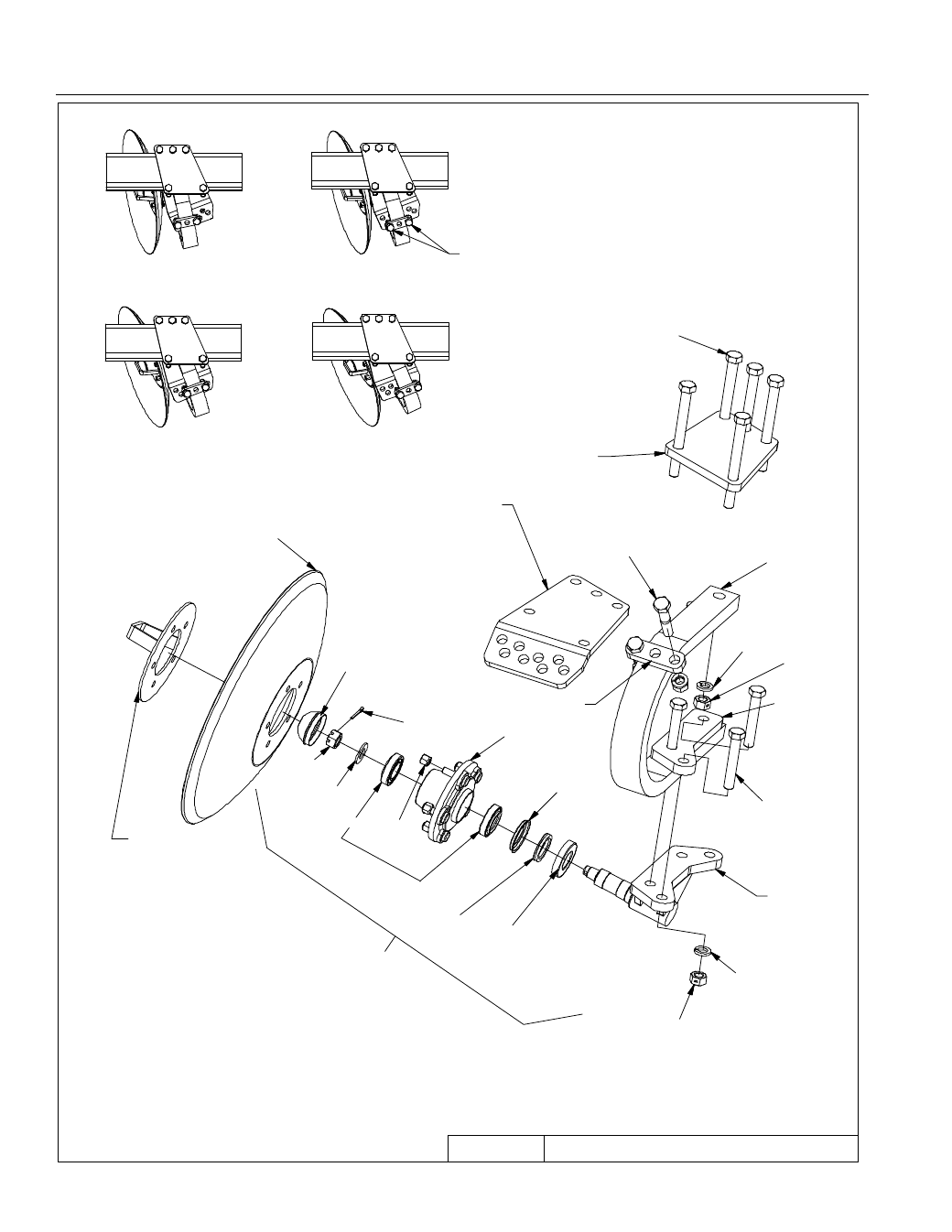

BLADE ASSEMBLY 11/6/2012 9DC1612H.iam/
DISK-CHISEL
BLADE ASSEMBLY
NOTE: ASSEMBLY ABOVE IS FOR LEFT
SIDE OF DISK-CHISEL. FOR RIGHT SIDE
ASSEMBLY: ROTATE HUB ASSEMBLY 180
DEGREES AND SUBSTITUTE 8CC1507
FOR 8CC1505, AS NOTED.
8K4944
12°
16°
20° 24°
NOTE POSITION OF BOLTS
8D5234
8D5238
8D5236
8D5217
8D5214
8D5219
7/8" FW
8D5209
8X0415
8D5212
8K4922
8X0119
3/4 X 7-1/2"
8X0265
3/4" LN
8X0306
3/4" LW
8X0118
3/4 X 4"
8X0306
3/4" LW 8X0265
3/4" LN
8X0122
3/4 X 4 1/2"
8CC1505 (LEFT)
8CC1507 (RIGHT)
8CC1500
8K4925
8CC1510
8K4400
8K4946
8K4939
8R6913
6-30
SECTION 6 – PARTS
