DETAIL A
A

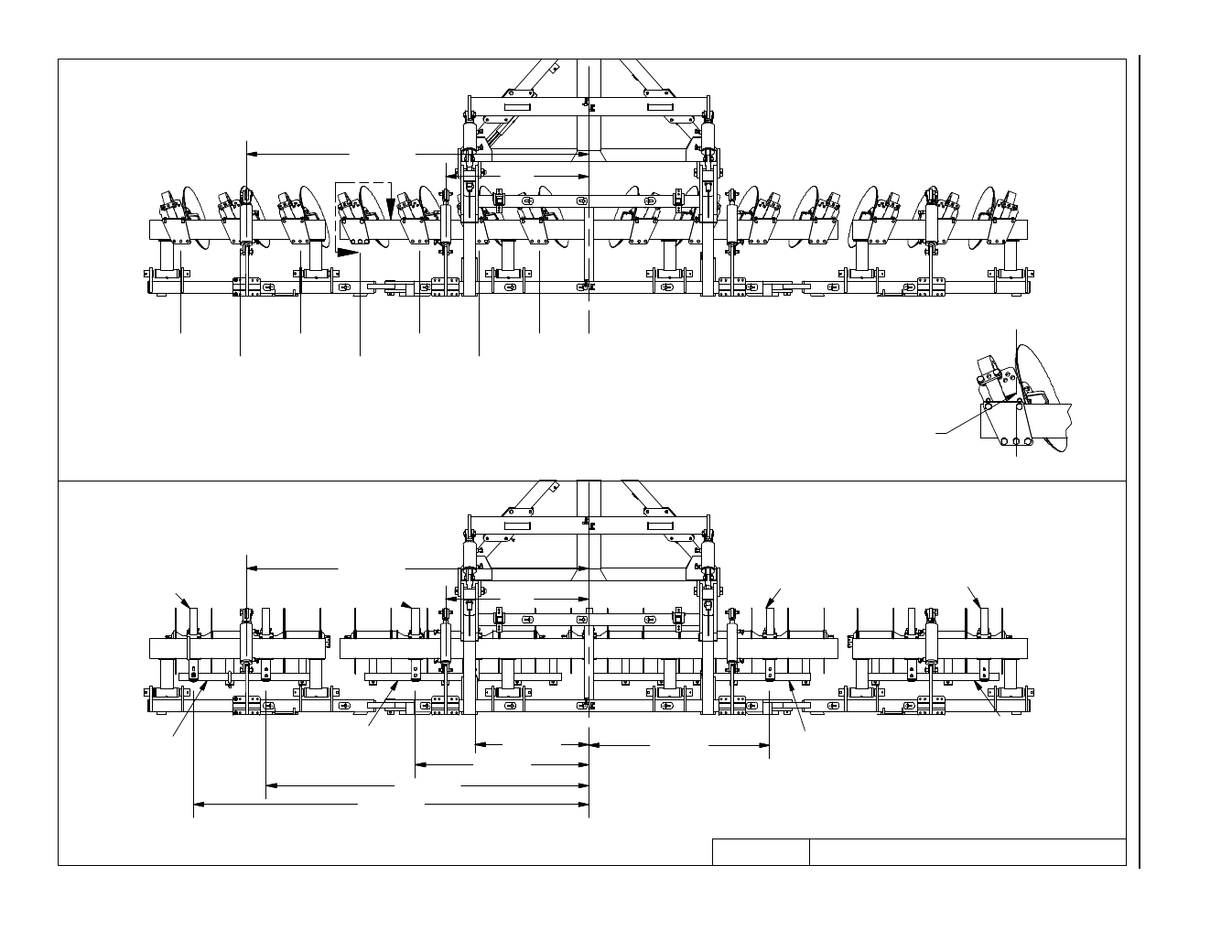

24' GANG LAYOUT 8/30/2012 9DC2412H.iam/
24' DISK-CHISEL
24' COULTER-CHISEL
48"
114 3/4"
38 1/4"
58 1/4"
108 1/4"
132 1/2"
8CC2281F 8CC2252F
8J3246
8J3276
8J3266
8J3246
WHEN LOCATING BLADE, USE CENTER
HOLE ON REAR OF BRACKET, AS
SHOWN. DIMENSION SHOWN IS FROM
CENTERLINE OF MACHINE TO THIS HOLE.
48"
114 3/4"
0" 16 3/4" 56 3/4" 96 3/4" 136 3/4"
0" 36 3/4" 76 3/4" 116 3/4"
60 5/8"
8CC2260F
8CC2250F
SECTION 2 – INST
ALLA
TION OF SHANKS
AND COUL
TER GANGS
2-60
