Red Lion PAXLT User Manual
Page 10
10
This parameter enables the
RST
button or user input to reset the output when
the display is reset.
Note: For this parameter to operate, the
RST
button or User Input being used
must be set to
and the Input value must be displayed. If these conditions
are not met, the output will not reset.
OUTPUT RESET WITH DISPLAY RESET
When
, the output is disabled (after a power up) until the trigger point is
crossed. Once the output is on, the output operates normally per the Setpoint
Action and Output Reset Action.
STANDBY OPERATION
Enter the probe burn-out action. In the event of a temperature probe failure
(TC open; RTD open or short), the output can be programmed to be on or off.
PROBE BURN-OUT ACTION
= Latch with immediate reset action; This action latches the output on at
the trigger point per the Setpoint Action shown in Setpoint Output Figures.
Latch means that the output can only be turned off by the front panel
RST
button or user input manual reset, or meter power cycle. When the user input
or
RST
button is activated (momentary action), the corresponding “on” output
is reset immediately and remains off until the trigger point is crossed again.
(Previously latched alarms will be off if power up Display Value is lower than
setpoint value.)
= Latch with delay reset action; This action latches the output on at the
trigger point per the Setpoint Action shown in Setpoint Output Figures.
Latch means that the output can only be turned off by the front panel
RST
button or user input manual reset, or meter power cycle. When the user input
or
RST
button is activated (momentary action), the meter delays the event
until the corresponding “on” output crosses the trigger off point. (Previously
latched outputs are off if power up Display Value is lower than setpoint
value. During a power cycle, the meter erases a previous
reset if it is
not activated at power up.)
OUTPUT
STATE
OFF
ON
Hys
SP
Auto
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
OFF
ON
OFF
ON
OFF
MANUAL
RESET
LAtCH
L-dLY
SP - Hys
( )
( )
( )
{

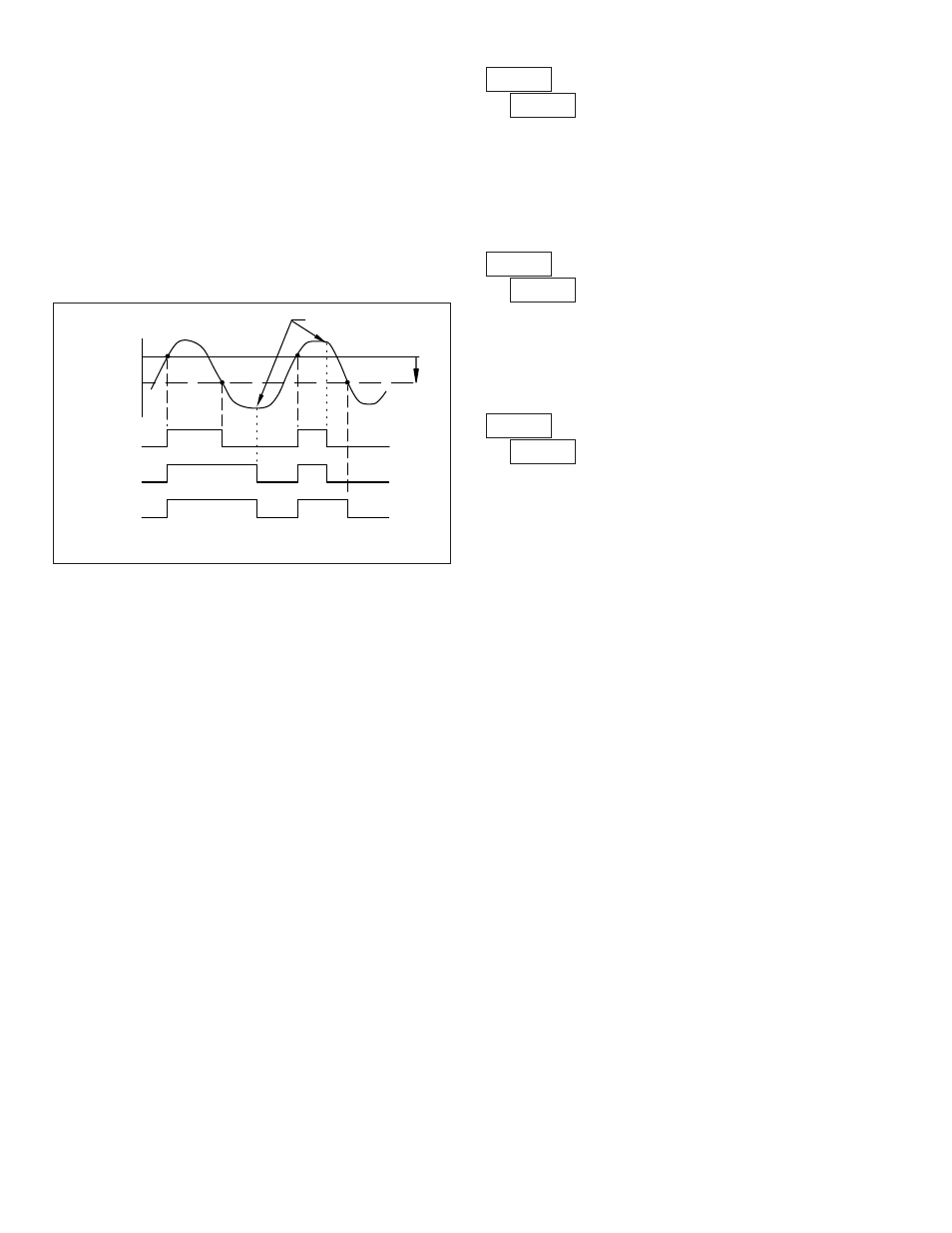

Setpoint Output Reset Actions
