Mounting with Mounting Kit (Optional)
1.
Insert the mounting kit adapter to the transmitter bottom in the
position shown in the picture.
2.
Turn the kit inside the bottom firmly until you feel that the adapter
snaps into the locked position.
3.
Mount the adapter to the pole mast, do not tighten the fixing screw
(provided).
4.
Align the transmitter in such a way that the arrow points to north.
5.
Tighten the fixing screw to fix the adapter firmly to the pole mast.
0505-198

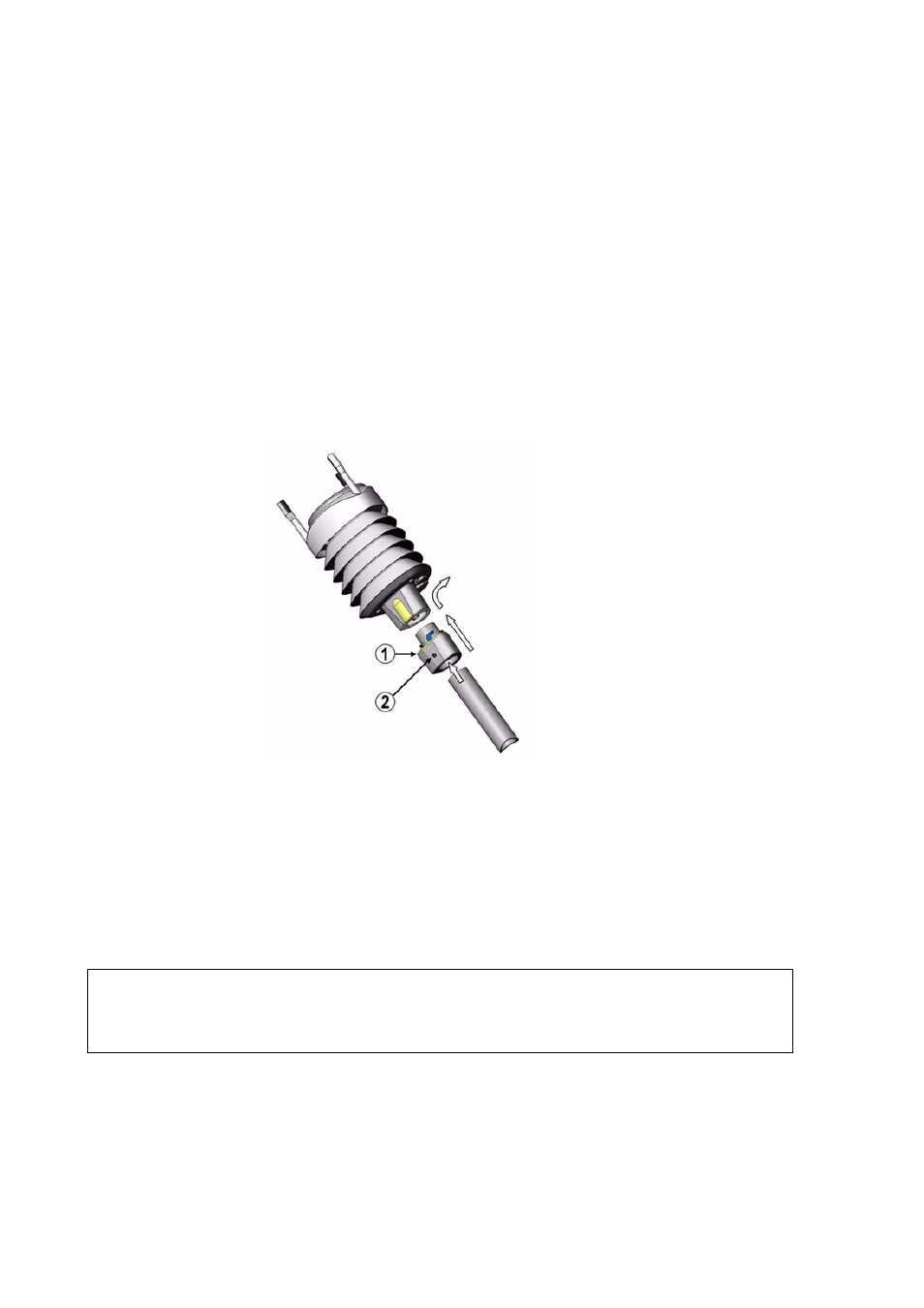

Figure 9
Mounting WXT510 to Pole Mast Using Optional
Mounting Kit
The following numbers refer to
Figure 9 on page 30
:
1
=
Mounting kit
2
=
Fixing screw
NOTE
When removing WXT510 from the pole just turn the transmitter so
that it snaps out from the mounting kit. When replacing the device the
alignment is not needed.
