Chapter 2 __________________________________________________________ Product Overview
VAISALA _______________________________________________________________________ 17
WXT510 Transmitter Components
0505-190

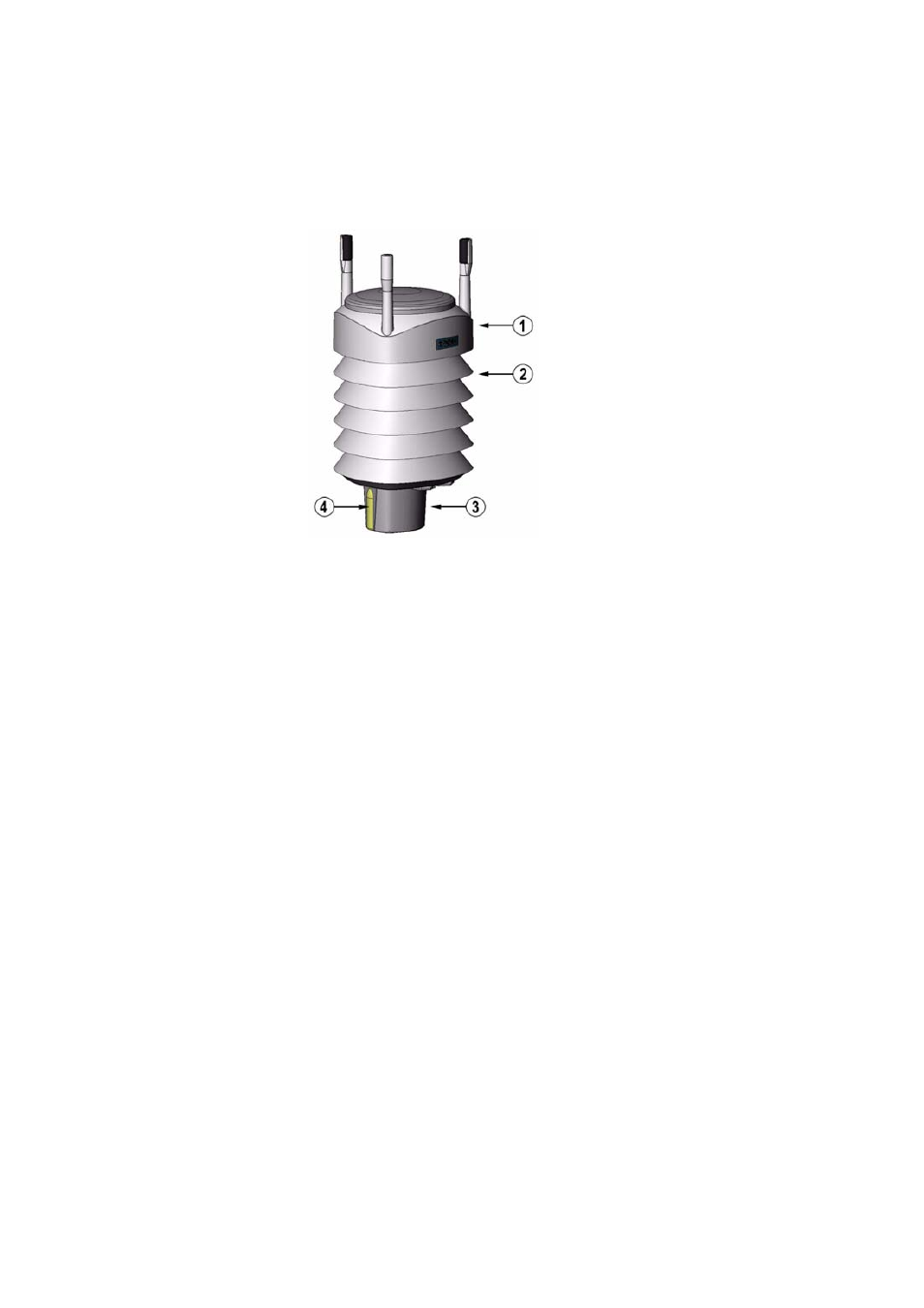

Figure 2
Main Components of Weather Transmitter WXT510
The following numbers refer to
Figure 2 on page 17
:
1
=
Top of the transmitter
2
=
Radiation shield
3
=
Bottom of the transmitter
4
=
Screw cover
