Vaisala WXT510 User Manual
Page 20
User’s Guide ______________________________________________________________________
18 __________________________________________________________________ M210470EN-D
0505-191

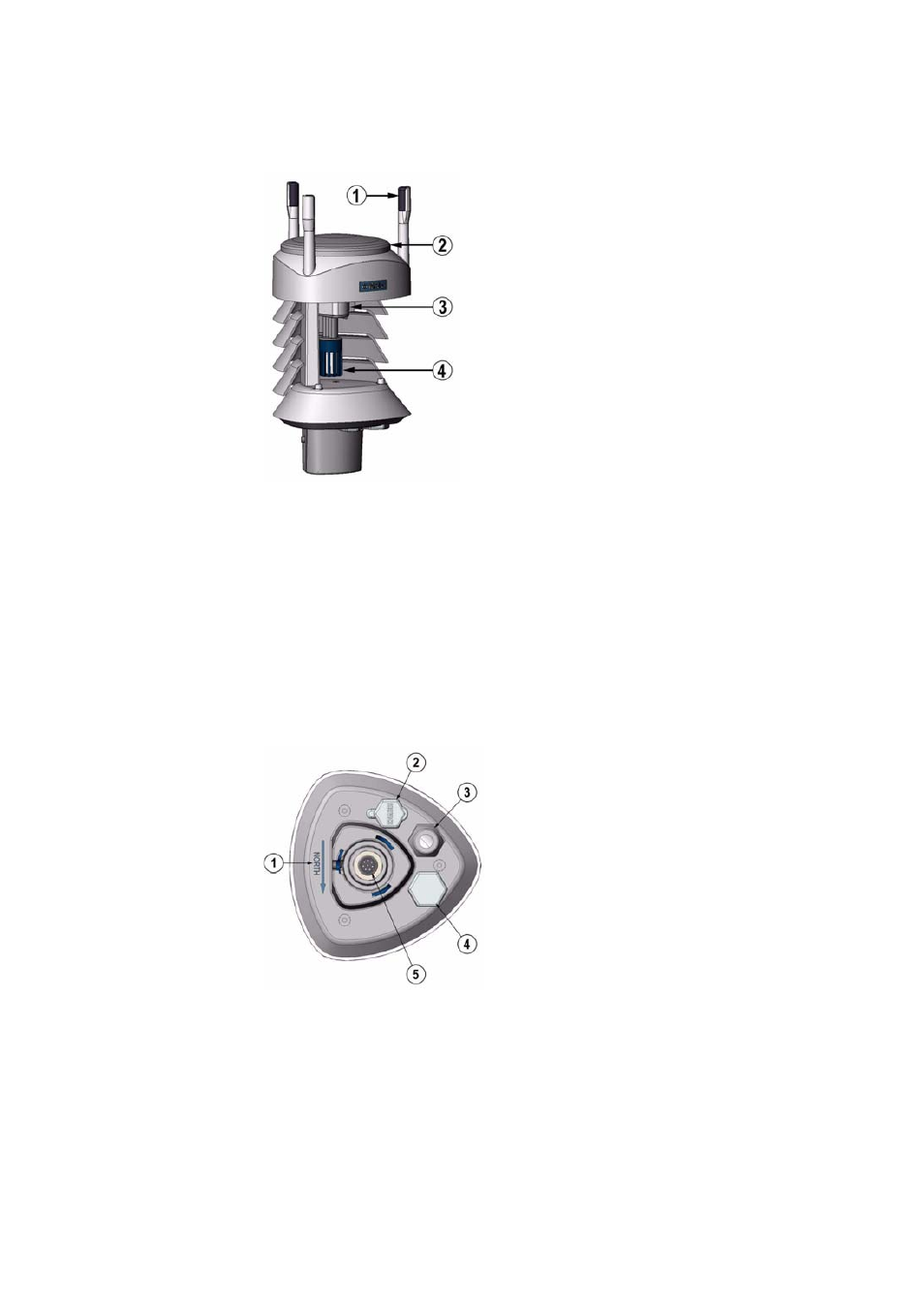

Figure 3
Cut Away View
0505-192
Figure 4
Bottom of Transmitter
The following numbers refer to
Figure 3 on page 18
:
1
=
Wind transducers (3 pcs)
2
=
Precipitation sensor
3
=
Pressure sensor inside the PTU module
4
=
Humidity and temperature sensors inside the PTU module
