1.0 Introduction
The OutBack MATE2M is a complete system controller and display for the OutBack FX inverter/charger. It provides a display
of the operation as well as allows for control and adjustment of the product setpoints. The OutBack MATE2M also coordinates
the operation of the entire inverter / charger system to maximize the performance and to prevent multiple products from
conflicting.
Through the use of an OutBack HUB communication manager a single OutBack MATE2M is able to connect to multiple FX
inverter/chargers and other OutBack products. A maximum of ten OutBack products will be able to be connected to a single
MATE2M via a HUB using CAT 5 type Ethernet cabling with 8 wire RJ45 modular connectors.
1.1 Features

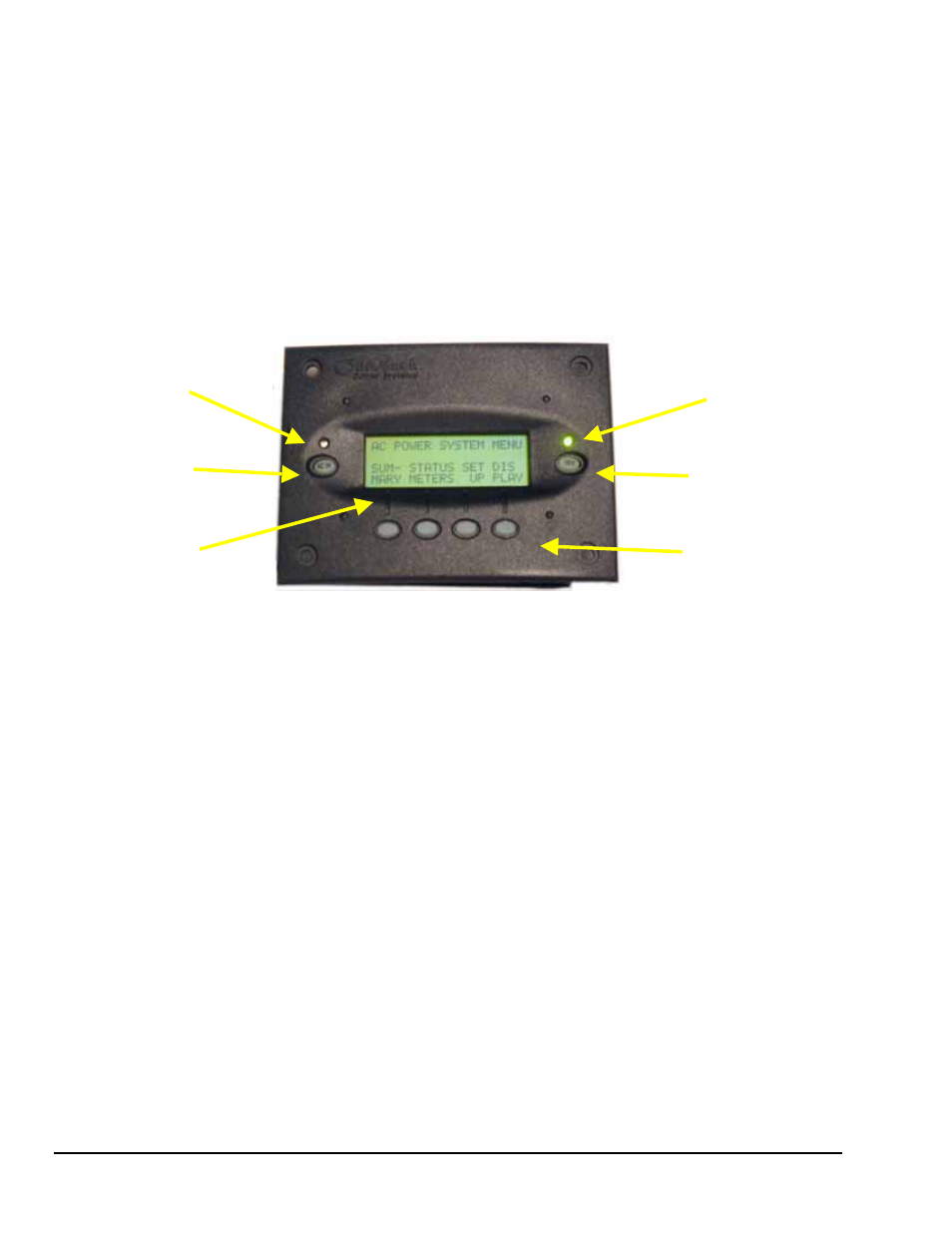

INVERTER LED
INVERTER
BUTTON
FOUR “SOFT”
BUTTONS
4 by 20 character
backlit display
AC INPUT LED
AC INPUT
BUTTON
LCD Display
Four line, 80 character backlit LCD display with alphanumeric and graphic displays
Control Keypad
Six backlit silicone membrane keys – dedicated Inverter and AC input “hot” keys for control & 4 soft keys
Status Indicators
Two LED indicators: Green = Inverter status Yellow = AC Input status
Communication Protocol
Proprietary OutBack Multi-drop network using the OutBack HUB.
Interconnecting Cable
Standard CAT 5 PC network cable with RJ45 modular connectors / wired as non-crossover
Maximum Cable Length
The maximum distance that has been tested is 1000 feet of cable in an office / commercial building with success.
Optional PC computer interface
RS232 Opto-Isolated DB9 serial communication port
