Installation Outline
Page 9
6.

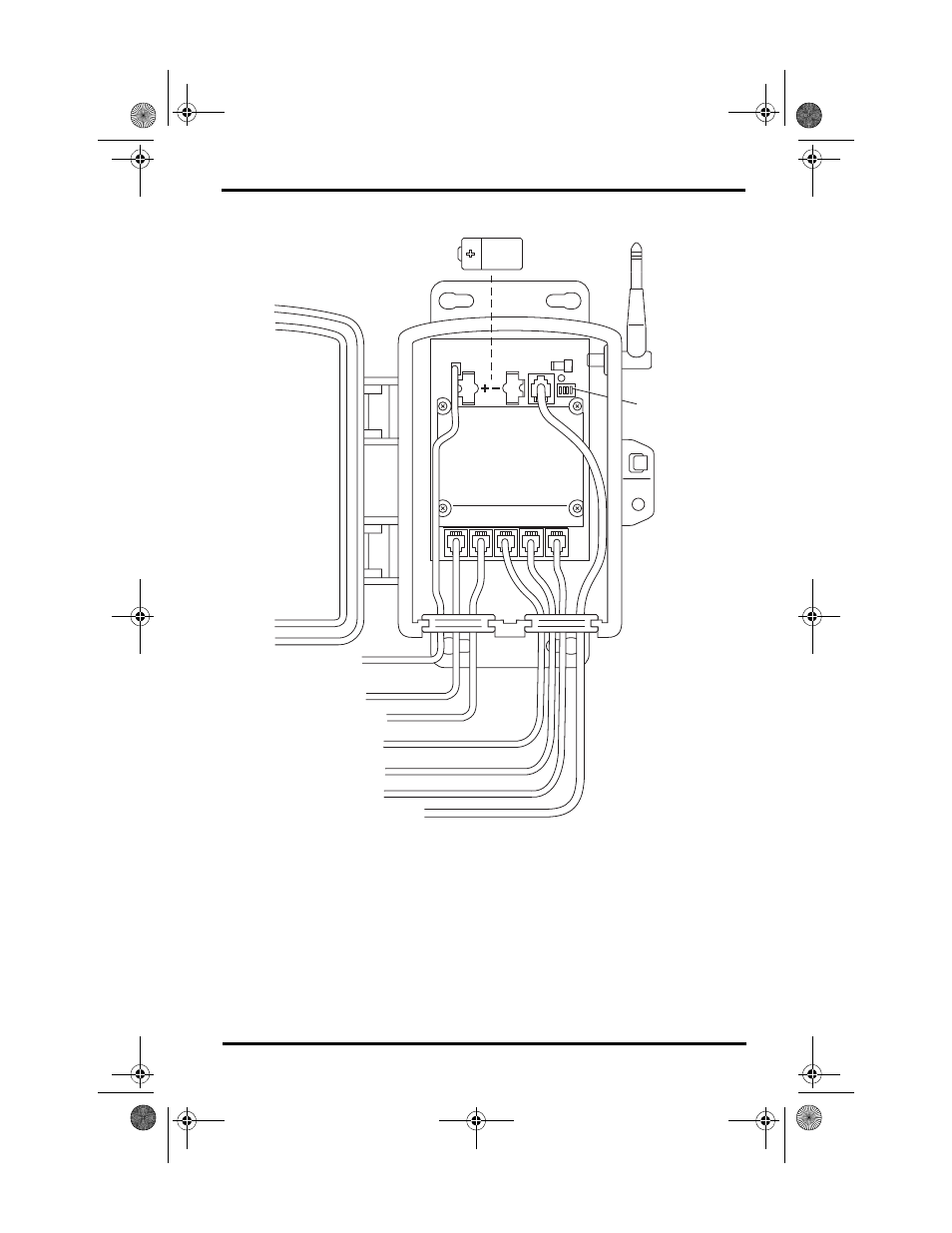

Refer to the ISS SIM Connections illustration and connect only the sensor
cables as shown. You will connect the power cables in the next procedure.
Procedure 8. Power the SIM.
Powering the Cabled ISS SIM
Cabled versions of the ISS receives power from the console via the 100’ (30m)
cable that runs between them.
• Plug the console cable into the SIM connector labeled “CONSOLE”.
UV
SUN RAIN WIND
3-Volt Lithium Battery
(wireless models only)
Temp/Humidity Cable
UV Sensor Cable
Solar Radiation Cable
Rain Collector Cable
Anemometer Cable
SIM Power Cable
(wireless only)
Console Cable (cabled only)
Transmitter
ID Switches
UV
SUN RAIN WIND
TEMP
HUM
ISS2 SPARS RetroKit D011.fm Page 9 Wednesday, April 23, 2003 11:26 AM
