Installation - ISS with External SIM
Procedure 3. Mount the new Temp/Hum module
1.
Remove the Fan from the lower section of the radiation shield.
2.
Remove the old Temp/Hum module from the radiation shield and replace
with the new Temp/Hum module.
3.
Reinstall the fan making sure the sensor cable is set into the cable channel.
Fan Unit
Fan Deflector
Motor Connector
Junction Boar
Temp/Hum
Sensor Cable
Channel
Fan Plat
Temp/Hum
Sensor
Cable

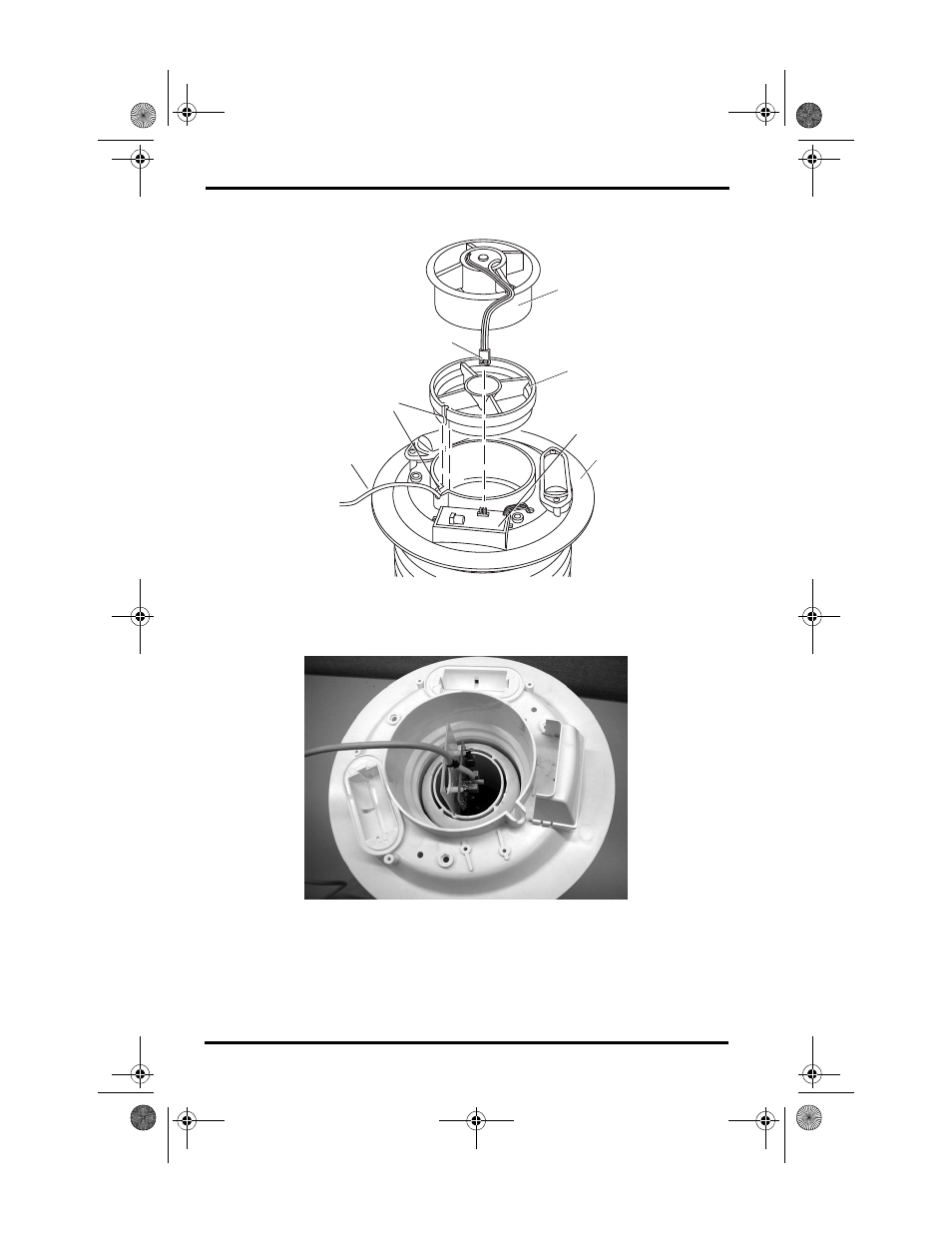

Fan Removal and Installation
Installing the Temp/Hum Module
