Installation - ISS with Internal SIM
3.
Locate the SIM inside the upper section of the radiation shield.
4.
Disconnect the WIND sensor (anemometer) cable.
5.
If you have a cabled station, you will also need to disconnect the Console
cable from the SIM.
6.
You can now remove the ISS from its mounted position. Move it to a safe
place to install the kit components.
Procedure 2. Disconnect all cables from the SIM and remove the
SIM.
The Sensor Interface Module (SIM) consists of a PC board and cover. The SIM
contains the ISS’s sensor and communications electronics.
1.
Unplug all cables from the SIM.
Sensor Interface Cable
Solar Power Cable
(wireless models only)
Sensor Interface Module
(SIM)
3-Volt
Lithium Battery
(wireless models only)
Console Cable
(cabled models only)
Transmitter ID Switches
Anemometer
UV Sensor Cable
Solar Radiation Cable
Rain Collector Cable
WIND RAIN
SOLAR
UV
Sensor Interface
Cable
SIM Power Cable
(wireless models only)

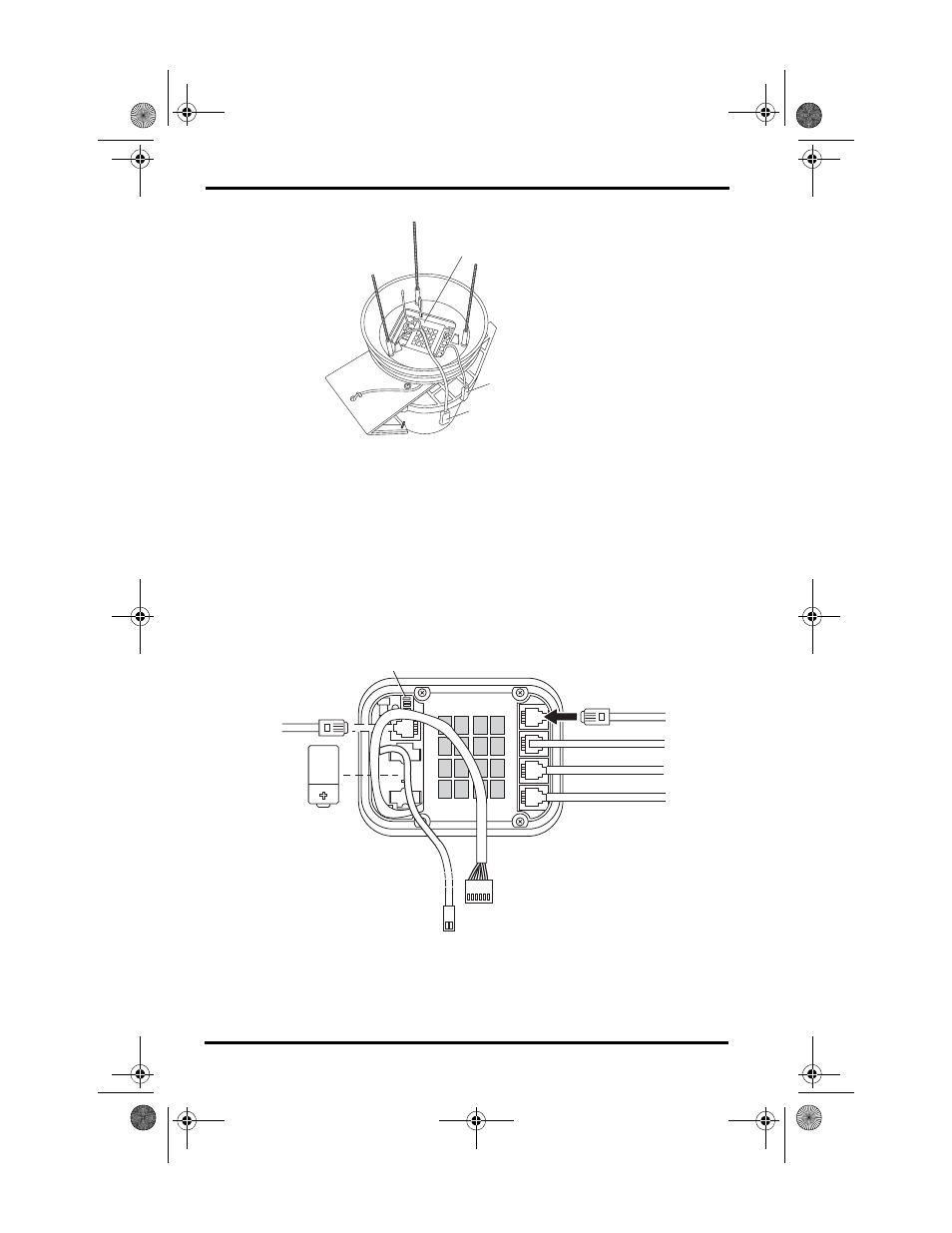

Fan-Aspirated Radiation Shield SIM Cable Connections
