Page 14
Page 14
Installation - ISS with External SIM
3.
Remove the cardboard packing insert and discard.
4.
Remove the three (3) screws connecting the mounting bracket to the radia-
tion shield.
5.
Lift the mounting bracket off of the radiation shield.
Rain Collector
Base
1" Screws (3)
Lock Washers
Flat Washers
Mounting Bracket
with Solar Panel
SOLAR MODELS
Mounting
Bracket
AC MODELS
Sensor
Cable
AC
Power
Cable
Sensor
Cable
SIM
Power
Cable
Radiation Shield

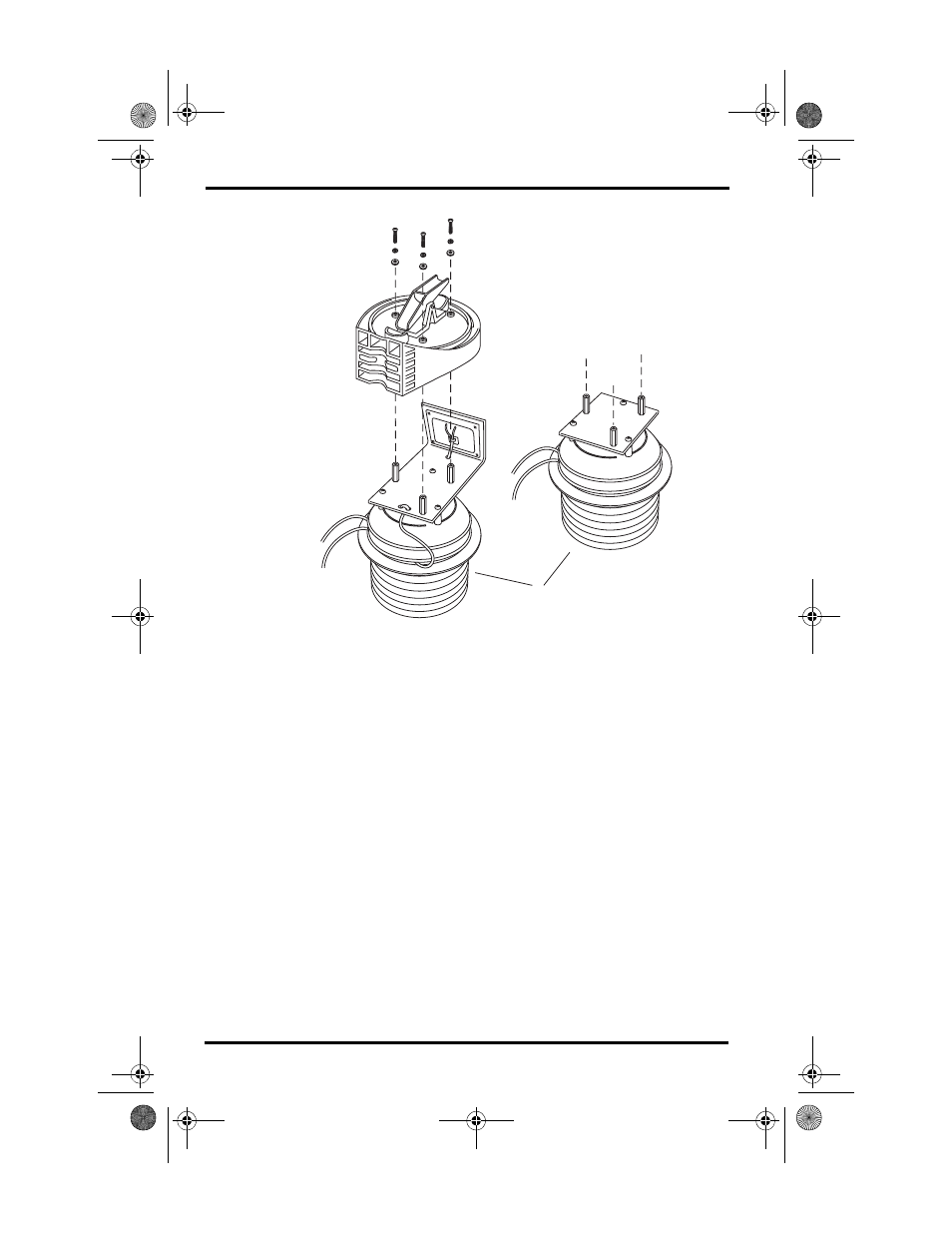

Removing the Rain Collector Base
ISS2 SPARS RetroKit D011.fm Page 14 Wednesday, April 23, 2003 11:26 AM
