Page 6 Installation - ISS with Internal SIM
3. Install the new Temp/Hum module, being sure to set the sensor cable in the
cable channel in the fan plate. The new Temp/Hum module cable will plug
directly into the SIM instead of the junction board.
4. Reinstall the fan and fan deflector.
5. The new SIM power cable has a brown terminal at one end and a white termi-
nal at the other end. Plug the brown terminal of the new SIM power cable into
the junction board connector labeled +VSIM.
Procedure 4. Re-assemble the radiation shield.
1. Line up the threaded rods on the upper section of the radiation shield with the
mounting holes in the lower section.
2. Slide the two sections partially together, leaving enough clearance so you have
access to the junction board.
3. Check the Junction Board connections: fan motor, SIM power and Solar (SOL)
power (wireless models), AC-power adapter (cabled models).

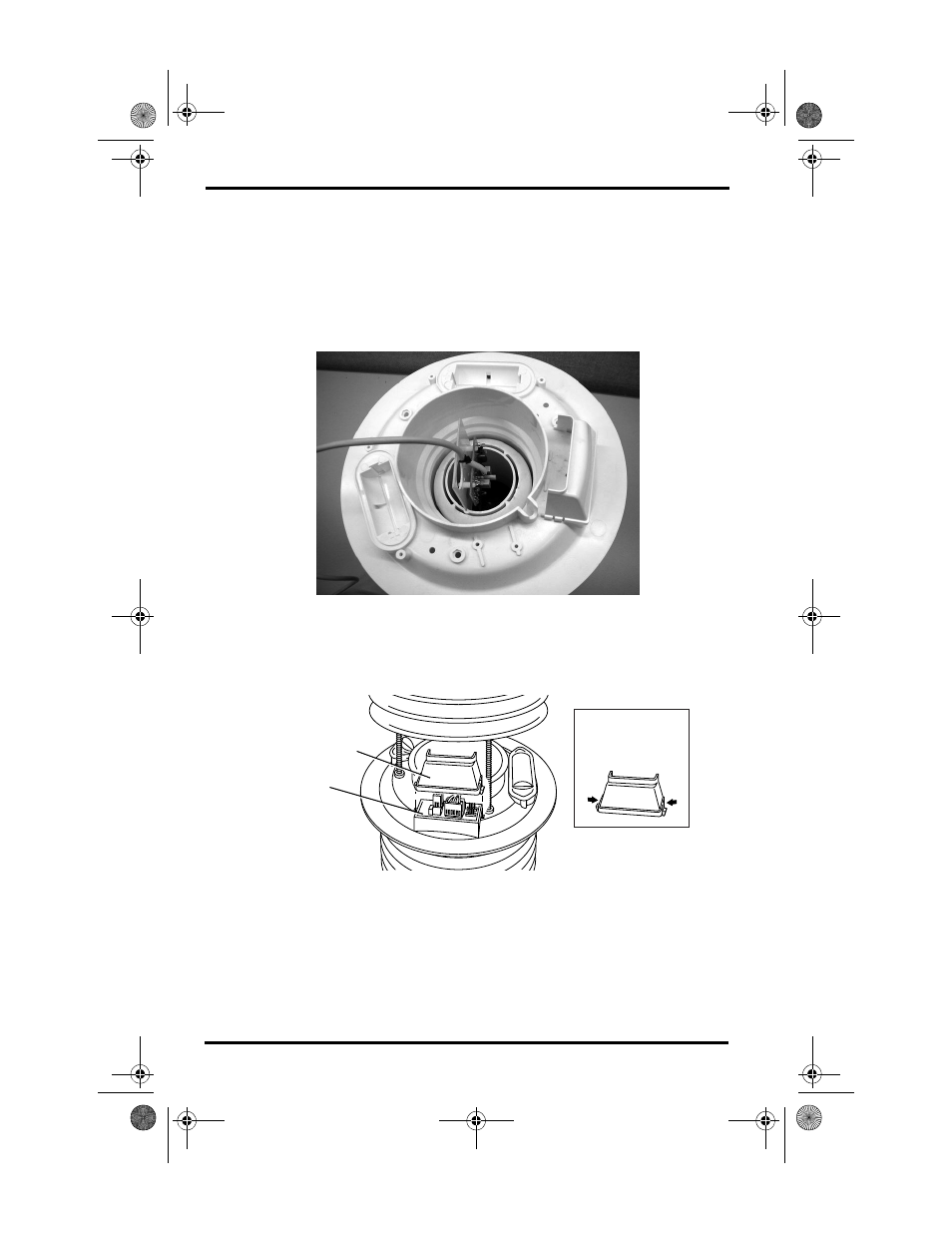

Installing the Temp/Hum Sensor
Junction Board Cover
Junction Board
Press in on Sides
near latches
to Remove Cover
