2-35
2.23 I/O
NOTE
The I/O menu item is displayed as IO when the
LWTS is placed in CLIP ON mode.
Activating the I/O menu item allows for selecting one of three
I/O options as shown in Figure 2-30.

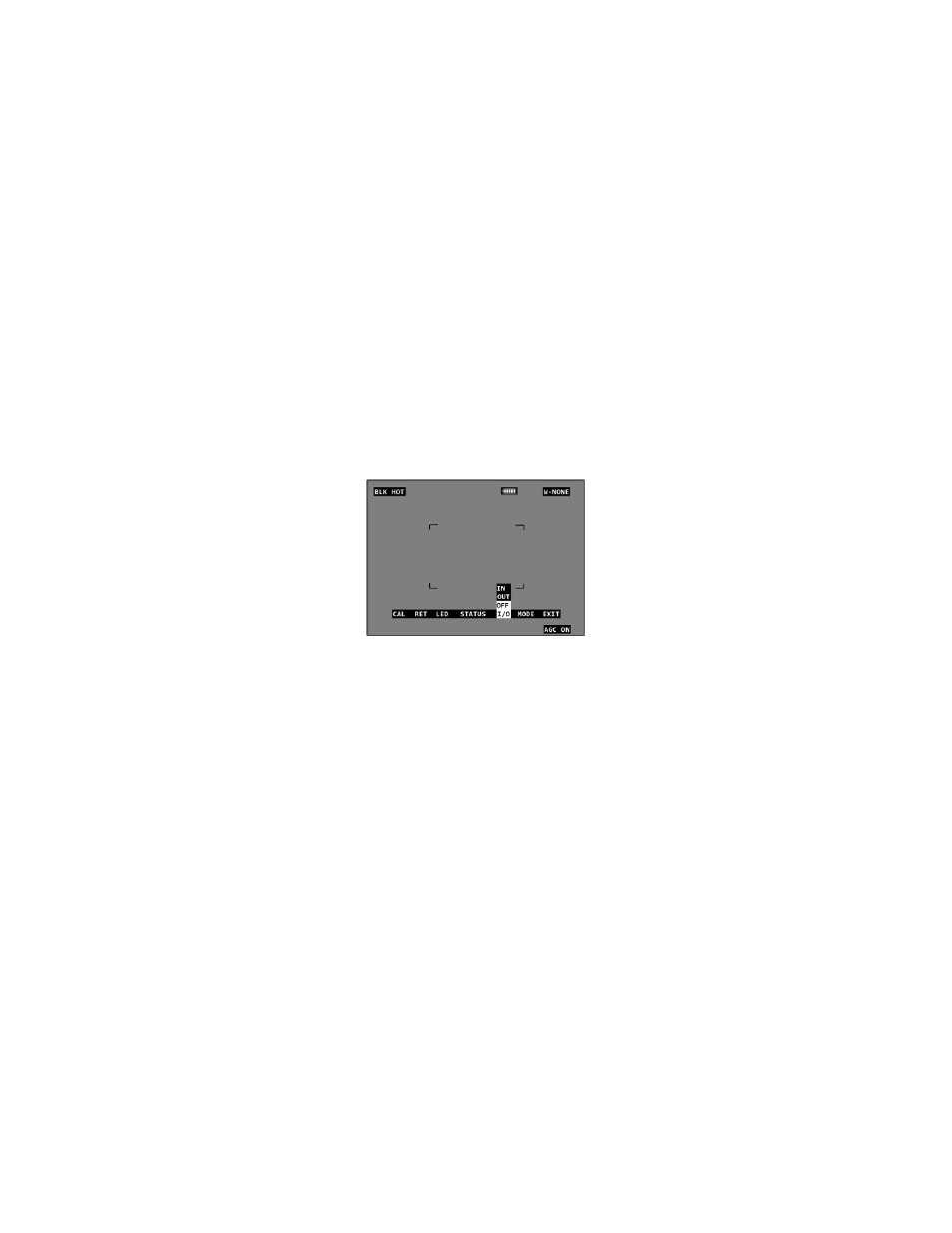

Figure 2-30. I/O Menu Options.
With optionally available cables and equipment, the LWTS is
exporting RS-170 data to an external monitor or viewer, and
importing RS-170 data from a compatible device, via the I/O
jack.
• IN – Allows external RS-170 video from a compatible
device to be viewed in the LWTS eyepiece display.
• OUT – Allows LWTS RS-170 video to be exported to
an external device via the I/O port.
• OFF – Prevents RS-170 video from being imported
or exported.
