2-29
2.20 RETICLE (RET) (Continued)
Aim points and range estimation features of the M136 reticle
are shown in Figure 2-23.

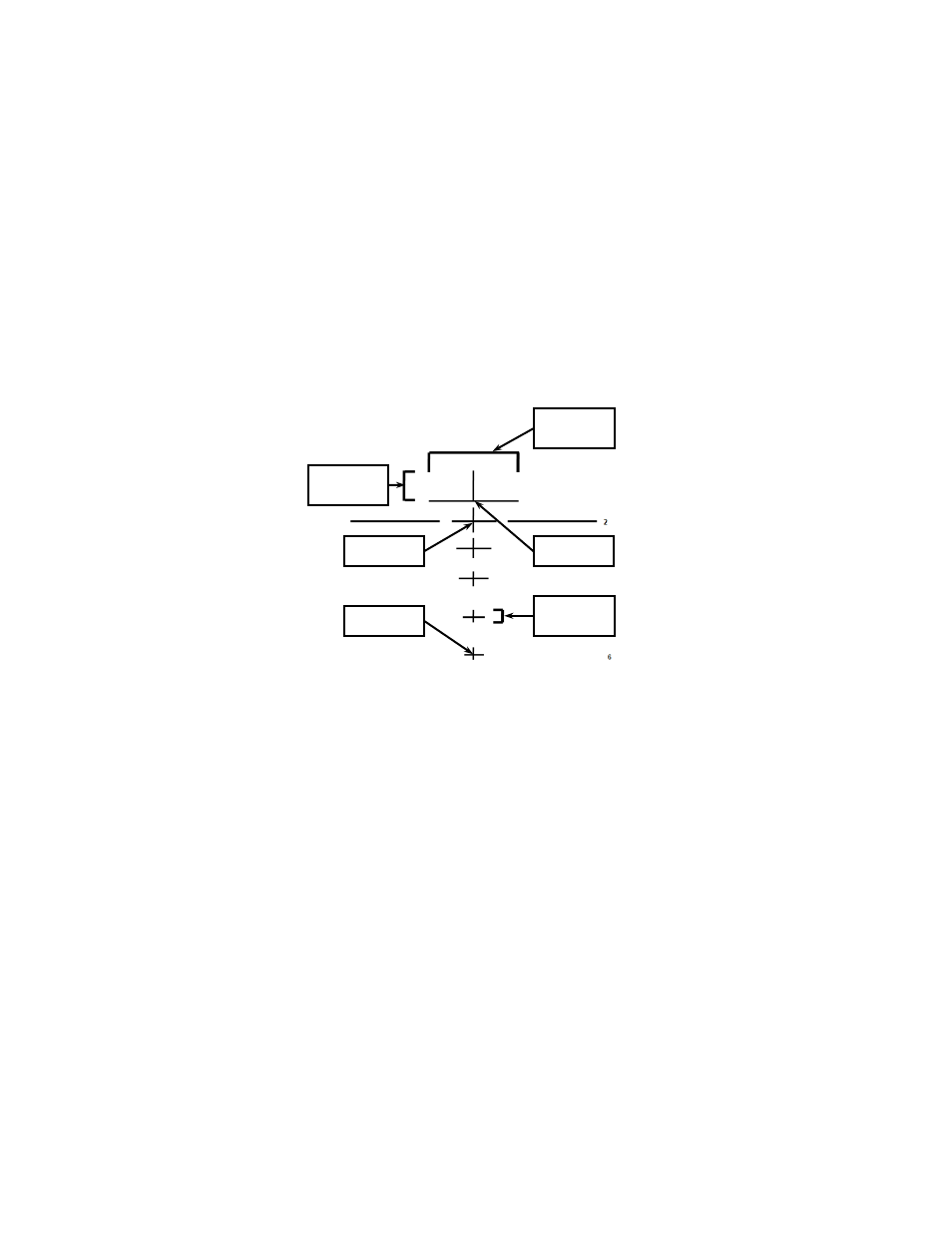

Figure 2-23. Aim Points – M136 Reticle.
HEIGHT OF 5
FOOT MAN AT
100 METERS
200 METER AIM
POINT
100 METER AIM
POINT
600 METER AIM
POINT
HEIGHT OF 5
FOOT MAN AT
500 METERS
WIDTH OF 10
FOOT TANK AT
100 METERS
