EOTech LWTS Light Weapon Thermal Sight - Manual (Page 45)

2-27
2.20 RETICLE (RET) (Continued)

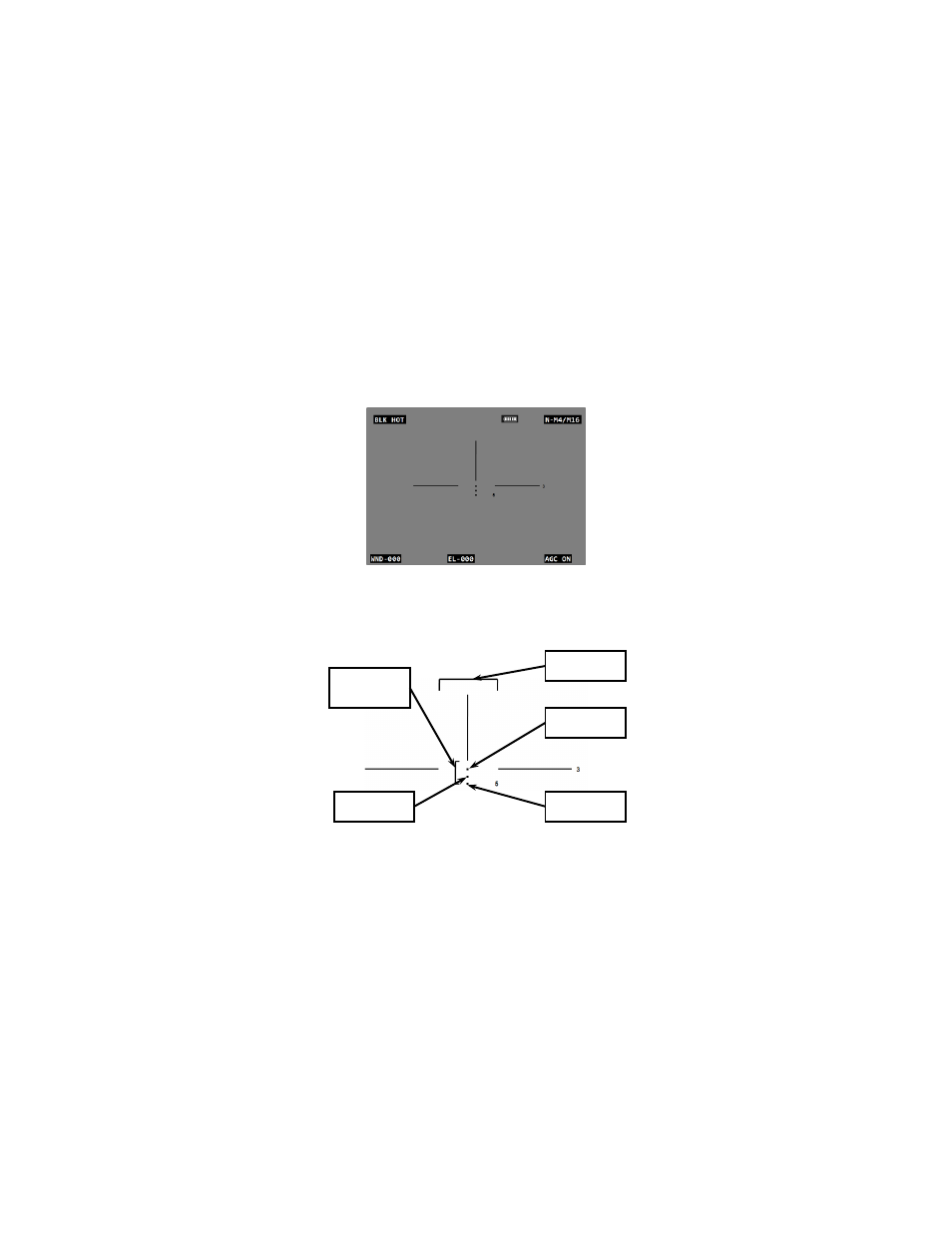

Figure 2-19 shows the M4/M16 reticle when the LWTS is
placed in NFOV.
Figure 2-19. M4/M16 Reticle (NFOV).
Aim points and range estimation features of the M4/M16
reticle (NFOV) are shown in Figure 2-20.
Figure 2-20. Aim Points – M4/M16 Reticle (NFOV).
HEIGHT OF 5
FOOT MAN AT
300 METERS
300 METER AIM
POINT
500 METER AIM
POINT
400 METER AIM
POINT
WIDTH OF MAN
AT 25 METERS
