2.20 RETICLE (RET) (Continued)
The stadiametric scale is used for range estimation purposes
from 100 to 1,000m. The vertical axis is designed to show
the width of a 10 foot tank at various range intervals. The
horizontal axis is designed to show the height of a 5 foot
man at various range intervals.

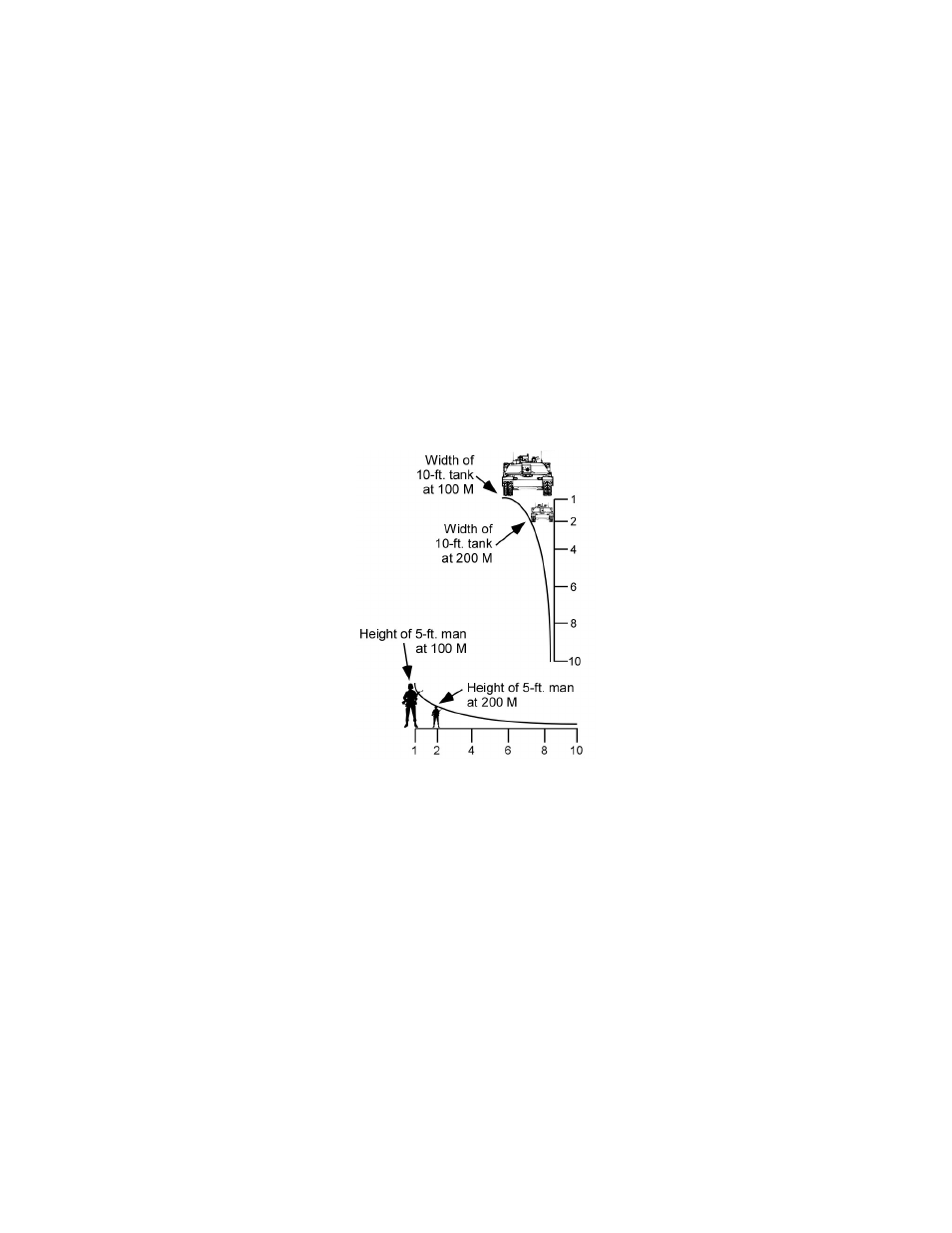

Figure 2-28. Range Estimation – Stadiametric Scales.
