2.20 RETICLE (RET) (Continued)

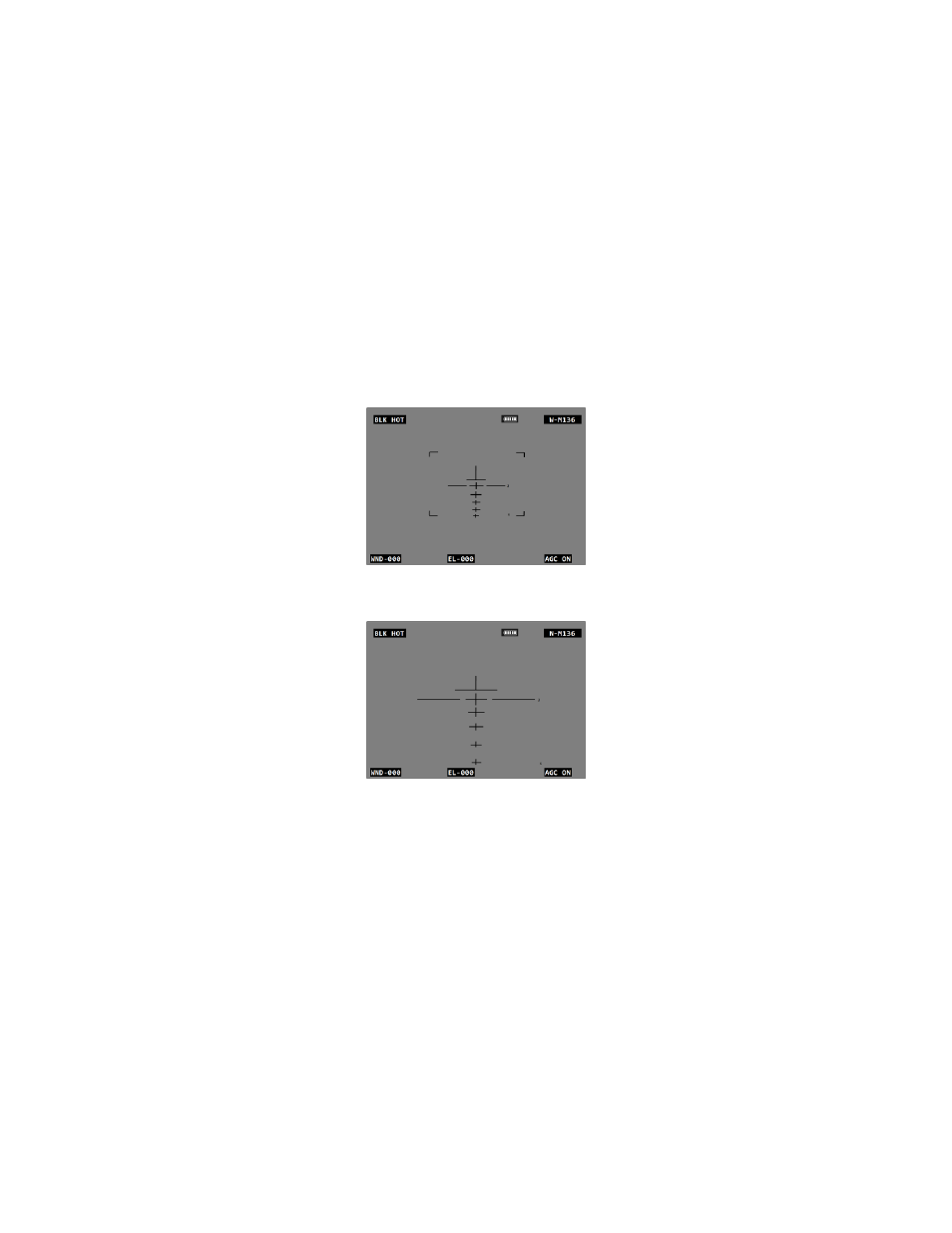

Figures 2-21 and 2-22 show the M136 reticle in WFOV and

NFOV.

Figure 2-21. M136 Reticle (WFOV).

Figure 2-22. M136 Reticle (NFOV).
