2.20 RETICLE (RET) (Continued)

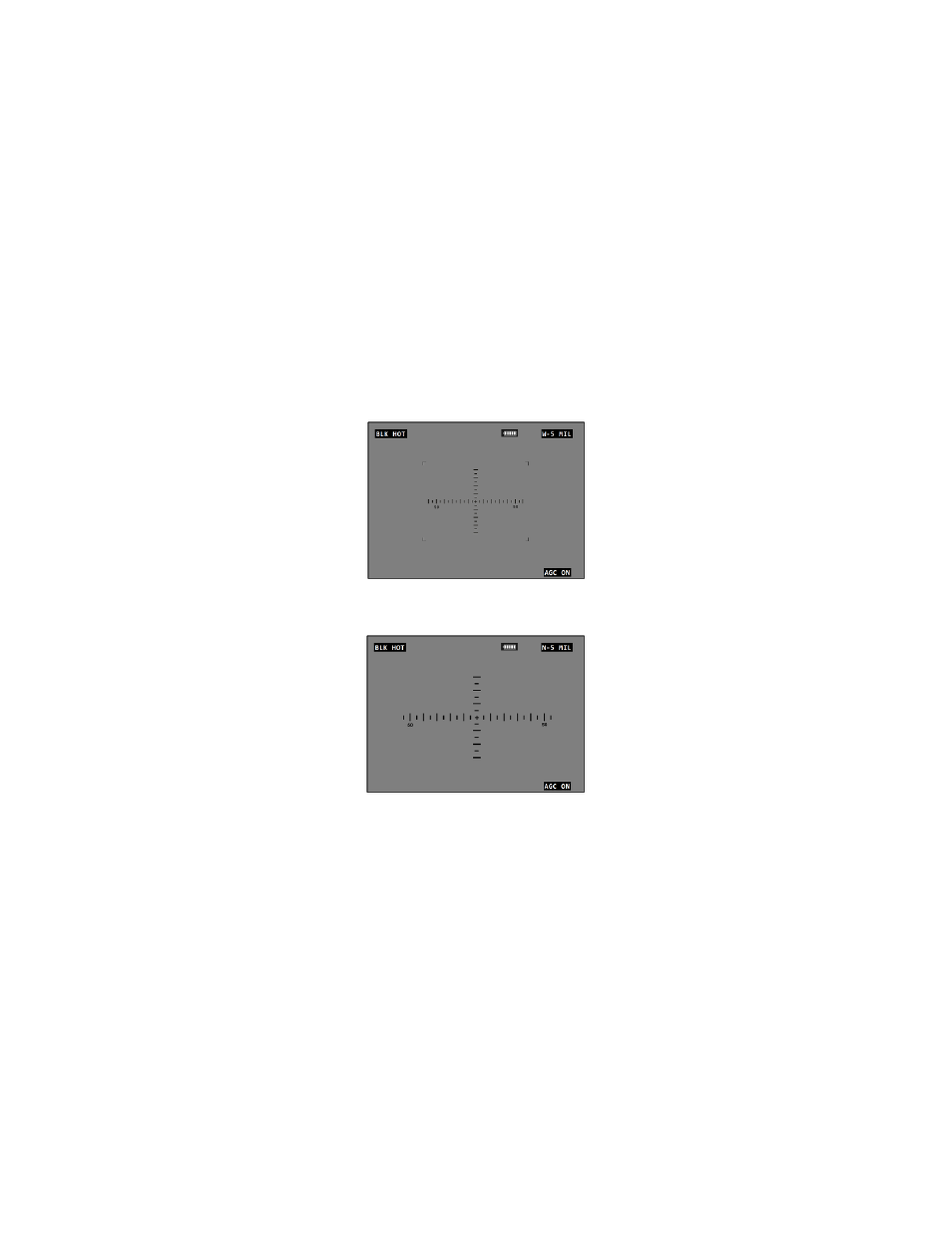

Figures 2-24 and 2-25 show the 5 MIL reticle in WFOV and

NFOV. Each graduated mark in the reticles shown below

equates to 5 mils.

Figure 2-24. 5 MIL Reticle (WFOV).

Figure 2-25. 5 MIL Reticle (NFOV).
