EOTech LWTS Light Weapon Thermal Sight - Manual (Page 22)

2-4
2.3 STAND-ALONE MOUNTING INSTRUCTIONS
Mounting Bracket
The LWTS is equipped with a throw-lever mounting bracket
that is designed for direct attachment to weapons with a
MIL-STD-1913 rail.

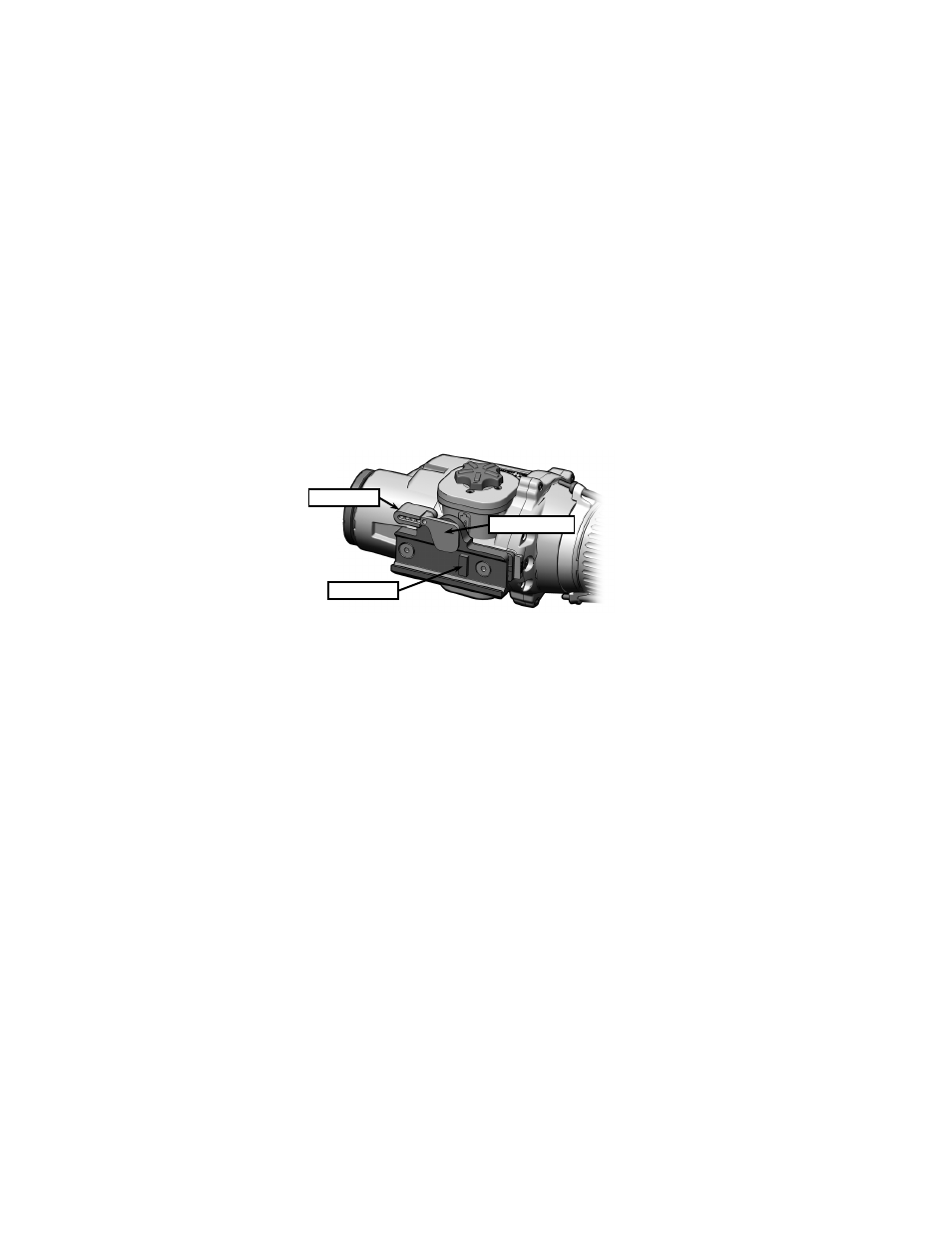

Figure 2-2. Throw-Lever Mounting Bracket.
Mounting Procedures
The following procedures are used when mounting the
LWTS to a weapon in a stand-alone configuration (not in-line
with a day optic).
WARNING
Be sure the weapon is CLEAR and SAFE before
proceeding.
RECOIL LUG
THROW-LEVER
LEVER LOCK
