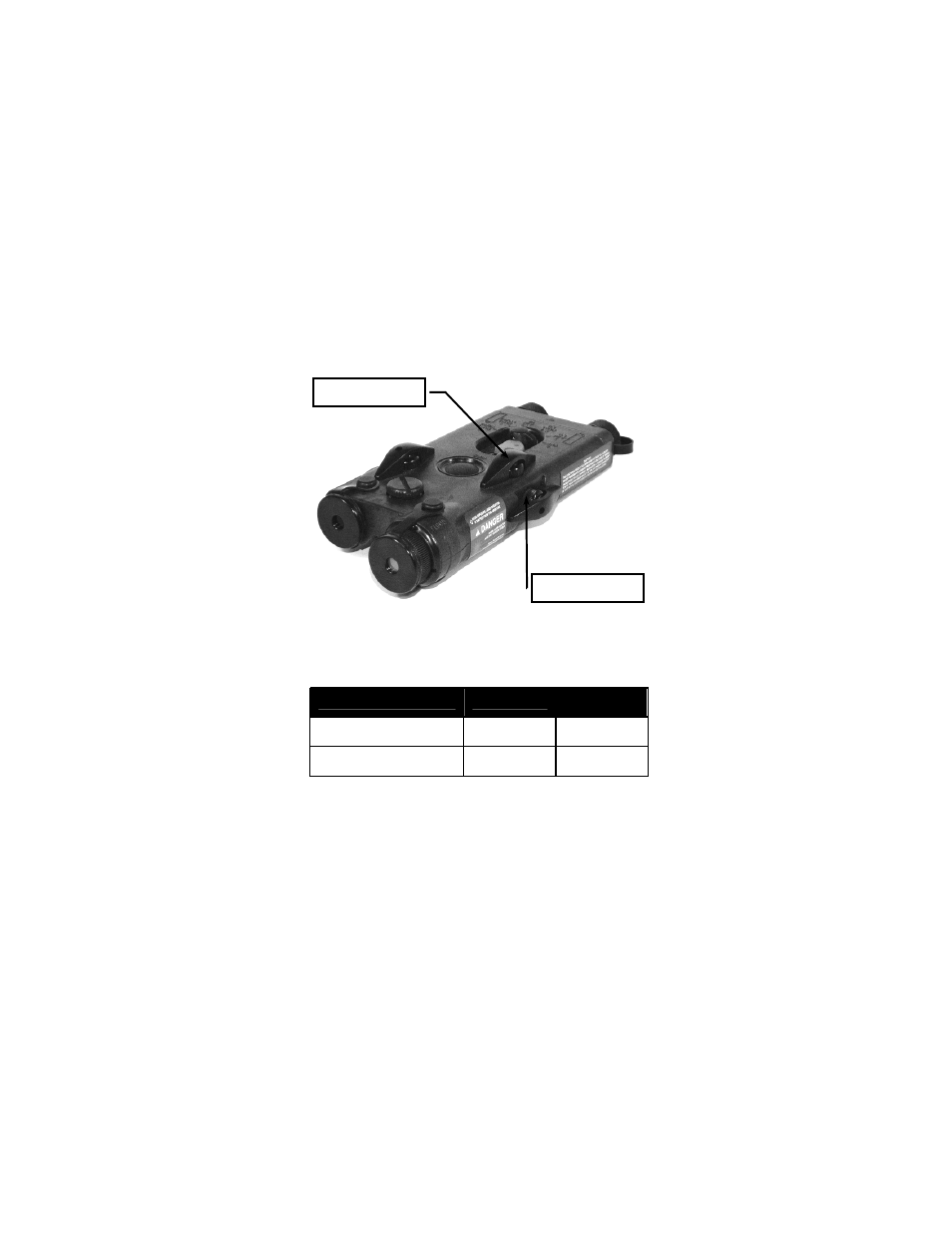

Figure 2-26 Illuminator Adjusters (Top Mounted)
Table 2-4 Beam Movement for the IR Illuminator
(Top Mounted)
Adjuster
Rotation
Beam
Movement
Top Adjuster
Elevation
CW
CCW
Down
Up
Side Adjuster
Windage
CW
CCW
Right
Left
SIDE ADJUSTER
TOP ADJUSTER
