2-14

c. Mount the AN/PEQ-2A to the Rail Grabber Bracket

as shown in Figure 2-8. Turn the thumbscrew
clockwise to tighten. Use a screwdriver or similar
tool in the slot of the thumbscrew to fully secure the
AN/PEQ-2A to the Rail Grabber Bracket.

d. Install the Remote Cable Switch in a convenient

location (see paragraph 2.5.3).

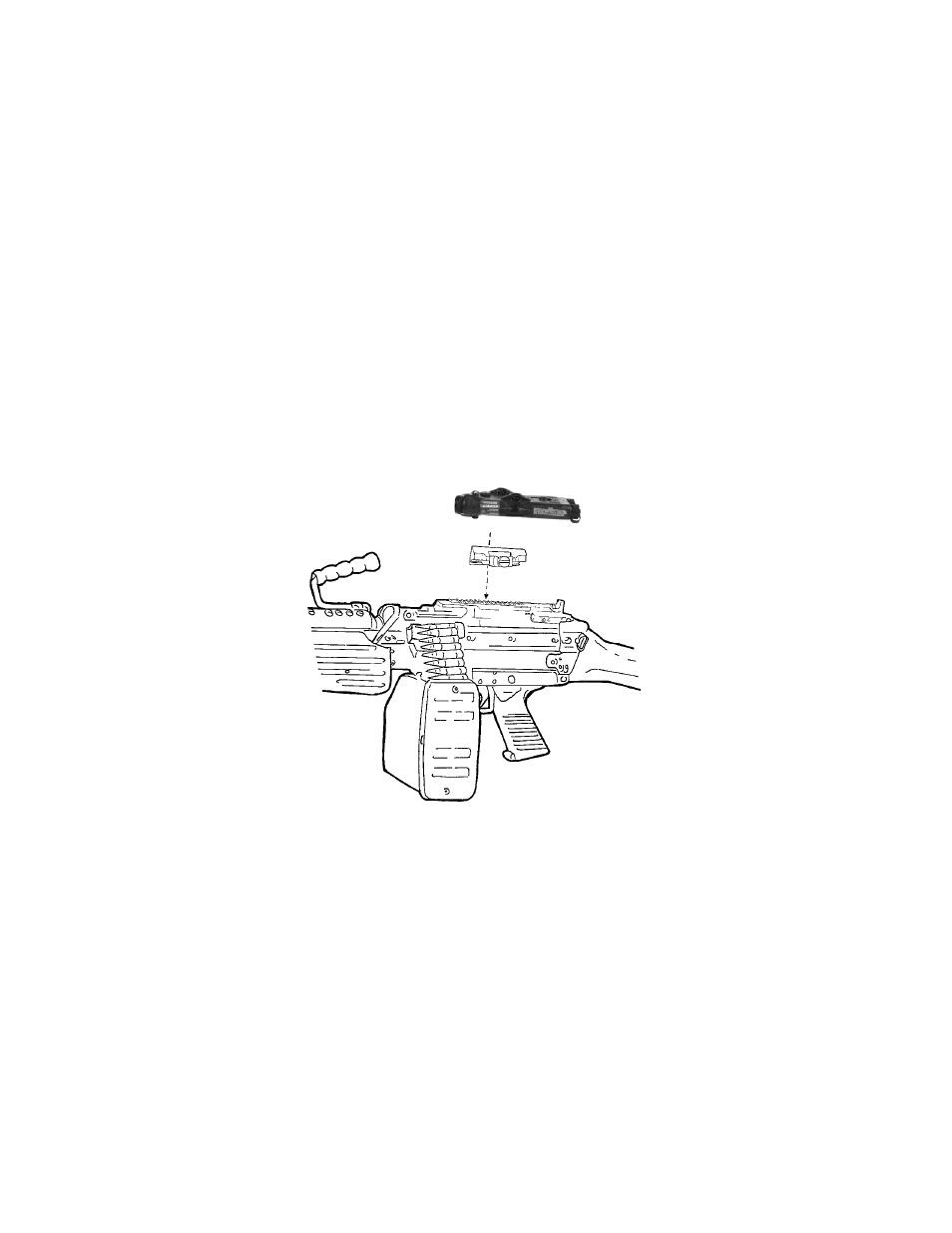

Figure 2-8 M249 SAW Feed Tray Cover Rail Using

Insight Rail Grabber Bracket
