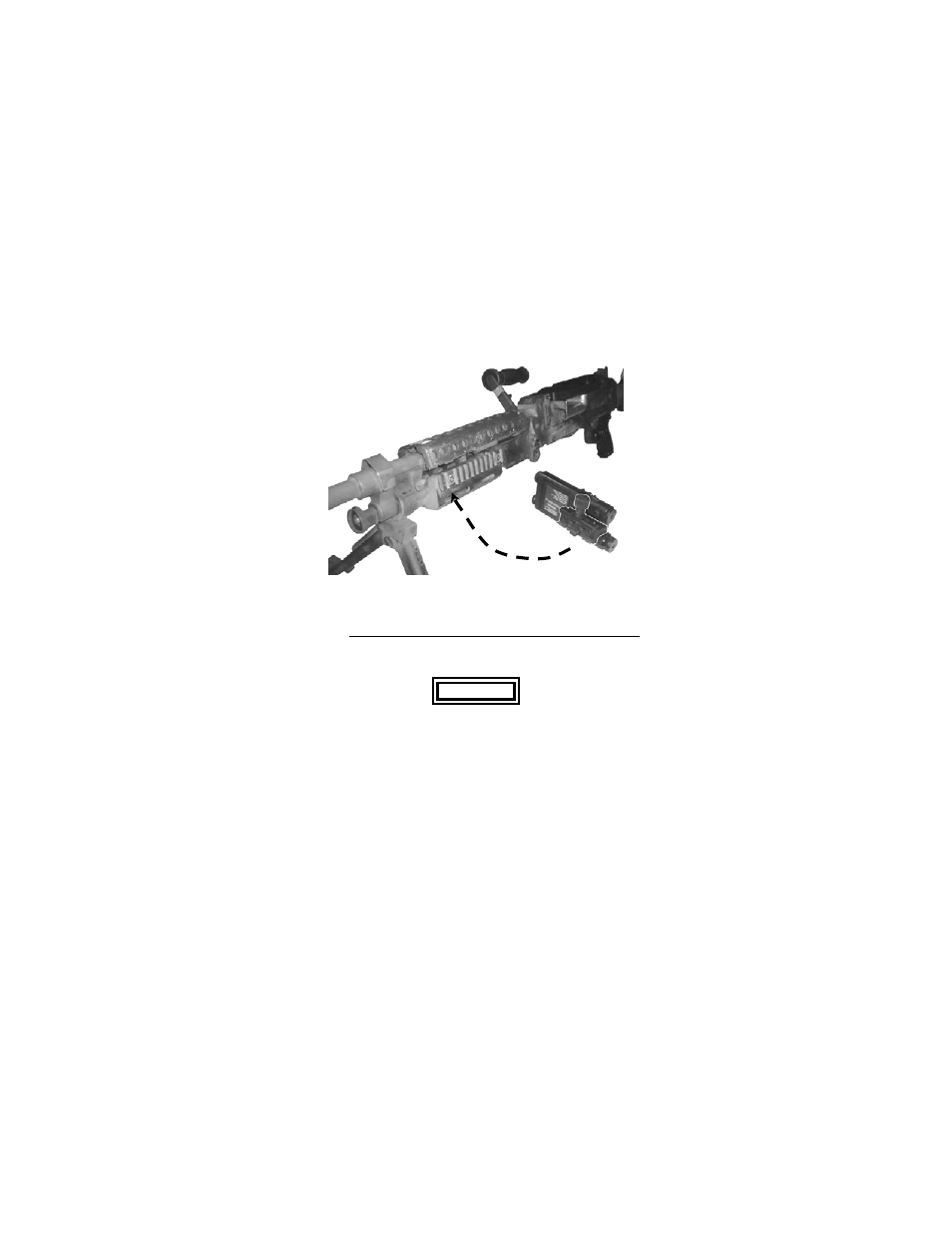

Figure 2-17 M240B/G Forward Rails Using Picatinny Rail

Grabber Bracket

2.3.14 M2 Machine Gun Using AN/TVS-5 Mounting Bracket.
The AN/PEQ-2A may be mounted on the M2 Machine Gun
using the AN/TVS-5 Mounting Bracket and Bracket Adapter.

WARNING

Be sure the weapon is CLEAR and SAFE before
proceeding.

NOTE

Failure to fully tighten the Mounting Bracket,
Bracket Adapter or AN/PEQ-2A thumbscrew may
cause zero retention problems.

a. Release the catch at the left side of the top cover

and raise the cover to the UP position.
